PROGRAM DISTRIBUTOR
5 PO-6106

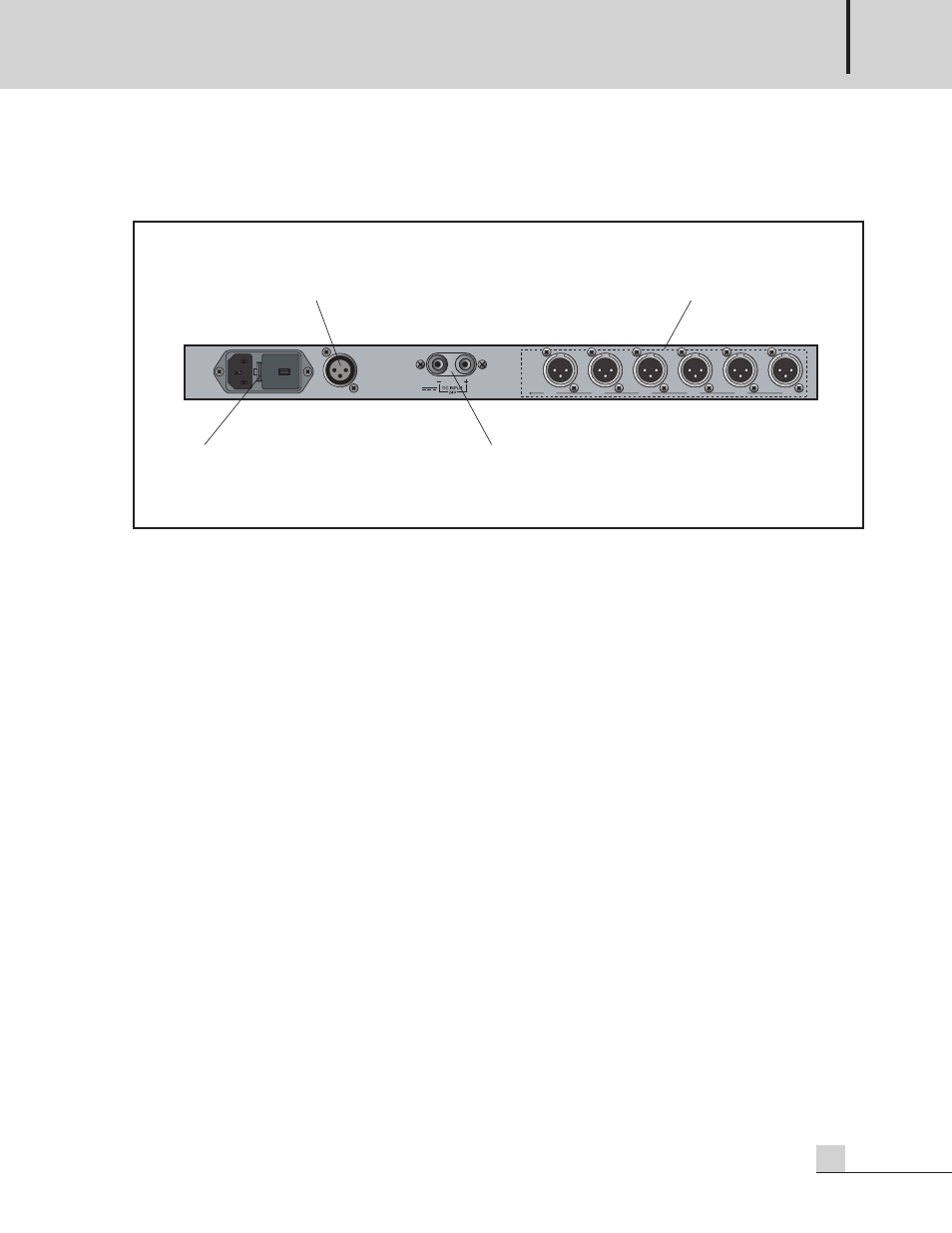

Rear Panel Rear Panel
1. LINE INPUT
Line-level input on balanced XLR connector.
2. LINE OUTPUTS 1-6
Line-level outputs on balanced XLR connector.
3. AC POWER INPUT
Connect a standard three-pin AC cable to this connector.
4. DC POWER INPUT
These terminals are provided for the connection of DC battery power. Connect a 24V DC battery source to
these terminals. Make certain the red terminal is connected to the battery’s positive (+) side, and the black
terminal to the battery’s negative (-) side.
INPUT
1 2
CH 1 OUTPUT CH 2 CH 3 CH 4 CH 5 CH 6
4 3
