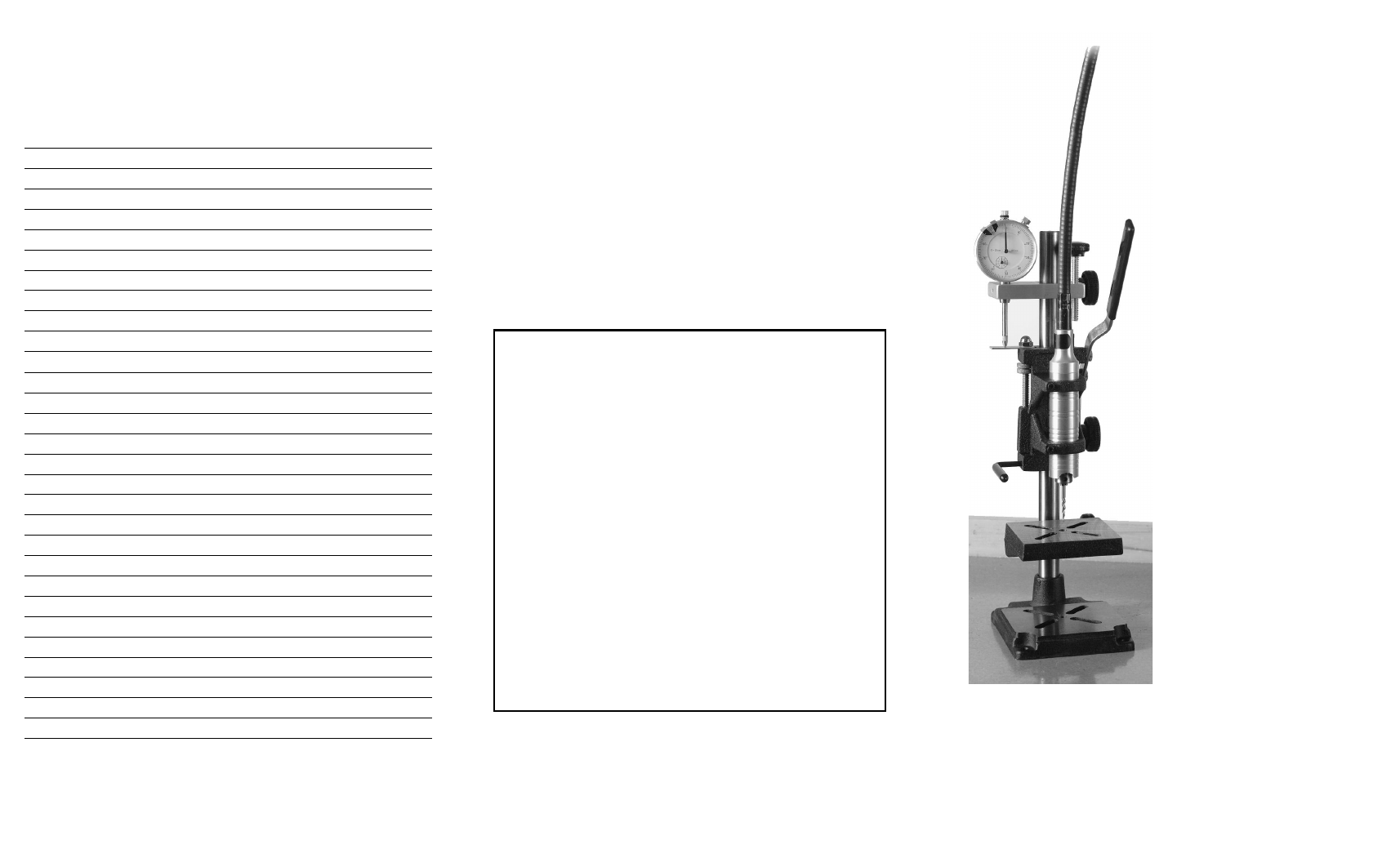

Foredom P-DP39 - Manual

P-DP39
Drill
Press
OWNER ’ S
MANUAL
For Your Own Safety:
Always wear eye protection.
Read this Owner’s Manual
before operating your Foredom tool.
FOREDOM ®
PARTS LIST
Item Description Part No. Price Ea.
1 Slotted Set Screw UA11029 $ .20
– Spring (not shown) DP10612 .75
3 Lock Nut DP10614 .95
4 Threaded Rod DP10613 7.00
– Knob Spacer (not shown) UA11021 1.05
6 Machine Head DP10603WM 35.00
7 Post UA11030 6.55
– Flat Point Socket Set Screw (not shown) UA11027 .20
9 Machine Base DP10618WM 35.00
10 Adjustable Table DP10602 20.00
11 Adjusting Knob with Spacer DP10611/DP10620 2.50
12 Cap Screws - Socket Head DP10610 .15
13 Metric Dial Indicator UA11025 55.00
– Head Locking Pin (not shown) UA11018 1.25
15 Indicator Mounting Bracket UA11023 15.75
16 Indicator Datum Plate UA11017 3.00
17 Locking Arm Grip UA11020 .15
18 Head Locking Arm UA11019 3.25
19 Handle DP10608 2.50
20 Handle Grip DP10609 .60
21 Flat Washer BG1-242 .10
22 Dial Indicator Control Knob UA11024 2.50
23 Acorn Nut DP10617 .40
24 Adjusting Knob UA11022 1.15
25 Handle Link DP10606 1.80
26 Shoulder Screws DP10607 1.70
– Disc Spring (not shown) HP10708 .25
– Hardened Washer (not shown) HP10707 .55
29 Indicator Mounting Locking Knob UA11022 1.15
– Allen Wrench (7/64″) DP10619 .45
FOREDOM ®
Form 1271 n 5/10 Printed in USA
The Foredom Electric Company
Bethel, CT USA 06801
www.foredom.com
LIMITED WARRANTY
The Foredom Electric Company warrants the P-DP39 Drill Press to be free
of defects in material or workmanship for a period of 1 year after purchase.
During the warranty period, the defective product will be repaired or replaced
without charge or, at our option, the purchase price will be refunded. This
warranty does not cover damage caused in transit or by accident, misuse, or
ordinary wear.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE HEREBY
LIMITED IN DURATION TO A PERIOD ENDING ONE YEAR
FROM DATE OF PURCHASE, AND WE WILL NOT BE LIABLE OR
RESPONSIBLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES.
Repair or replacement will be made at our option if the product is returned
post-paid to:
The Foredom Electric Company
16 Stony Hill Road
Bethel, CT USA 06801
All warranty repairs must be done at the factory at the above address. We will not pay any
shipping or transportation charges. This warranty only covers the original purchaser of the
product. Some states do not allow limitations on how long an implied warranty lasts, so
the above limitations may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
Optional Accessories for the P-DP
39
Drill Press:
Micro Chuck (A-MC2) – An accurate, economical adapter chuck, used for
60 to 80 wire gauge drills. The A-MC2 can be held in any 1/8″ or 3/16″ collet.
Hardened Tool Steel Step Drills – Drill point sizes from .5mm to 2.3mm.
Refer to the Foredom Accessory Catalog for a complete listing of sizes. All have
3/32″ diameter shanks.
Chuck Key Handle (HPCK-0) – For H.30 ® and H.30H Handpiece users.
Comes with #0 chuck key in handle.
For More Information
For more information on Foredom machines, handpieces, and accessories,
contact your local dealer. When no local dealer is available, write
The Foredom Electric Company, 16 Stony Hill Road, Bethel, CT 06801 USA,
call 203-792-8622 or email [email protected].
Please retain your proof of purchase for warranty repairs.
