Hochiki YBN-UA - Manual (Page 2)

2-3-0-377/ISS2/AUG03

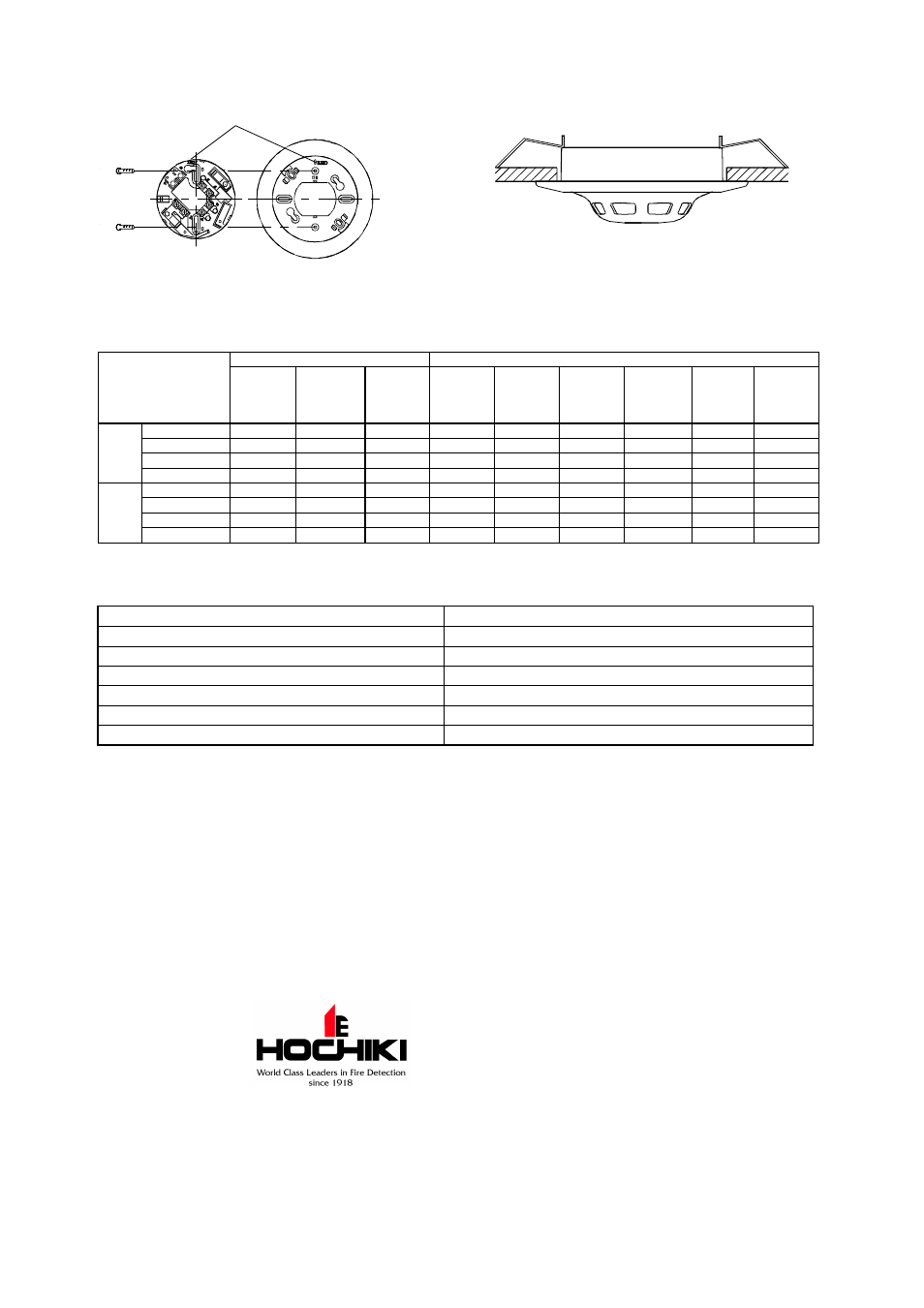

Fig 3 Fig 4
Please find below a list of detectors/sensors and the height they will be from the ceiling when fitted to
the relevant bases.
YBN STYLE BASES YBO STYLE BASES
R/4 &
R/6 R/4SK &
R/6SK
R/3
R/5,
R/6R,
R/6RN &
R/6RS
R/5SK R/5ZD
R/5PA &
R/6PA
R/5E R/12V
ALG-E N/A N/A 26mm N/A N/A N/A N/A N/A N/A
AIE-E N/A N/A 32mm N/A N/A N/A N/A N/A N/A
ATG-E N/A N/A 28mm N/A N/A N/A N/A N/A N/A
ASX
ACA-E N/A N/A 26mm N/A N/A N/A N/A N/A N/A
SLR-E & E3 26mm 26mm N/A 31mm 31mm 31mm 31mm 31mm 31mm
SIJ-E 26mm 26mm N/A 31mm 31mm 31mm 31mm 31mm 31mm
DFJ Range 27mm 27mm N/A 32mm 32mm 32mm 32mm 32mm 32mm
CDX
DCD Range 27mm 27mm N/A 32mm 32mm 32mm 32mm 32mm 32mm
Specification
Operating Temperature Range -10
°
C to +50
°
C
Humidity Range 10% to 95% RH
Dimensions : Diameter 140 mm
Depth 46 mm
Fixing Holes 48mm to 74mm
Drilled Hole Size 115mm
Weight 65g
Precautions
‰ Ensure that the base is installed in accordance with Local Standards or Regulations.
‰ Check that the detector/sensor is compatible with the base type.
‰ Only install in suitable environments, the following should be avoided:-
•
Excessive ambient temperature.
•
Where excessive condensation or moisture is present.
•
Hazardous areas.
‰ Do not use a high voltage tester on the base or detector
‰ Ensure that the base adaptor is securely fixed to the ceiling or other suitable surface.
‰ Ensure that the base terminals are securely fastened.
