2-3-0-1501/ISS1/OCT11

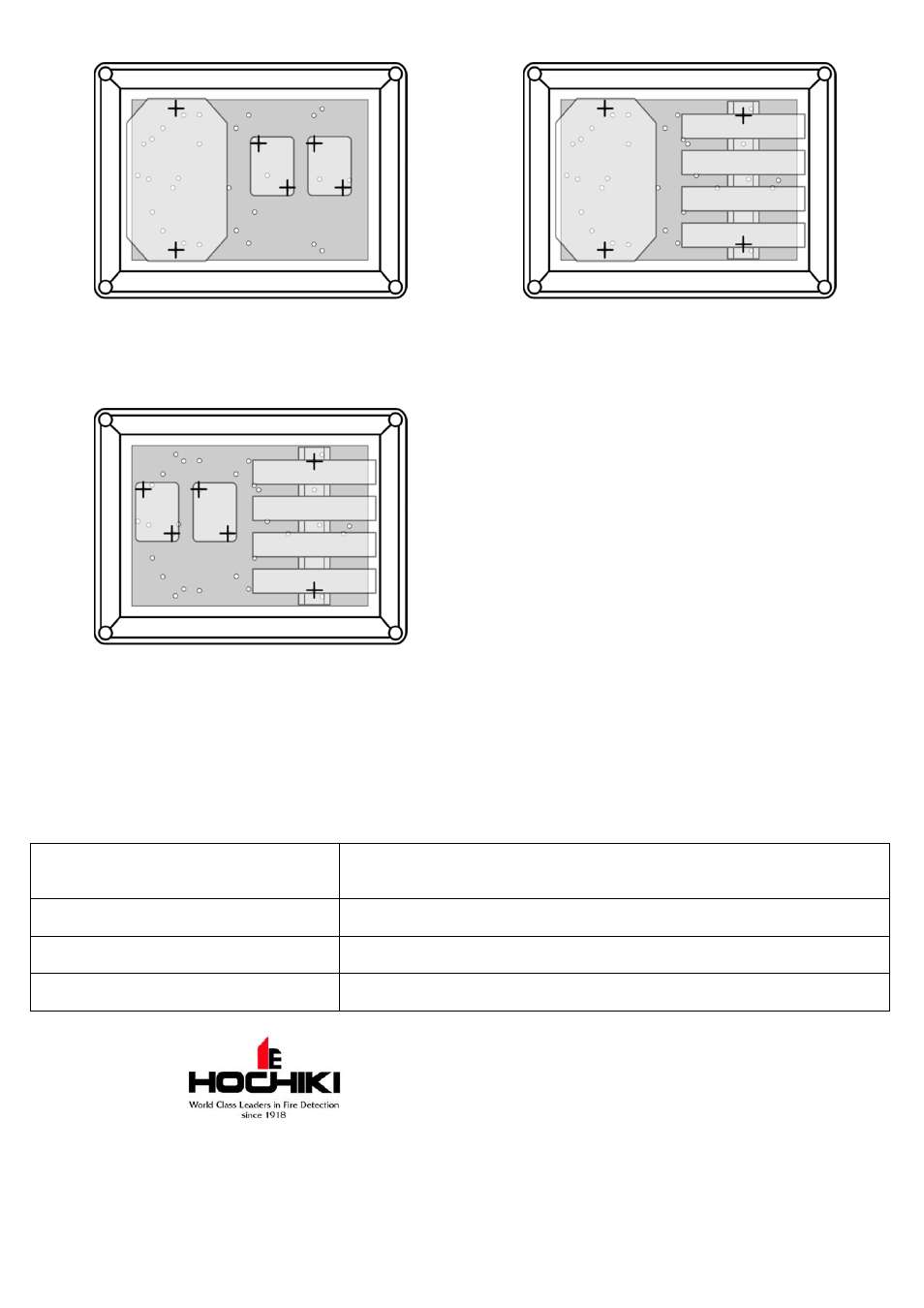

SMB-ADAPTOR with 1 CHQ-ADAPTOR (+ PCB) and 2 ‘mini’
CHQs (for example, CHQ-POM)
SMB-ADAPTOR with 1 CHQ-ADAPTOR (+ PCB),
a DIN Rail and up to 4 CHQ-DIN Modules*
(*SMB-1 Enclosure must be fitted with SMB-2(LID))
THIS CONFIGURATION IS DEPENDENT ON DIN MODULE TYPE AND
NUMBER OF KNOCK-OUTS REQUIRED
SMB-ADAPTOR with 2 ‘mini’ CHQs
(for example, CHQ-POM), a DIN Rail and up to
4 CHQ-DIN Modules*
(*SMB-1 Enclosure must be fitted with SMB-2(LID))
THIS CONFIGURATION IS DEPENDENT ON DIN MODULE TYPE AND
NUMBER OF KNOCK-OUTS REQUIRED
FASTENER INFORMATION:
For SMB-ADAPTOR mounting plate
(always required)
4 x No 6 x 12 mm CTSK Self Tapper (supplied)
For CHQ-ADAPTOR 2 x M4 x 6 mm Pan Head Screws + 2 split washers (supplied)
For ‘mini’ CHQs 2 x M3 x 20 mm CTSK Machine Screws (not supplied)
For DIN Rail 2 x M3 x 6 mm Pan Head Machine Screws + 2 split washers (not supplied)
Hochiki Europe (UK) Ltd. reserves the right to alter the specification of its
products from time to time without notice. Although every effort has been
made to ensure the accuracy of the information contained within this
document it is not warranted or represented by Hochiki Europe (UK) Ltd. to
be a complete and up-to-date description. Please check our web site for the
latest version of this document.
