Wiring

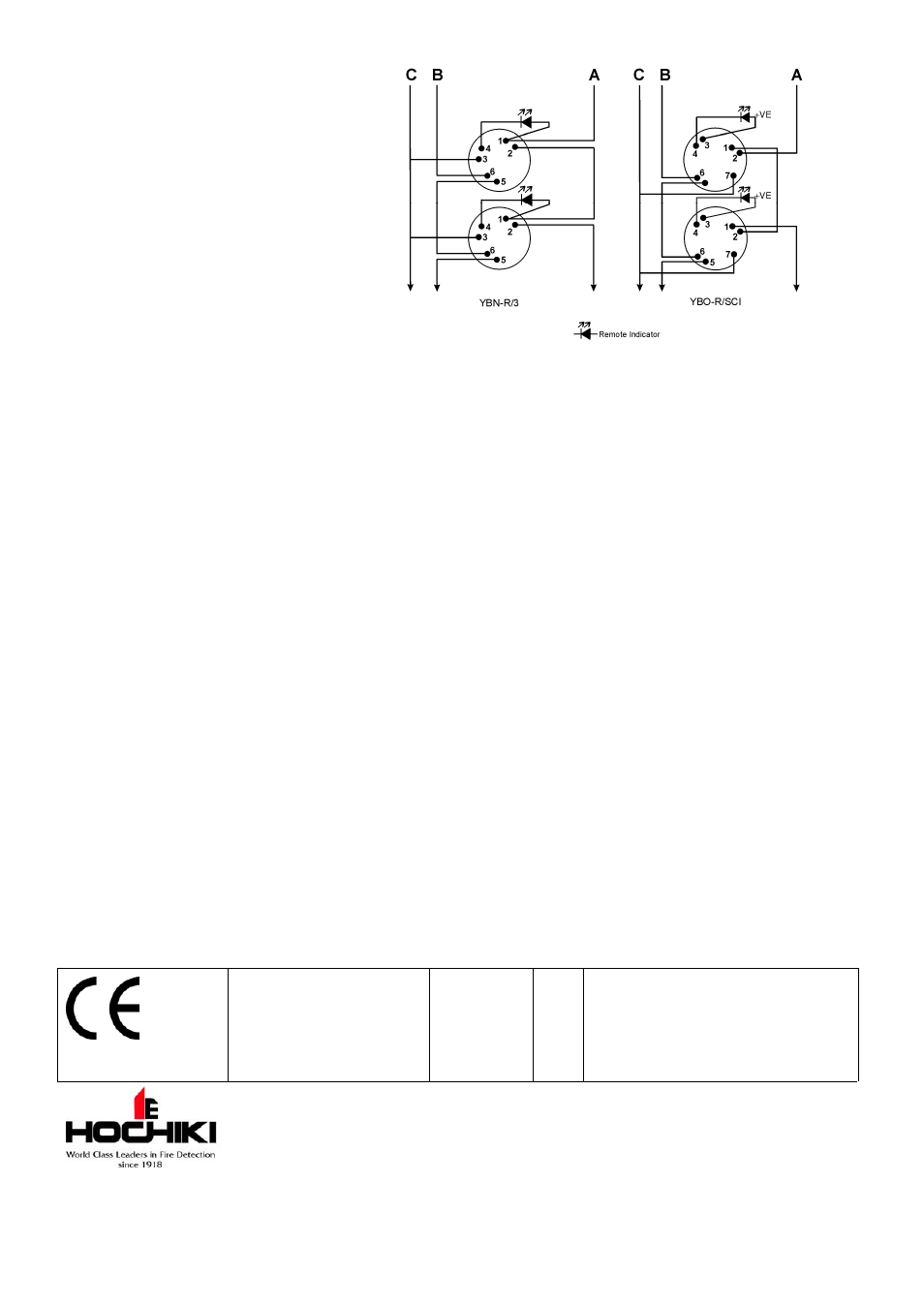

Please refer to the following
diagrams for wiring the Standard
Mounting Base (YBN-R/3) and the
Short-Circuit Isolator Mounting Base
(YBO-R/SCI):
A: Loop (+)
B: Loop (-)
C: Cable Screen (where used)
Operating Voltage: 17 ~ 41 Vd.c.
Protocol specified in TI/006
YBO-BS 0832-CPD-0374 06 EN54-3:2001 Sounders
