Getting Started
This section describes the physical aspects of iFreq.
Introduction
This user’s guide explains how to use iFreq. iFreq enables you to play
your iPod’s music, audiobooks, and podcasts through your vehicle’s
FM radio. It broadcasts on any frequency you choose (between 88.1
and 107.9 MHz) to your vehicle’s FM radio tuned to the same fre-
quency. iFreq will also charge your iPod when it is connected (does
not apply to 3G iPod models).
Requirements
iFreq’s requirements are simple:
• Any iPod with dock connector
• FM tuner (analog or digital)
Technical Specifications
Antenna Built in to cable
Operational Voltage +9–14.4V DC
Current Consumption 45mA maximum
Charging Current for iPod 0.4A maximum
Fuse Type for +12V in 2A glass tube, user-replaceable
Frequency Modulation 88.1 to 107.9 MHz
Tuning Type Digital tuning, tunes in 0.1 MHz steps, last station recall
Stereo Separation 25dB typical
Auto Level Control Built-in to prevent sound distortion
Signal-to-Noise Ratio 46dB (Stereo) 15 kHz LPF typical
Transmitter Range Up to 33 feet (10 m), depending on FM receiver/antenna
Frequency Response 50 Hz to 15 kHz
Tuner Dimensions (WxHxD) 3.15" x 1.26" x 3.19" (8 x 3.2 x 8.1 cm)
Cradle Dimensions (WxHxD) 1.77" x 3.54" x .43" (4.5 x 9 x 1.1 cm)
Cable Length 27.5" (69.8 cm)

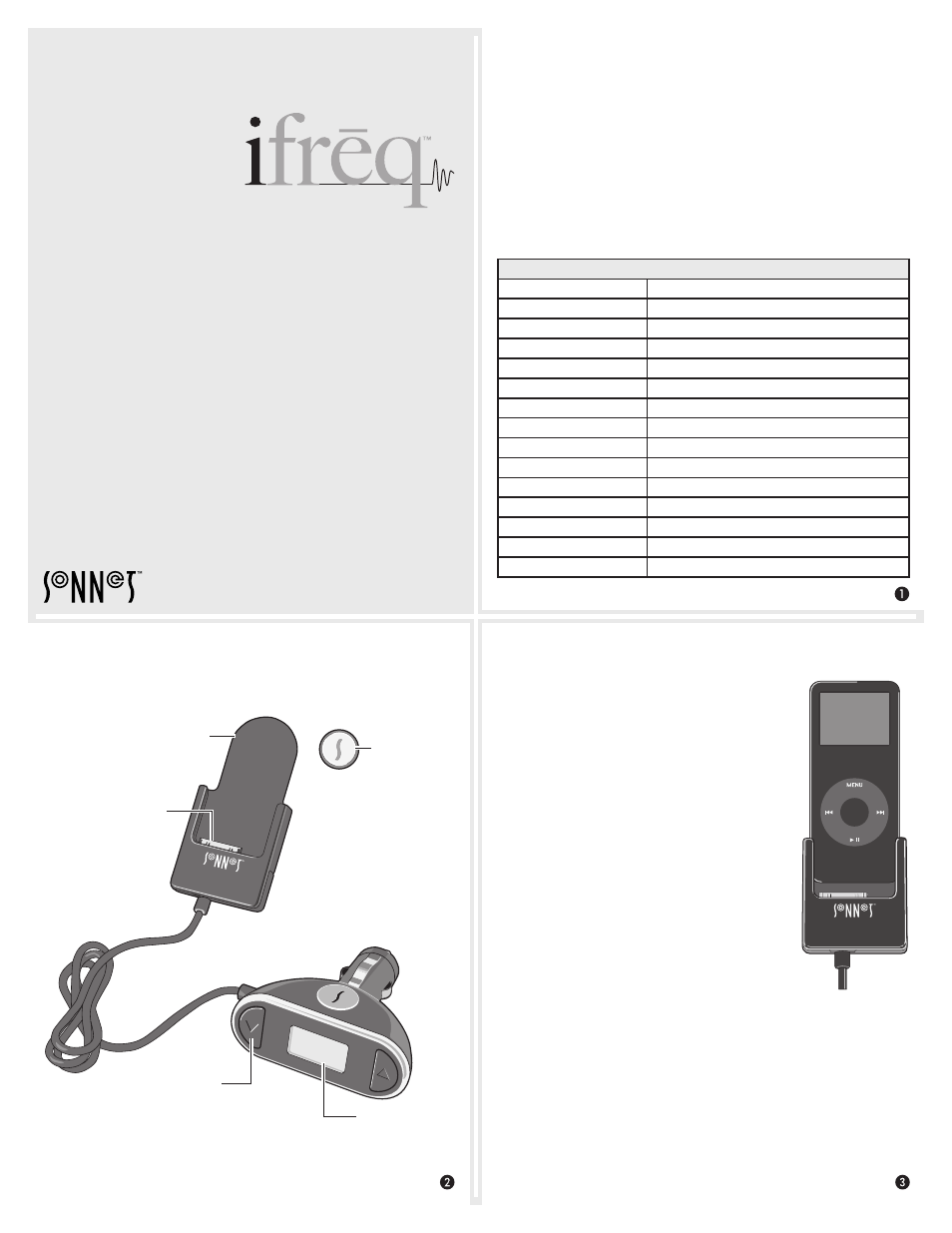

User’s Guide
Dock Connector -
Connects to iPod;
may be removed to
enable use of iFreq
with any other
iPod with a dock
connector
iPod nano cradle - secures dock
connector and holds iPod nano
Up/Down Tuning Buttons -
Press to select a broadcast
frequency
FM
Tr
an
sm
itt
er
+
C
ha
rg
er
+
Cr
ad
le
fo
r iP
od
n
an
o
Magnet - Remove
adhesive backing
to adhere to a flat
surface in your
vehicle; iPod nano
cradle snaps on
and off
Display - Shows the
selected broadcast
frequency
A—Mount the Cradle and Connect Your iPod nano
1. Gently slide your iPod nano into the iPod
nano cradle until its dock connector is firm-
ly seated; if you are using a full size iPod or
an iPod mini, skip to the next section.
2. Decide on a mounting location in your
vehicle for the iPod nano cradle; make sure
you can plug in the iFreq into a car lighter
jack and that its cable won’t interfere with
safe operation of your vehicle. Note where
the magnet will be mounted.
3. Clean the surface that you will attach the
magnet to, remove the backing paper from
the magnet, and press it firmly; make sure
the surface is dry and clean before you apply
the magnet.
4. Snap the cradle on to the magnet.
