Chapter 2 – xMac mini Server 2H Description
➊
➋
➌
➍
➎

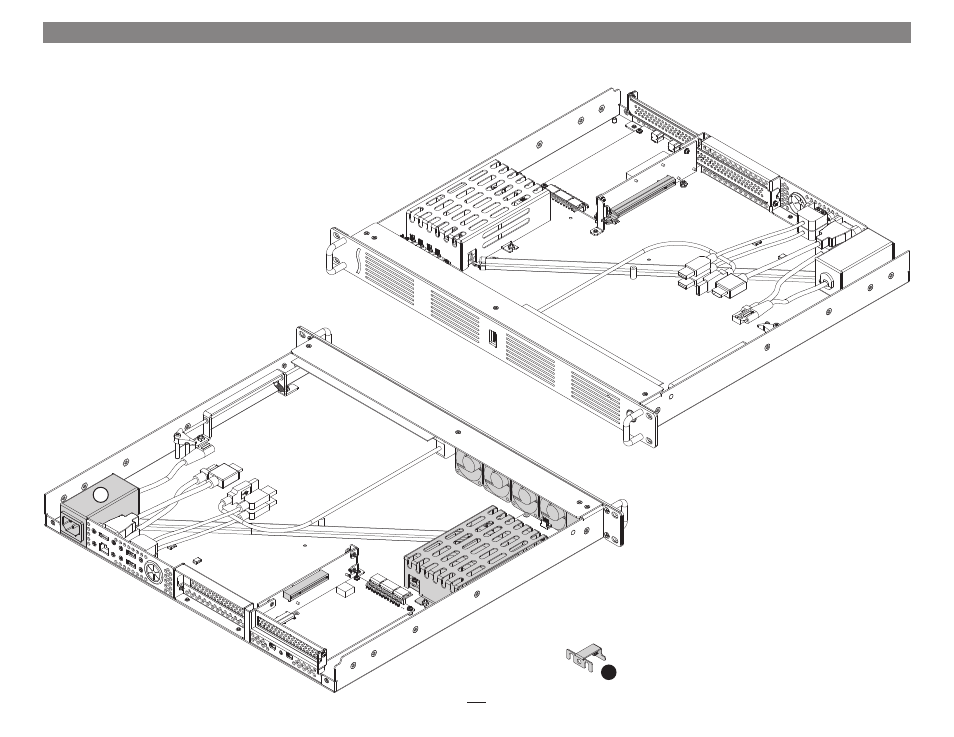

1 – PCIe Slot 1
This slot accepts up to an x16 mechanical, half-length,
full-height, single-width PCIe 2.0 card, and is also
compatible with PCIe 1.1 cards
2 – Power Hub
This hub routes power to the Mac mini and to the xMac
mini Server 2H’s power supply
3 – PCIe Slot 2
This slot accepts an x8 mechanical, half-length, full-height
PCIe 2.0 card, and is also compatible with PCIe 1.1 cards.
4 – Power Supply
This user-replaceable part provides power to the xMac
mini Server 2H’s PCIe slots, fans, and assorted printed
circuit boards
5 – Fan Assembly
This user-replaceable part provides airflow to cool the Mac
mini, installed PCIe cards, and other components inside
the enclosure
A – Thunderbolt Connector Lock
This lock secures Thunderbolt connectors when plugged
into the xMac mini Server’s Thunderbolt ports to prevent
accidental disconnection
