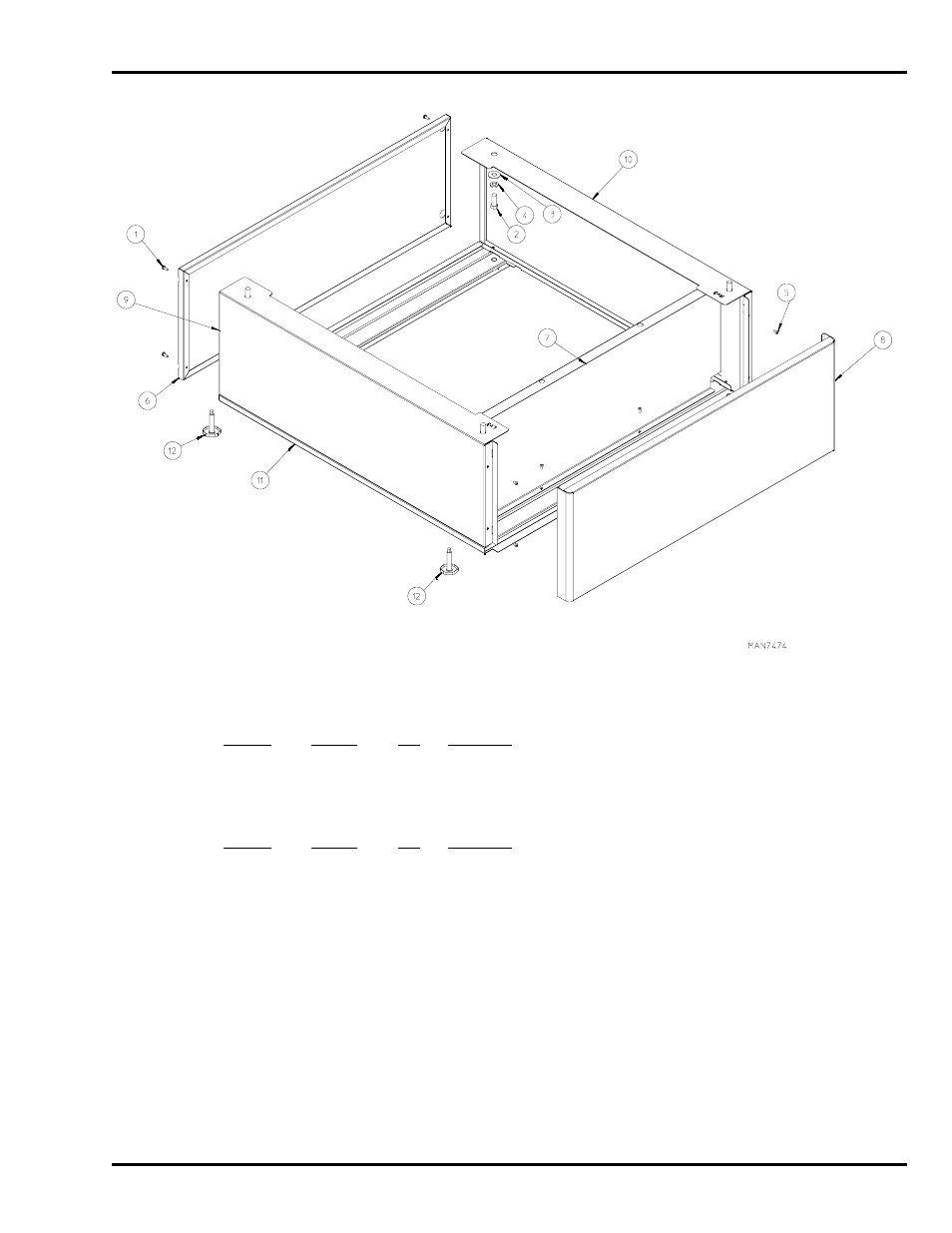

Pedestal Assembly Parts Diagram / List
Illus. No. Part No. Qty. Description
——— 185384* 2 11” Stackable Pedestal Assembly
Bottom pedestal shown. Duplicate parts for top assembly.
Illus. No. Part No. Qty. Description
1 150331 4 #8-18 x 1/2” Pan Head TORX Screw
2 150617 4 3/8”-16 x 1” Hex Head Machine Bolt
3 153004 4 3/8” x 1” O.D. Flat Washer
4 153005 4 3/8” Split Lock Washer
5 154200 10 5/32” Pop Rivet
6 319598* 1 11” Pedestal Back
7 319599* 1 Pedestal Inner Support
8 319600* 1 11” Pedestal Front
9 319601* 1 11” Pedestal Left Side
10 310602* 1 11” Pedestal Right Side
11 851416* 1 Pedestal Base
12 103500 4 Leveling Leg (Lower Pedestal Only)
* Specify color when ordering.
