Page 10
10
American Dryer Corporation
450282 - 5

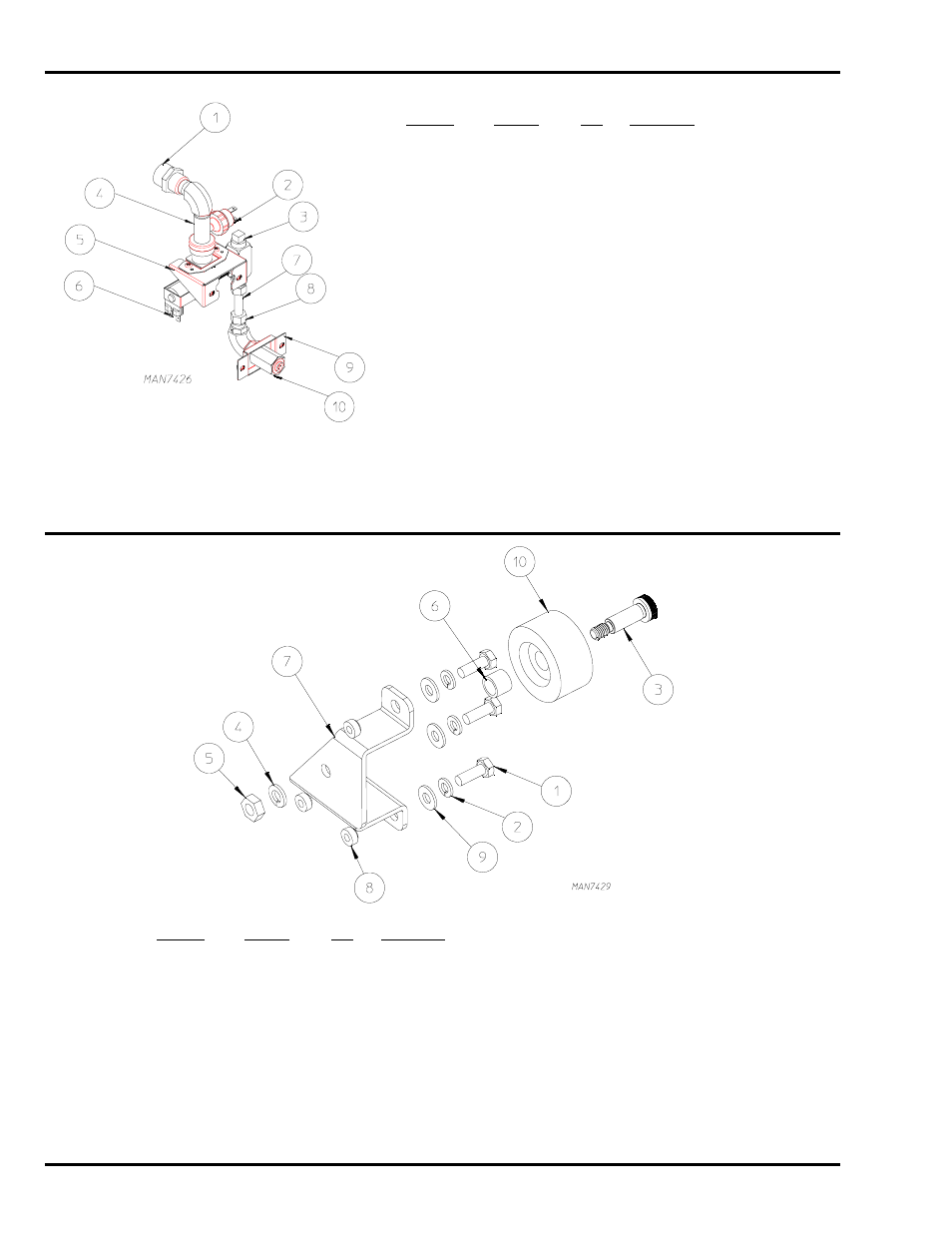

S.A.F.E. System Assembly Parts Diagram / List
Illus. No.
Part No.
Qty.
Description
1
143025
1
3/8” x 3/4” NH Adaptor
(For U.S. and Canada)
143177
1
3/8” x 3/4” B.S.P.T. Adaptor
(For Euro. Countries)
2
136987
1
Pressure Switch
3
143251
1
3/8” Plug
4
143182
1
Brass Tee
5
319231
1
Support Bracket
6
165120
1
Water Valve
7
143099
1
3/8” OD Copper Tubing
8
143208
1
3/8” Brass Connector
9
318422
1
S.A.F.E. Bracket
10
143581
1
Spray Nozzle
Illus. No.
Part No.
Qty.
Description
1
150510
3
1/4-20 x 3/4” Hex Head Machine Bolt
2
153007
3
1/4” Lock Washer
3
154267
1
M10 x 25mm Shoulder Screw
4
153002
1
5/6” Lock Washer
5
154013
1
M8 Hex Nut
6
154284
1
Tumbler Wheel Spacer
7
318233
1
Rear Right Roller Wheel Bracket
318232
1
Rear Left Roller Wheel Bracket … Not Illustrated
318532
1
Front Right Roller Wheel Bracket … Not Illustrated
318531
1
Front Left Roller Wheel Bracket … Not Illustrated
8
153564
3
1/4-20 Clinch Nut
9
153018
3
1/4” Flat Washer
10
180050
1
Wheel
Wheel Assembly Parts Diagram / List
