Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 11
Operator's Manual
Rivers Edge® One-Man Ladder Stands

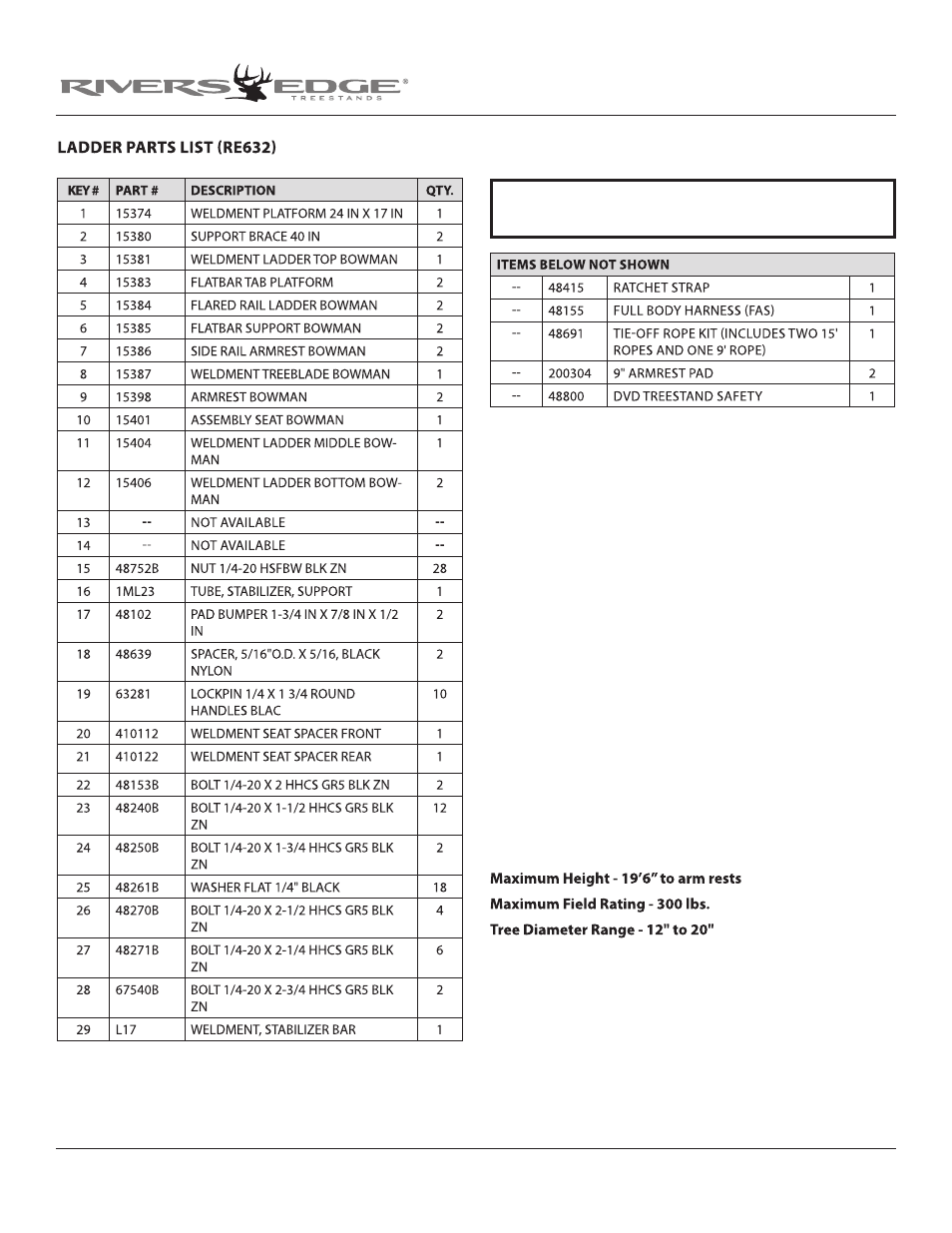

KEY # PART # DESCRIPTION QTY.
1 15374 WELDMENT PLATFORM 24 IN X 17 IN 1
2 15380 SUPPORT BRACE 40 IN 2
3 15381 WELDMENT LADDER TOP BOWMAN 1
4 15383 FLATBAR TAB PLATFORM 2
5 15384 FLARED RAIL LADDER BOWMAN 2
6 15385 FLATBAR SUPPORT BOWMAN 2
7 15386 SIDE RAIL ARMREST BOWMAN 2
8 15387 WELDMENT TREEBLADE BOWMAN 1
9 15398 ARMREST BOWMAN 2
10 15401 ASSEMBLY SEAT BOWMAN 1
11 15404 WELDMENT LADDER MIDDLE BOW-
MAN
1
12 15406 WELDMENT LADDER BOTTOM BOW-
MAN
2
13 -- NOT AVAILABLE --
14 -- NOT AVAILABLE --
15 48752B NUT 1/4-20 HSFBW BLK ZN 28
16 1ML23 TUBE, STABILIZER, SUPPORT 1
17 48102 PAD BUMPER 1-3/4 IN X 7/8 IN X 1/2
IN
2
18 48639 SPACER, 5/16"O.D. X 5/16, BLACK
NYLON
2
19 63281 LOCKPIN 1/4 X 1 3/4 ROUND
HANDLES BLAC
10
20 410112 WELDMENT SEAT SPACER FRONT 1
21 410122 WELDMENT SEAT SPACER REAR 1
22 48153B BOLT 1/4-20 X 2 HHCS GR5 BLK ZN 2
23 48240B BOLT 1/4-20 X 1-1/2 HHCS GR5 BLK
ZN
12
24 48250B BOLT 1/4-20 X 1-3/4 HHCS GR5 BLK
ZN
2
25 48261B WASHER FLAT 1/4" BLACK 18
26 48270B BOLT 1/4-20 X 2-1/2 HHCS GR5 BLK
ZN
4
27 48271B BOLT 1/4-20 X 2-1/4 HHCS GR5 BLK
ZN
6
28 67540B BOLT 1/4-20 X 2-3/4 HHCS GR5 BLK
ZN
2
29 L17 WELDMENT, STABILIZER BAR 1
NO EXTENSIONS AVAILABLE FOR THIS MODEL.
NEVER MODIFY OR EXCEED ORIGINAL STATED USE HEIGHT!
ITEMS BELOW NOT SHOWN
-- 48415 RATCHET STRAP 1
-- 48155 FULL BODY HARNESS (FAS) 1
-- 48691 TIE-OFF ROPE KIT (INCLUDES TWO 15'
ROPES AND ONE 9' ROPE)
1
-- 200304 9" ARMREST PAD 2
-- 48800 DVD TREESTAND SAFETY 1
