Operator's Manual
Rivers Edge® One-Man Ladder Stands
27
12
16
19
29
3
11

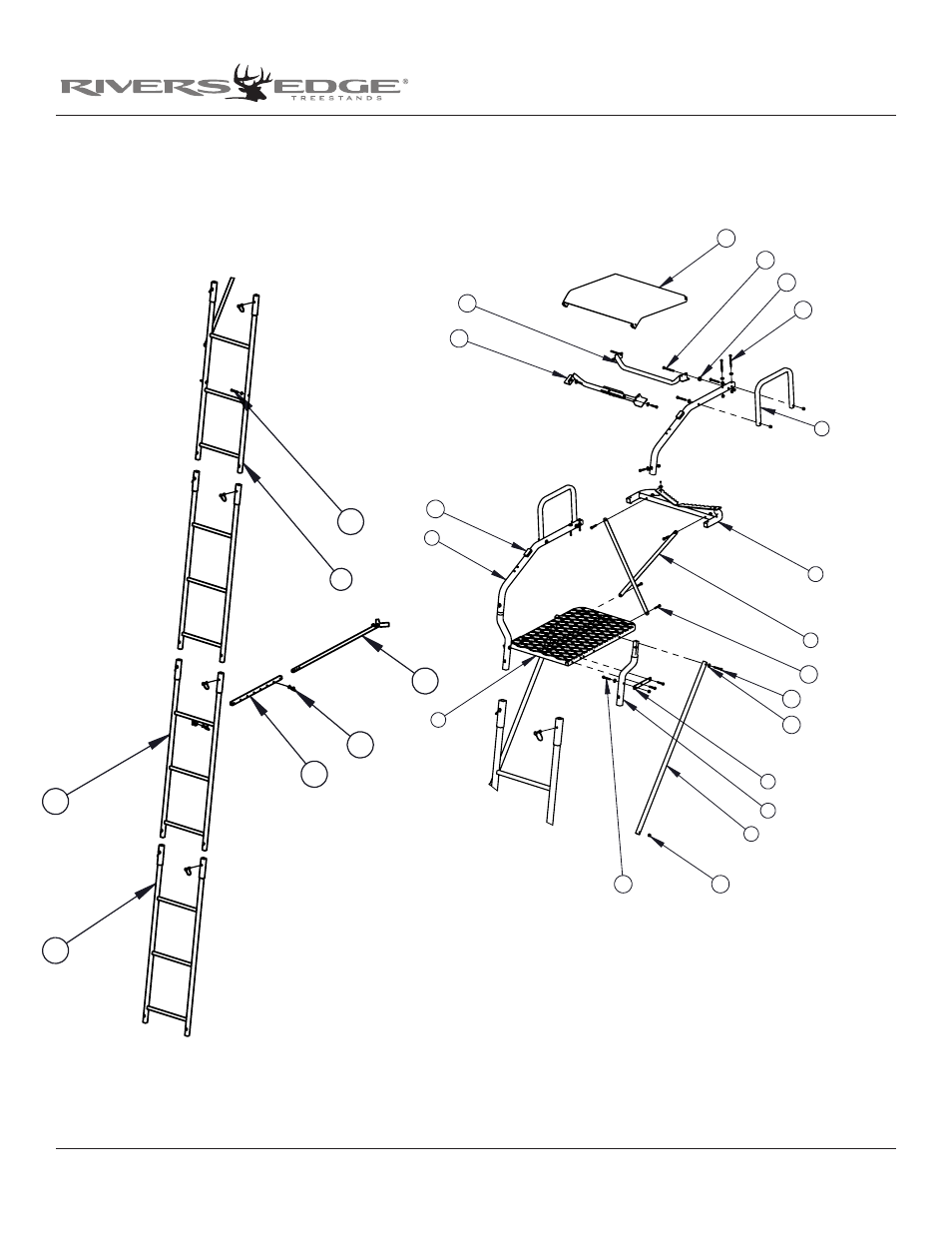

BALLOON # PART # DESCRIPTION QTY
1 15374 WELDMENT PLATFORM 24 IN X 17 IN 1
2 15380 SUPPORT BRACE 40 IN 2
3 15381 WELDMENT LADDER TOP BOWMAN 1
4 15383 FLATBAR TAB PLATFORM 2
5 15384 FLARED RAIL LADDER BOWMAN 2
6 15385 FLATBAR SUPPORT BOWMAN 2
7 15386 FLARED RAIL ARMREST BOWMAN 2
8 15387 WELDMENT TREEBLADE BOWMAN 1
9 15398 ARMREST BOWMAN 2
10 15401 ASSEMBLY SEAT BOWMAN 1
11 15404 WELDMENT LADDER MIDDLE BOWMAN 1
12 15406 WELDMENT LADDER BOTTOM BOWMAN 2
13 48111 TAG TREESTAND ID 1
14 555039 RIVET ALUM 1/8 IN X .275 IN .063-.125 GR 1
15 1930642 NUT 1/4-20 HSFBW BLK ZN 28
16 1ML23 TUBE, STABILIZER, SUPPORT 1
17 48102 PAD BUMPER 1-3/4 IN X 7/8 IN X 1/2 IN 2
18 48639 SPACER, 5/16"O.D. X 5/16, BLACK NYLON 2
19 63281 LOCKPIN 1/4 X 1 3/4 ROUND HANDLES BLAC 10
20 410112 WELDMENT SEAT SPACER FRONT 1
21 410122 WELDMENT SEAT SPACER REAR 1
22 48153B BOLT 1/4-20 X 2 HHCS GR5 BLK ZN 2
23 48240B BOLT 1/4-20 X 1-1/2 HHCS GR5 BLK ZN 12
24 48250B BOLT 1/4-20 X 1-3/4 HHCS GR5 BLK ZN 2
25 48261B WASHER FLAT 1/4" BLACK 18
26 48270B BOLT 1/4-20 X 2-1/2 HHCS GR5 BLK ZN 4
27 48271B BOLT 1/4-20 X 2-1/4 HHCS GR5 BLK ZN 6
28 67540B BOLT 1/4-20 X 2-3/4 HHCS GR5 BLK ZN 2
29 L17 WELDMENT, STABILIZER BAR 1
15
2
4
22
25
5
24
23
6
8
7
17
9
10
20
21
26
28
18
1
13
14
