30 MM MACHINE MOUNT - 60 DEGREES
15 MM MACHINE MOUNT - 60 DEGREES
30 MM MACHINE MOUNT - STRAIGHT
15 MM MACHINE MOUNT - STRAIGHT

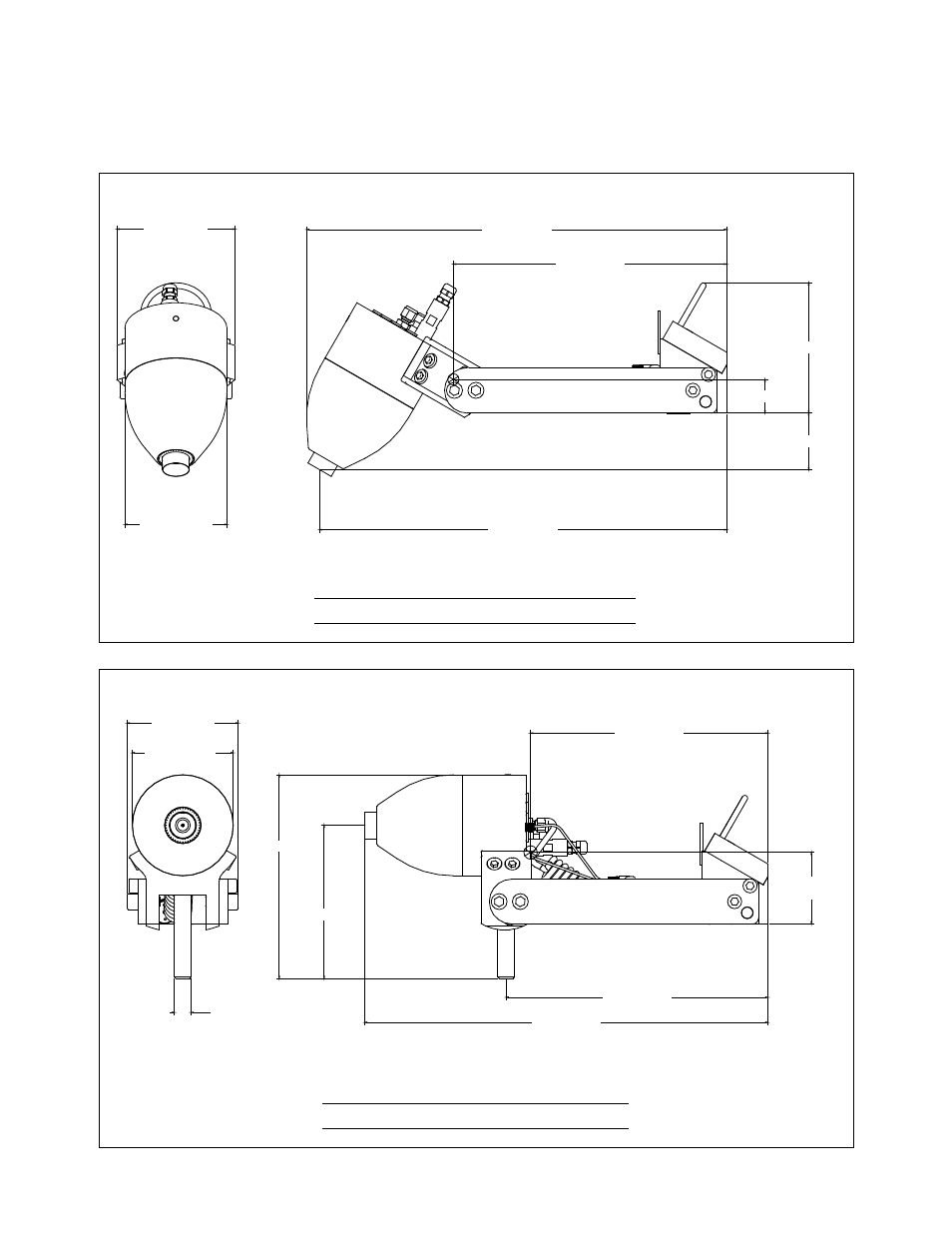

DIMENSIONAL CHARACTERISTICS
1.47 [37.4]CG
5.72 [145.4]
5.20 [132.0]
n 4.50 [114.2]
2.50 [63.5]
18.50 [469.7]
17.93 [455.3]
12.03 [305.6]
30 MM MACHINE MOUNT - 60 DEGRESS
15 MM MACHINE MOUNT - 60 DEGREES
10.58 [268.8]
CG
11.67 [296.5]
17.98 [456.7]
15 MM MACHINE MOUNT - STRAIGHT
9.07 [230.4]
6.82 [173.2]
Ш4.50 [114.2]
Ш.75 [19.0]
4.94 [125.6]
30 MM MACHINE MOUNT - STRAIGHT
3.18 [80.7]
CG
