PARTS IDENTIFICATION
1
1 70157-02
FAIRING
2
1 70155-02
BULKHEAD
3
1 70381-00
FLANGE SUPPORT
4
2 70909-00
PLUG, MACHINED, FEED TUBE ADJUSTMENT
5
2 8156-32F
SCREW, 5/16-24 x 1” LG, HEX HEAD
6
2 7734-07
LOCK WASHER, 5/16 HELICAL SPRING
7
6 70656-32C SCREW, NYLON 3/8-16 x 1” LG, HEX HEAD
8
6 20559-09
WASHER, NYLON, FLAT 3/8” I.D.
Item No.

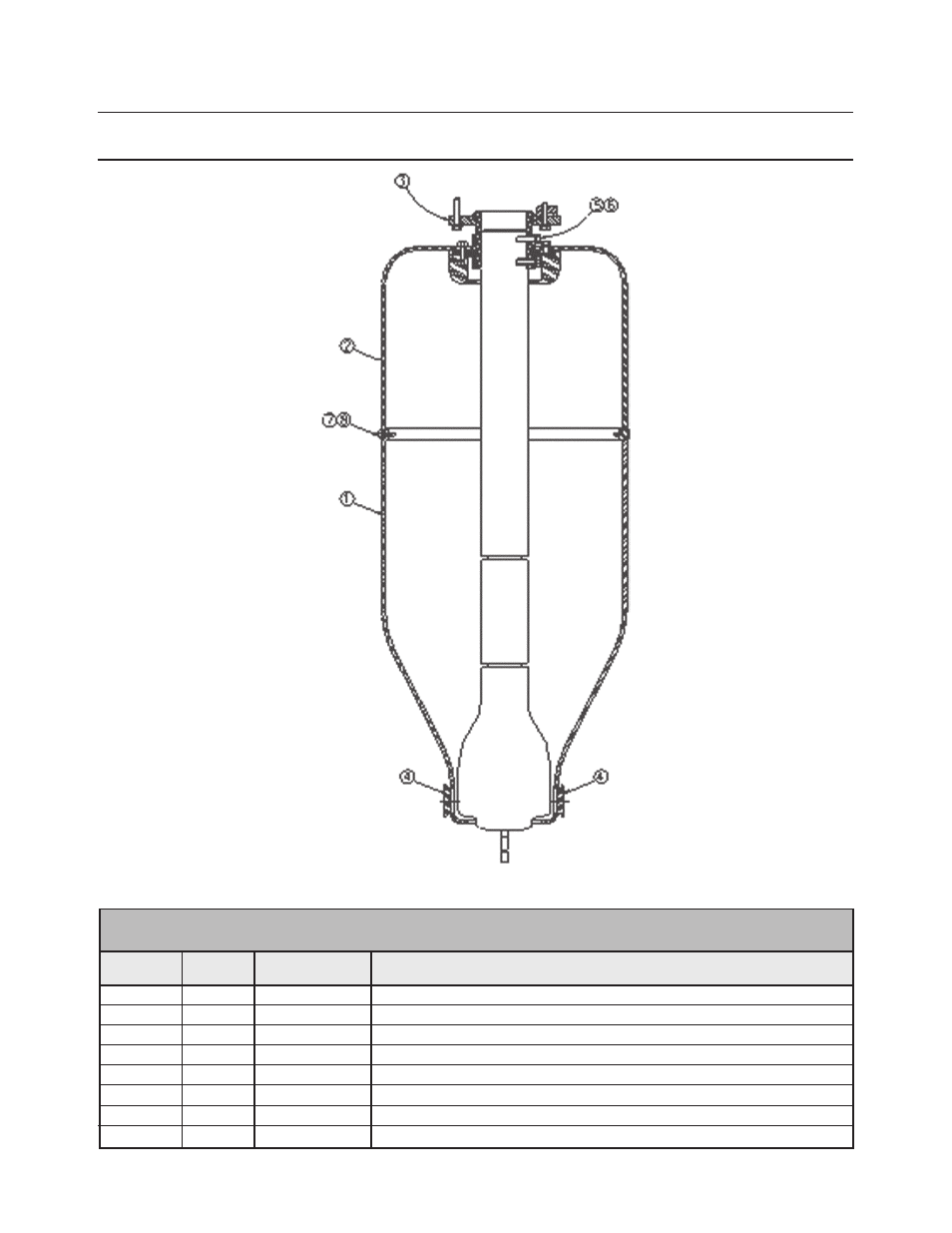

70158-02 TURBODISK FAIRING ASSEMBLY - PARTS LIST (Figure 1)
Qty
Part Number Description
11
Turbodisk Fairing Assembly - Parts Identification
AU-82-01.3
Ransburg
