INSTALLATION

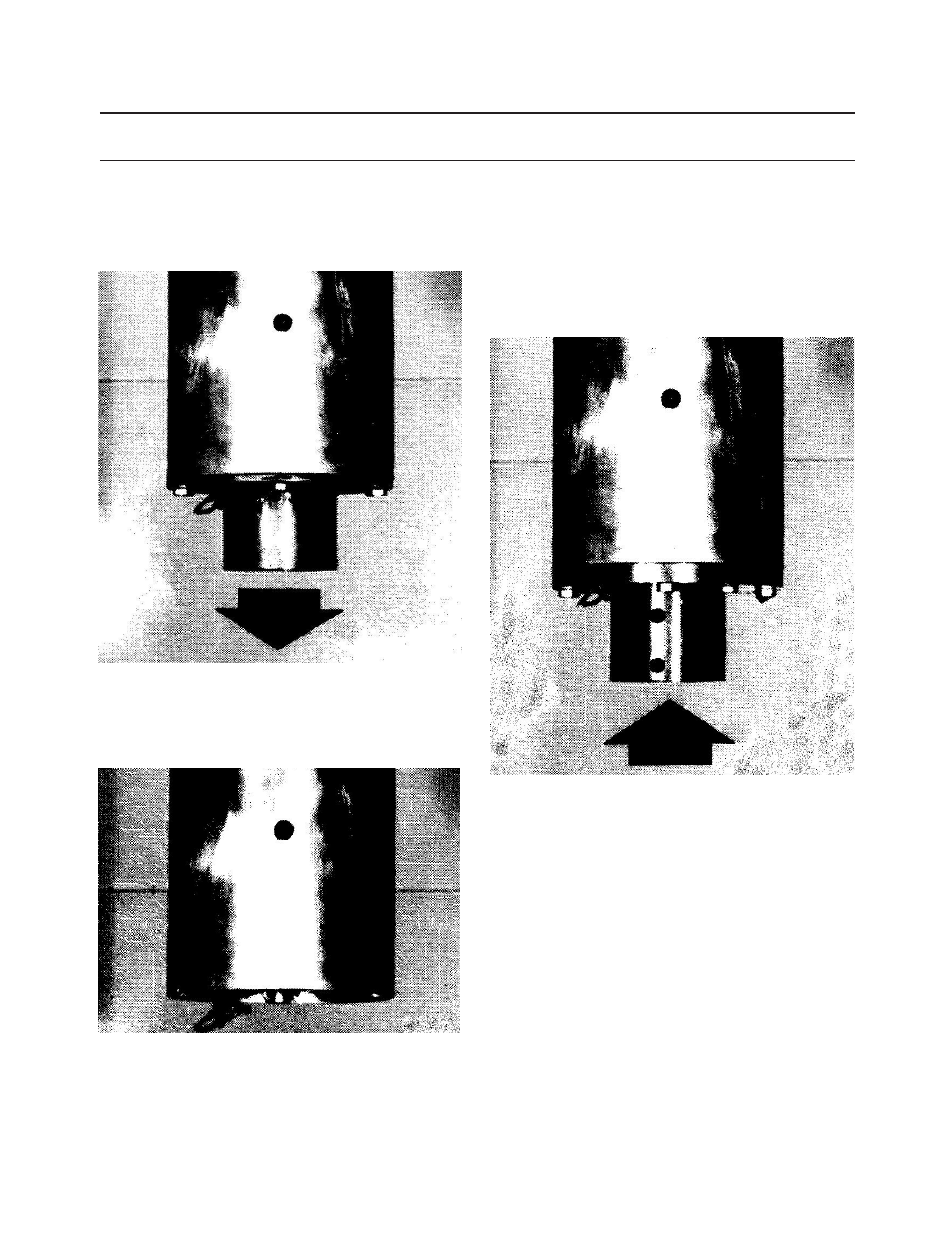

1. After the turbine insulator, feed tubes, etc.,
have been removed, remove the standard insu-
lator support flange from the reciprocator ram.
2. Clean residual paint from the ram, especially
from the four (4) threaded holes.
3. Attach the new insulator support flange to the
ram using four (4) 8156-48C screws with 7776-07
lock washers. The two (2) clamps (secured with
the two (2) smaller 7058-48C screws and 7776-06
lock washers) should fit inside of the ram. Snug
the two (2) small clamp screws for this step.
Remove the insulating cover 70148-00 from the
bulkhead assembly by removing its two (2) plastic
4322-24C screws.
7
Turbodisk Fairing Assembly - Installation
AU-82-01.3
