Ransburg Vector AA90 79581 Classic - Manual (Page 57)

7
5
8
6
4
3
9
14
13
12
2
11
10
1

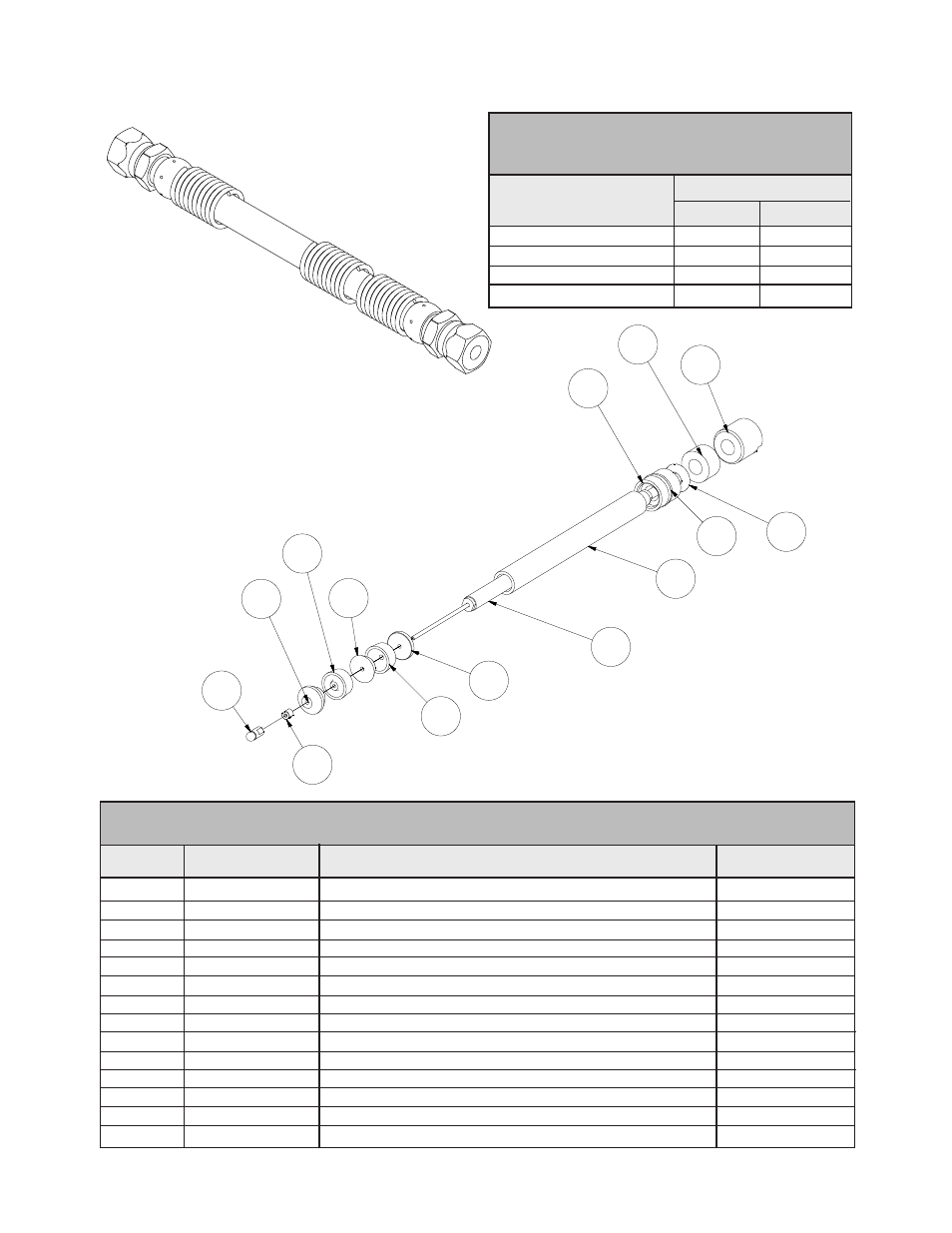

Figure 54: 7994-XX Fluid Line
7994-XX FLUID LINE
(Figure 54)
Part Number
Length
Feet Meters
7994-36 36' ± 9" 11 ± .23
7994-50 50' ± 12" 15 ± .30
7994-75 75' ± 18" 23 ± .46
7994-100 100' ± 24" 30 ± .61
Figure 55: 79575-00 AA90 Needle Shaft
1 79618-00 Spreader, Seal, Front 1
2 73345-00 Seal, Front U-Cup 1
3 72378-01 Packing Tube 1
4 73347-00 Container, Rear Seal 1
5 74330-00 Seal, High Pressure 1
6 73348-00 Retainer, Real Seal 1
7 72209-05 O-Ring, Metric 1
8 73354-00 Nut, Packing 1
9 79572-00 Assembly, Needle Shaft 1
10 73351-00 Nut, Jam 1
11 73350-00 Assembly, Ball Valve 1
12 79615-00 Spreader, Seal Rear 1
13 79616-00 Seal, Rear U-Cup 1
14 79617-00 Seal, Pusher, AA90 1
Item # Part # Description Qty
79575-00 AA90 NEEDLE SHAFT - PARTS LIST
(Figure 55)
Vector AA90 Applicators - Parts Identificatin
Ransburg
53 AH-07-01.9
