Audiovox LCM1502TV User Manual
Page 25

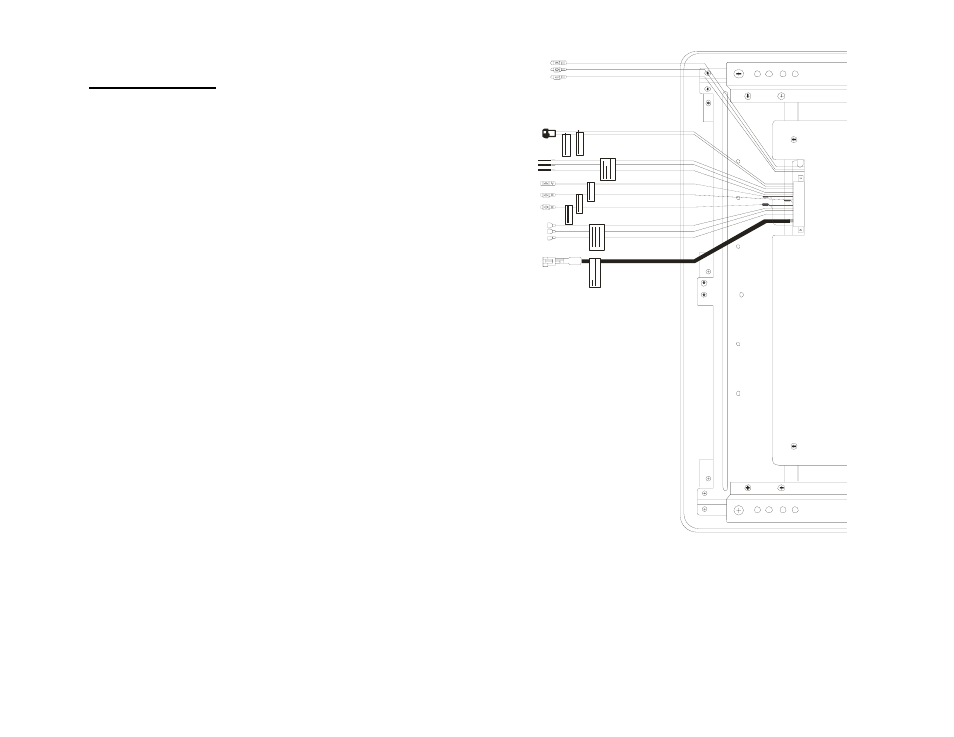

AUX I N-L (WHT)
AUX I N-R (RED)
AUX I N-V (YLW)
-24-
VIDEO OUTPUT
The LCM1502TV provides a video output for an
optional Video monitor(s). This output will
provide a video signal that duplicates the signal
displayed by the LCM1502TV to an additional
Monitor or Video display. Please see your
installer for more information.
AUXILIARY A/V STEREO INPUTS JACK
The LCM1502TV is equipped with an auxiliary
A/V input connector. The inputs are provided to
facilitate the connection of Audio/Video
equipment, such as a camcorder or video game
system. To play a source with these inputs, an
RCA patch cord is required to connect the
Audio/Video signals to their respective jacks.
Mono audio sources will require the use of an
RCA Y-cable (P/N 0892165) to connect to both
right and left inputs.
