King Kooker 2206 Heavy Duty Portable Propane Outdoor Smoker with Cooker Package - Manual (Page 11)

SMOKER CABINET ASSEMBLY
Parts List:
(1) Smoker Cabinet
(2) Cool Grip Door Handles
(1) Side Door Latch (Small Bend) and Nut
(1) Front Door Latch (Big Bend) and Nut
(2) Cool Grip Side Handles
(1) Wood Chip Pan and Lid (Cast Iron)
(1) Water Pan (Porcelain)
(2) Side Dampers
(1) Adjustable Stack with Damper and red
“Hot” Signal Plate.
(1) Cabinet Thermometer
(10) Bolts (Black)
(1) Sliding Marinade Rack
(2) Sliding Racks
(3) Sausage Hanging Racks

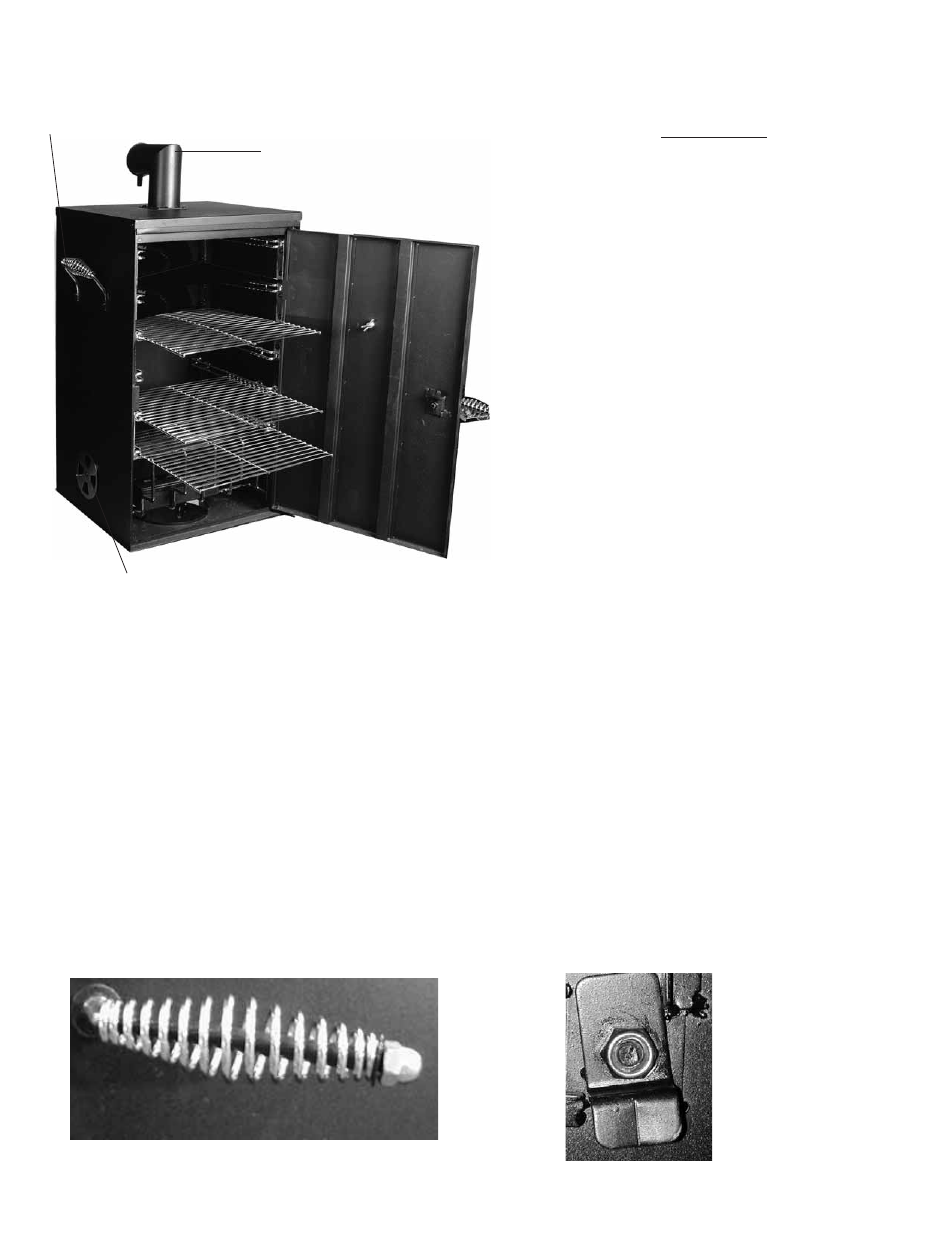

Adjustable Stack
Cool Grip Side Handle
Side Damper
Figure 2
Figure 3
Figure 4
Figure 4
Figure 4
1. Install adjustable stack on top of smoker using four black bolts. The adjustable stack vent should be
directed towards the back of the smoker (see Figure 2).
2. Install cool grip side handles on both sides of smoker using four black bolts (two on each handle).
Bolts should thread towards inside of smoker (see Figure 2).
3. Install the two side dampers onto the smoker cabinet using two black bolts (one bolt on each
damper). Bolts should thread toward inside of smoker (see Figure 2).
4. Install front smoker door handle using one cool grip door handle, front door latch (big bend) and nut.
Insert handle through front smoker door as shown in Figure 3. Keep cool grip handle horizontal. Place
front door latch (big bend) over threaded end of handle on back side of front smoker door. The bend
on latch should be pointed down (see Figure 4 below). Tighten with supplied nut. To latch the front
door shut, close door and turn handle down to latch in place.
11
