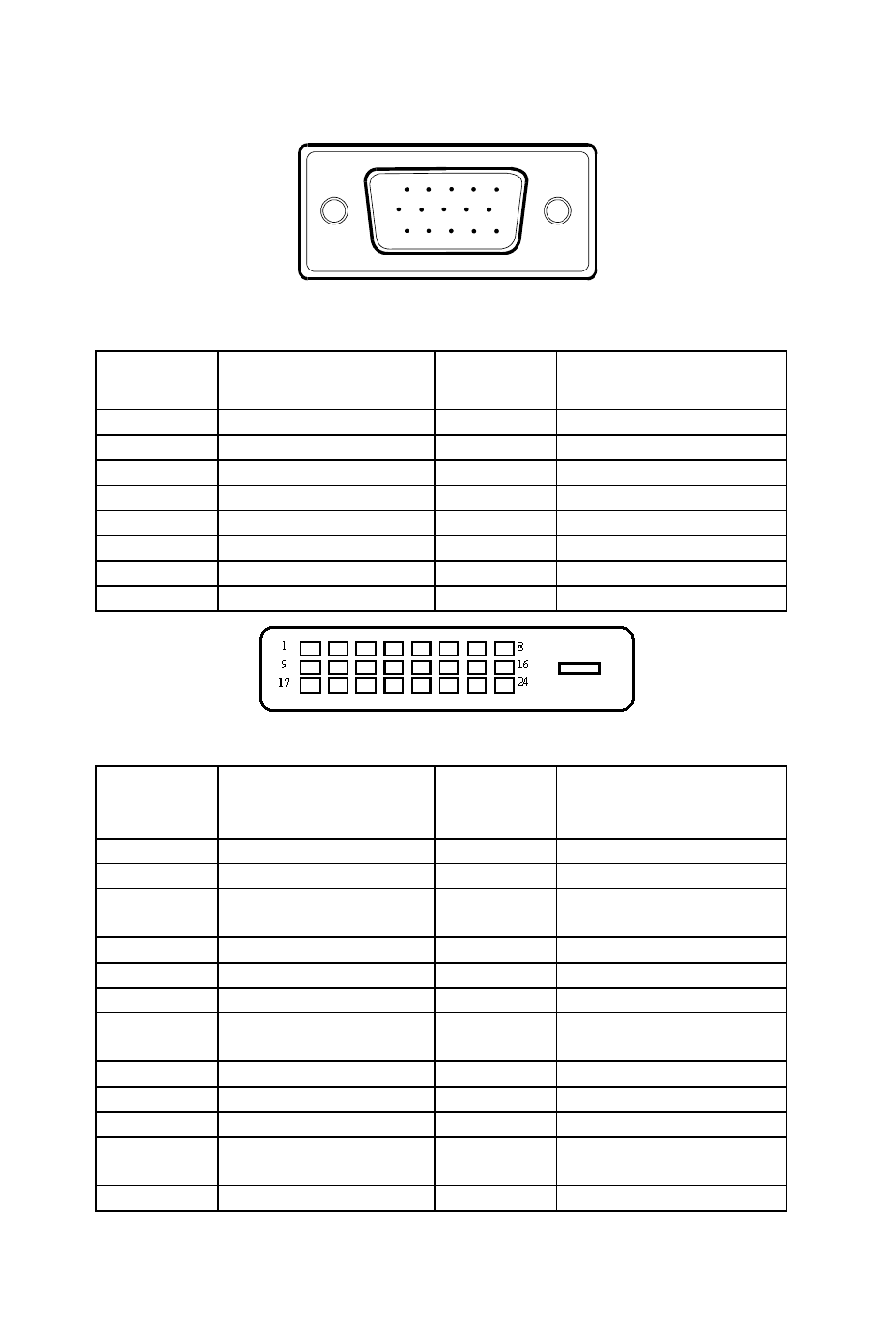

CONNECTOR PIN ASSIGNMENT
1 5
6 10
11 15
15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. Video-Red 9. +5V
2. Video-Green 10. Detect Cable
3. Video-Blue 11. NC
4. NC 12. DDC-Serial data
` Ground 13. H-sync
6. GND-R 14. V-sync
7. GND-G 15. DDC-Serial clock
8. GND-B
24 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. TMDS Data 2- 13. TMDS Data 3+
2. TMDS Data 2+ 14. +5V Power
3. TMDS Data 2/4
Shield 15. Ground(for+5V)
4. TMDS Data 4- 16. Hot Plug Detect
5. TMDS Data 4+ 17. TMDS Data 0-
6. DDC Clock 18. TMDS Data 0+
7. DDC Data 19. TMDS Data 0/5
Shield
8. NC 20. TMDS Data 5-
9. TMDS Data 1- 21. TMDS Data 5+
10. TMDS Data 1+ 22. TMDS Clock Shield
11. TMDS Data 1/3
Shield 23. TMDS Clock +
12. TMDS Data 3- 24. TMDS Clock -
