Havener E-40 Edger User Manual

Page 12

Wheel Positioning

The wheel adjusting spacer should be centered between the wheels when edging with the blades in the vertical
position. (Fig 1) The wheel spacer must be next to the belt guard position with both wheels together when
edging with the cutterhead in an angle position, trimming (horizontal position) or curb riding. (Fig 2)

DANGER: DO NOT CHANGE THE WHEEL POSITION WHILE THE ENGINE IS RUNNING. (figure 2)

1. Remove the spacer from between the wheels by lifting on the spacer with open side down.

2. Slide the left front wheel on the axle toward the right wheel and install the spacer on the axle between the

frame and the wheel.

CAUTION: Before starting the engine be sure the wheels and cutter head are positioned so the blade will
not strike the wheels.

NOTE:

Only vertical edging can be done when curb riding.

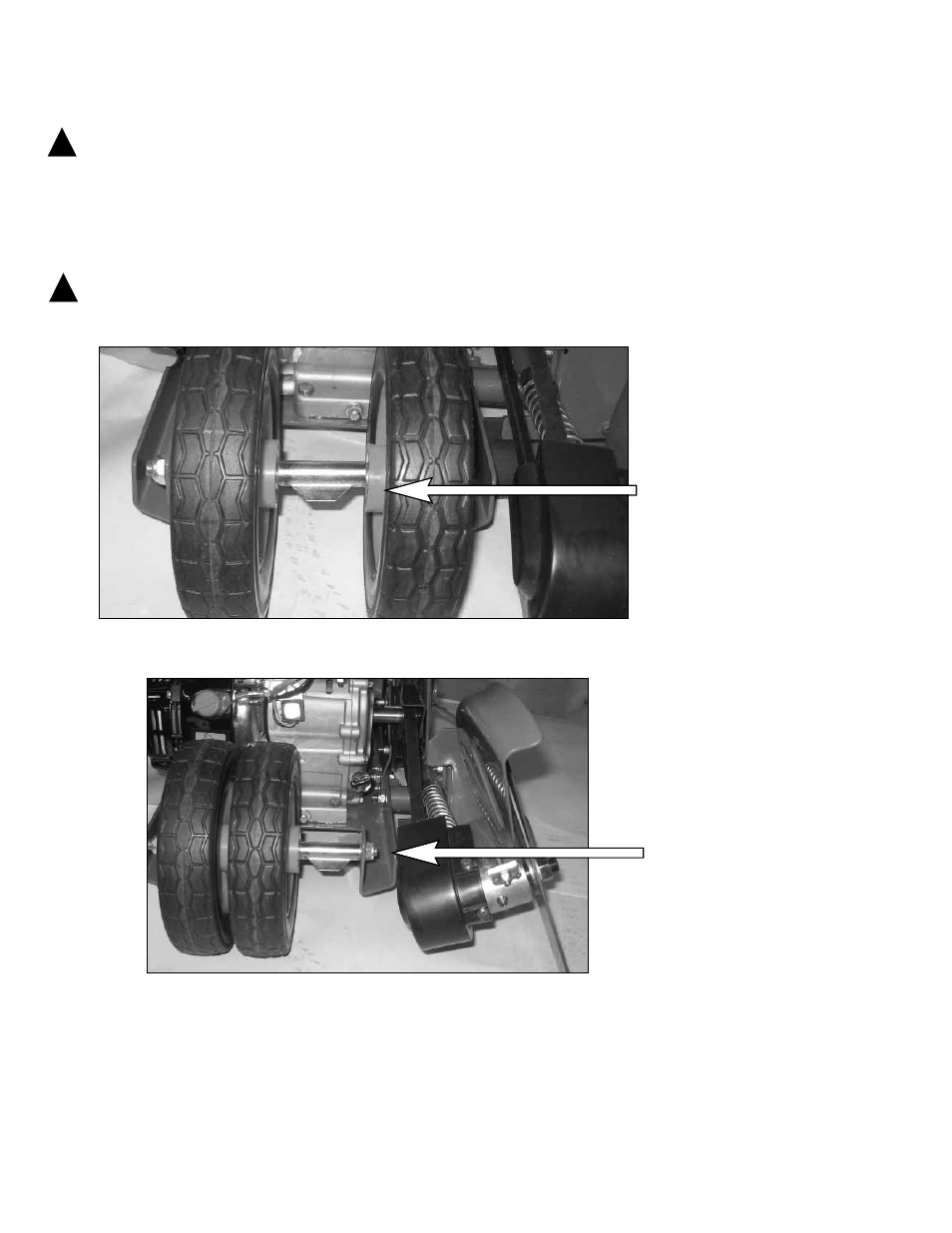

Figure 1

Spacer in center for

edging in vertical

position

The spacer must be next
to the belt guard position

with both of the wheels

together when edging with

the cutter head in the

angle position, trimming or

curb riding position.

Figure 2
