Introduction
The Mach 5 is an advanced high speed energy meter capable of measuring up to 100,000
pulses per second. It is used with the Mach 5 Applications Software, which creates a full
featured data acquisition system for measuring and displaying laser energy.
The Mach 5 is used with compatible GENTEC-EO probes, the M5-PJ (Pyroelectric
Sensor) or the M5-SJ (Silicon Sensor).
Figure 1 shows the Mach 5 front panel. Figure 2 shows the Mach 5 back panel.

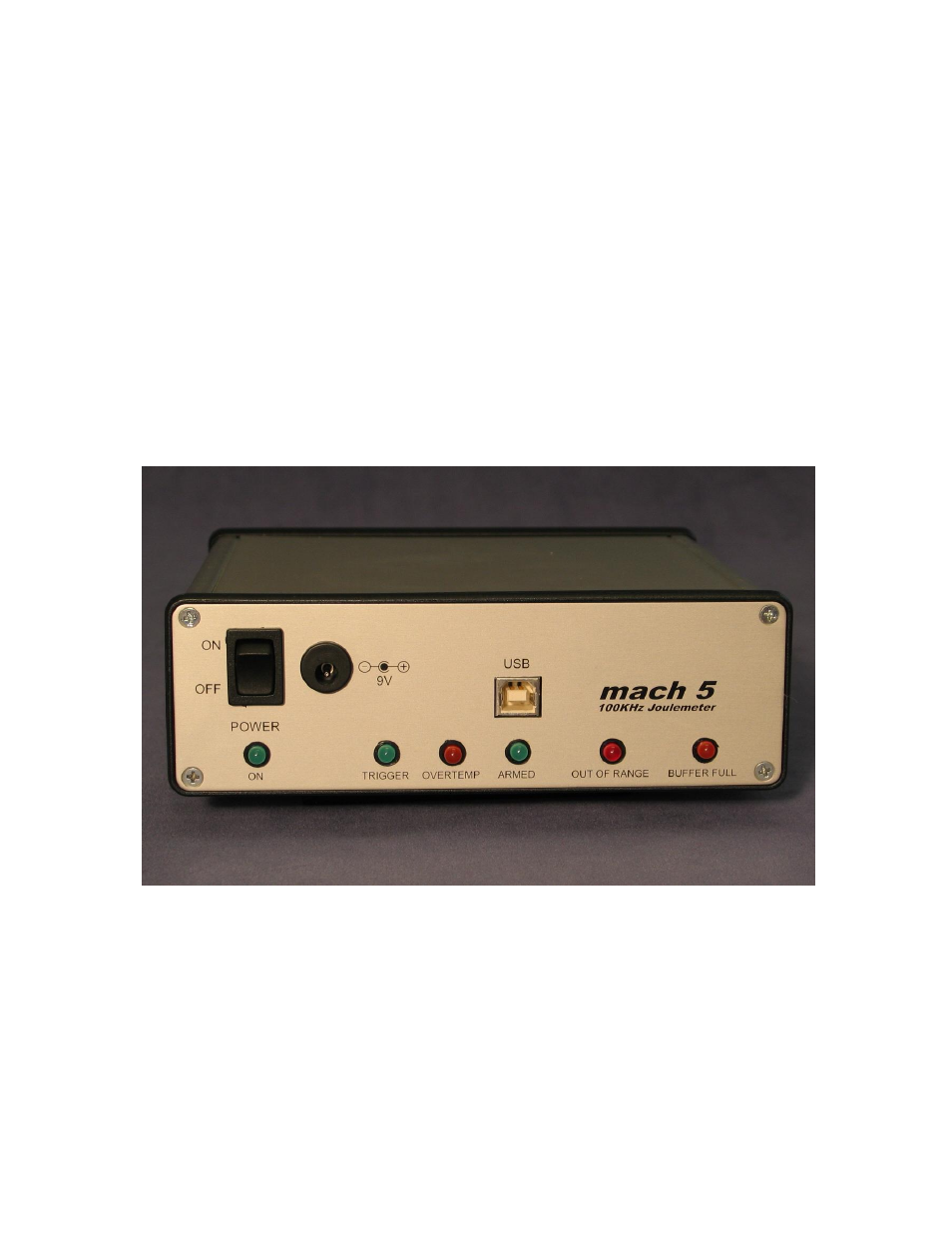

Figure 1, Mach 5 Front Panel
