Page 13

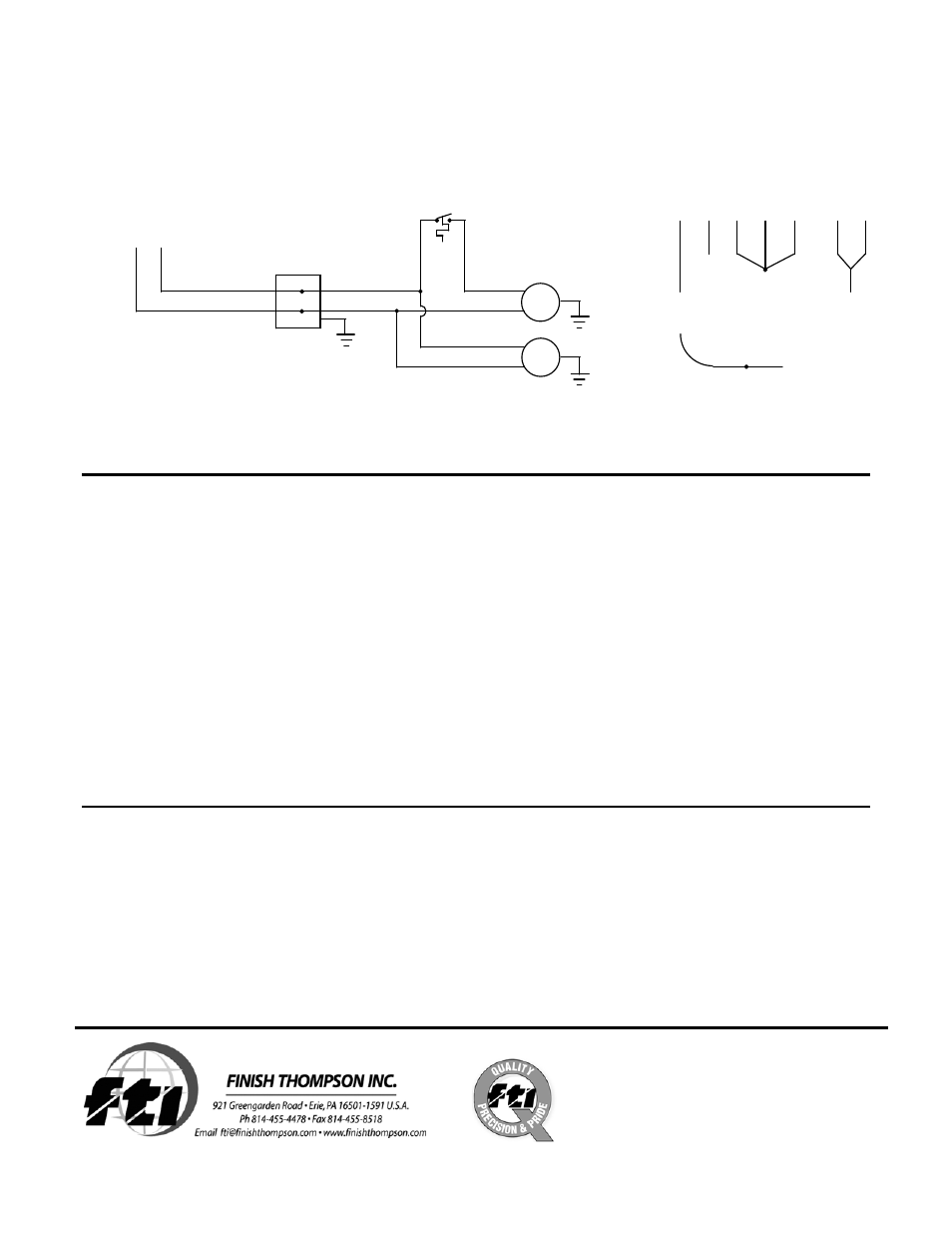

ELECTRICAL SCHEMATIC:

SPECIFICATIONS:

Model: PLSC001 “Little Cooler”

Dimensions: 22” wide x 31” deep x 22” tall

Shipping wt: 180 lb.

Electrical requirements: 230 volts / 1 Ph / 60 Hz / 5.5 amps

Heat removal capacity: 24,000 BTU’s per hour

Coolant circulation temp: approximately 10

F to 20ºF above ambient air temp

Pump characteristics: 2.6 gpm at 30 psi

Motor: 1/2 hp, 3450 rpm, 56C frame, TEFC

WARRANTY

This product is warranted to be free of defects in materials and workmanship for a period of one (1) year from the
date of shipment to the original purchaser. If a warranted defect occurs within this period, it will be repaired or
replaced at the manufacturer’s option, provided (1) the product is submitted with proof of purchase date and (2)
transportation charges are prepaid to the factory. Liability under this warranty is expressly limited to repairing or
replacing the product or parts thereof and is in lieu of any other warranties, either expressed or implied. This
warranty does not apply to product or parts broken due to accident, overload, abuse, tampering, alteration, or
chemical incompatibility. The manufacturer accepts no responsibility for damage or injuries sustained when the
product is modified or altered in any way. If this warranty does not apply, the purchaser shall bear all costs for
labor, material, and transportation.

Tech Service Hotline

800-888-3743

Part Number J102907-2

Rev 8

Modified 6/9/09

MTR

FAN

MOTOR

PUMP

MOTOR

OVER-TEMP THERMOSTAT

OPENS @ 150º F.

CLOSES @ 100º F.

TAS1

JUNCTION

BOX

DETAIL OF PUMP MOTOR

(CCW ROTATION)

TO O-T

THERMOSTAT

TAPE

TO BOX

(RED)

TO BOX

(BLACK)

CUSTOMER-SUPPLIED

WIRING FROM MAIN OR

CUSTOMER-SUPPLIED

CONTACTOR
