Figure 4. front view, Figure 5. rear view – Finish Thompson LS-Jr User Manual
Page 4
Item Description
Item Description
1
Vacuum unit on/off switch
14
Vacuum unit cooling water inlet
2
Grounding cable for waste solvent container
15
Vacuum unit cooling water discharge (to No.5)
3
Grounding cable between units
16
Vacuum gauge
4
Distillate hose coupling
17
Grounding cable for vacuum distillate pail
5
Cooling water inlet to condenser (from No. 15)
18
Reservoir access door
6
Cooling water discharge to drain
19
Flame check
7
Grounding cable for atmospheric distillate pail
20
Receiving pail for atmospheric distillation
8
Quick-disconnect coupling
21
Receiving pail for vacuum distillation
9
Adjusting valve
22
Lighted start/stop button (LS-Jr.)
10
Vacuum distillate discharge hose
11 V-strainer
12
Explosionproof motor with on/off switch
13 Vacuum-connection
hose
4
3
9 16

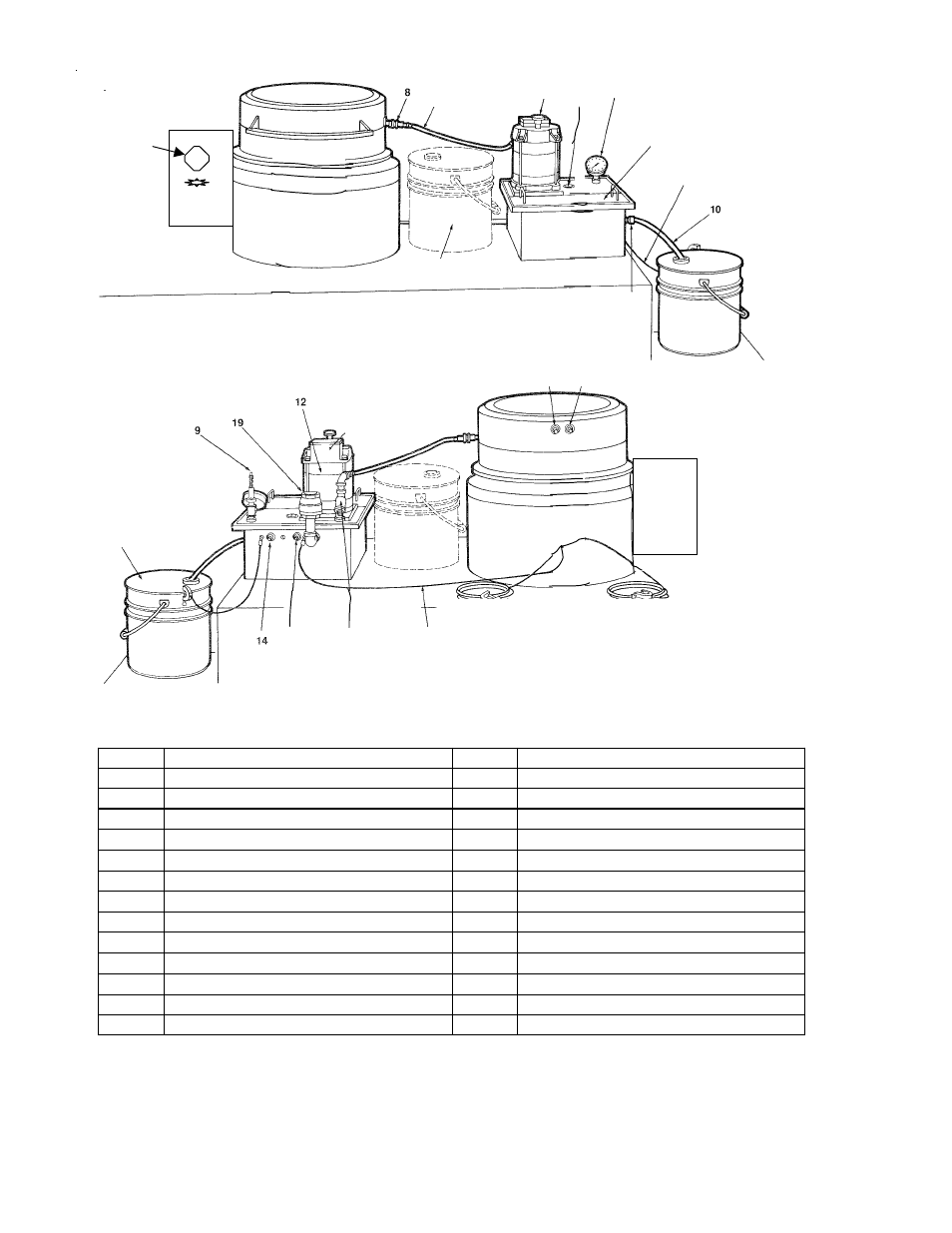

Figure 4. Front View
18
17
5
6
15
11
7
2
Figure 5. Rear View
13
3
21
20
1
22
4
