Panel mount installation – Fairbanks SCB-R9000-B Series Ultegra Baggage User Manual
Page 10
Section 2: Installation
03/2014
10
51308 -- Rev. 2
2.6. Panel Mount Installation

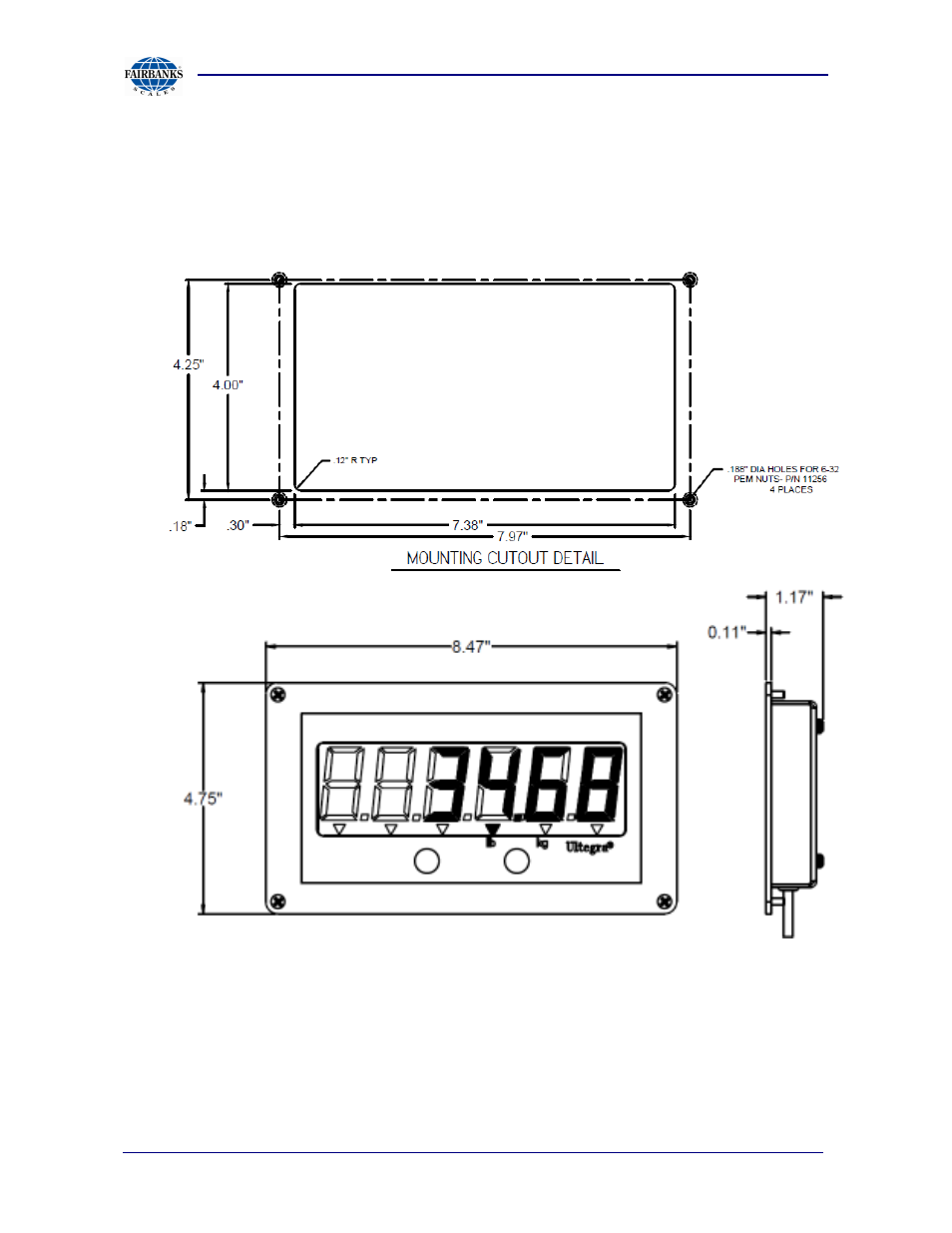

1. Mark the locations for the four (4) mounting screws and cutout for the panel
mount display using the dimensions listed on the drawings below.
2. Cutout the outline for the panel (7.38” x 4.0”) on the surface where it is to
be mounted.
3. Drill the four (4) holes approximately 3/16” or (0.188”) diameter which will
secure the panel to the surface.
4. Mount the display.
