Lint box/blower assembly removal – American Dryer Corp. 20/31 User Manual
Page 4
4
American Dryer Corp.
450262-1

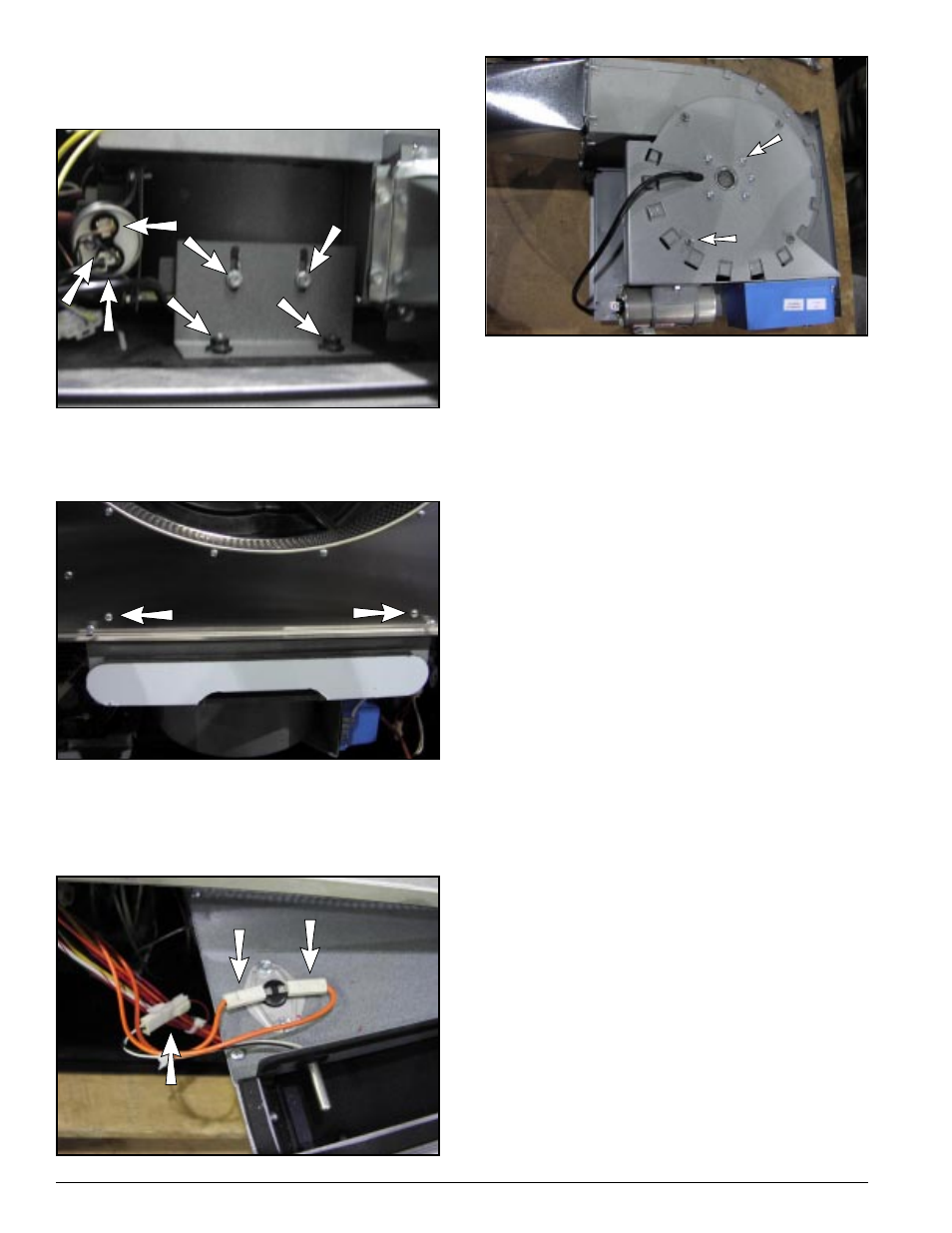

Remove screws and nuts at the rear of the lint box.
Unplug wires from the capacitor.
To remove motorized impellor assembly, remove the
five screws and four nuts, shown with arrows.
Remove cover and pull the motorized impellor
assembly out through the opening.
Unplug three connections at the left of the lint box.
The lint box may now be pulled out through the front
of the dryer.
Remove two screws just above the lint drawer and
pull the lint box down from the front and out slightly.
LINT BOX/BLOWER ASSEMBLY REMOVAL:
