American Dryer Corp. 20/31 - Manual (Page 3)

450262-1 www.amdry.com 3
Part Locations and Removal

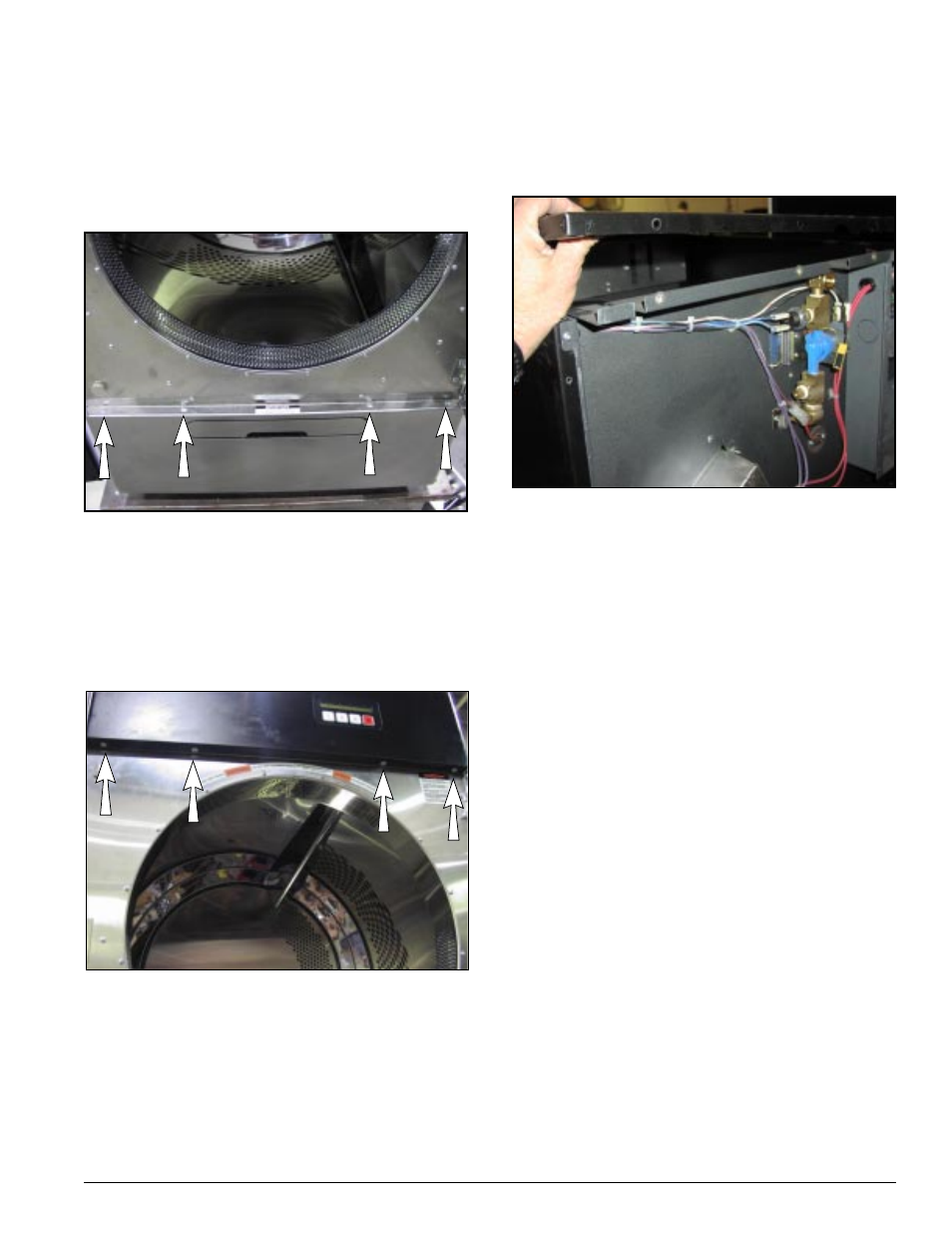

UPPER FRONT PANEL REMOVAL:
Remove the four screws located just above the
loading door. Tilt the bottom of the panel out and lift
the panel up and away from the dryer.
LOWER FRONT PANEL REMOVAL:
Remove the lint drawer. Remove the four screws
located just below the loading door. Tilt the top of
the panel out and lift the panel up and away from the
dryer.
TOP COVER REMOVAL:
First remove the back guard, then pull top cover
toward the rear of the dryer and lift up.
