Direct Lift Pro9F User Manual
Page 11
Pro9F 9000 lbs. Floor Plate Lift
IN50019 Rev. C 03/30/2009
11
STEP 11
: Cylinder centering and chain installation: Make sure the “Tip” on the bottom of the
cylinder is properly located into the center hole on top of the cylinder mount in base.

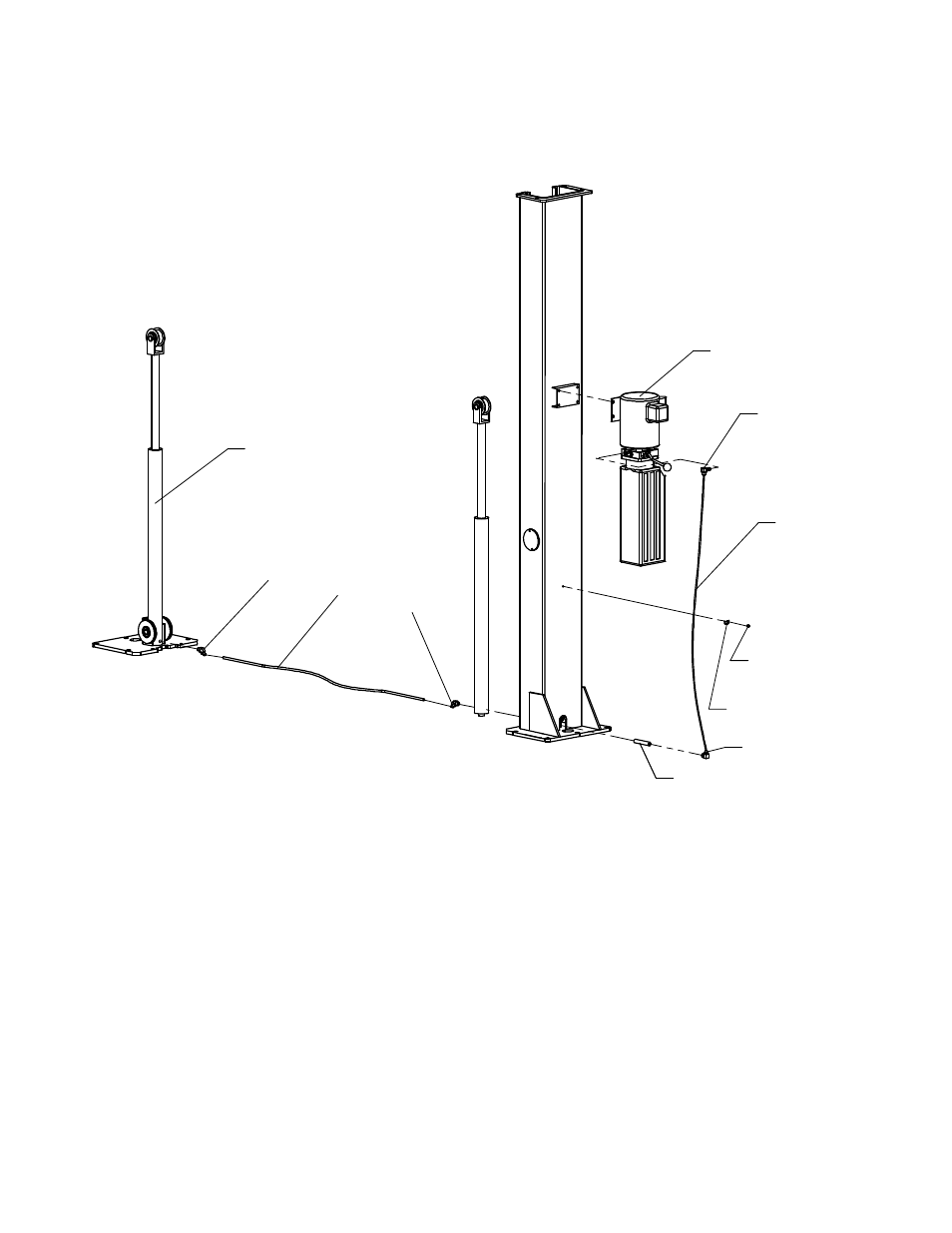

STEP 12
: Connect the Hydraulic Hoses and Fittings, as shown.
Hydraulic
Nipple
Hydraulic Cylinder
Hydraulic
Nipple
Hose
Power Unit
Hydraulic Hose
90º Fitting
M6 x 8
Screw
Hydraulic Extension
90º Fitting
Hose Clip
