ELASTOMER TABLE
REF
No.
DESCRIPTION BUNA-N NEOPRENE EPDM VITON PTFE QTY
4 VALVE BALL 1B010 1B056 1B052 1B055 1B053 4
4 VALVE BALL (WTD) 1B079 1B027 1B080 1B088 - 4
6 O-RING G029 G149 G031 G119 G111 4
12 DIAPHRAGM 1B004 1B001 1B002 1B003 SEE 11 & 12 2
ELASTOMER TABLE - cont’d
REF
No.
DESCRIPTION POLYESTER POLYURETHANE SANTOPRENE ALUMINIUM STAINLESS
STEEL
QTY
5 VALVE SEAT - - - 50-293 50-292 4
4 VALVE BALL - - - - - 4
12 DIAPHRAGM 1B029 1B048 50-233 - - 2

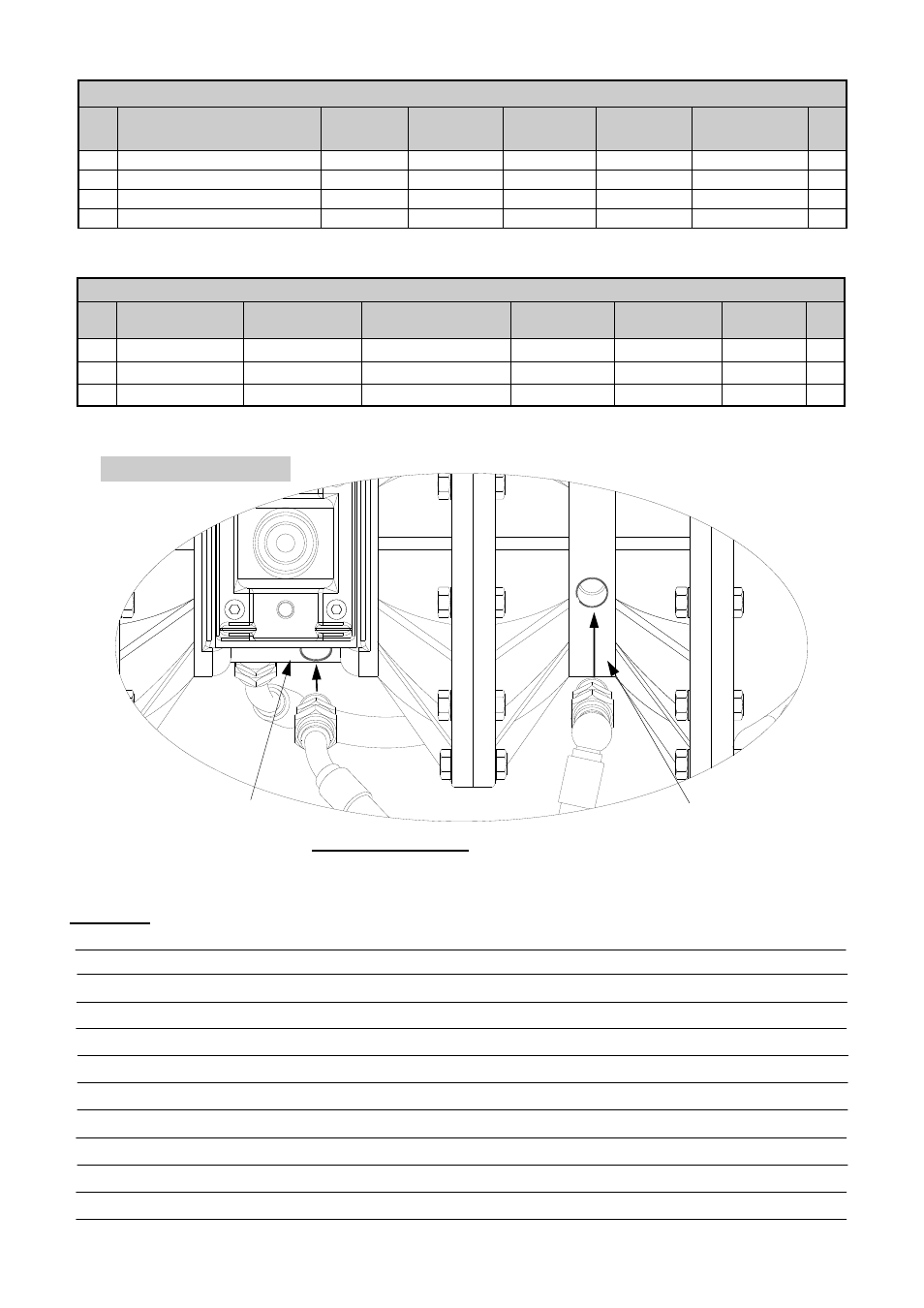

TECHNICAL NOTES :-
Air Hose connections :-
When assembling Air Hoses (item 47) ensure that inlet &
outlet connections on Air Dist. Man. (item 45) and spacer
(item 52) are on same side of pump.
Manifold (45) Spacer (52)
NOTES :-
