HG-CF-1088 Rev. G - 26.02.13 PAGE 12
REF
No.
DESCRIPTION BUNA-N NEOPRENE EPDM VITON PTFE QTY
5 O-RING G420 G426 G418 G427 G416 4
6 VALVE SEAT 50-044 50-045 50-046 50-047 - 4
7 O-RING G457 G458 G459 G460 G461 4
13 DIAPHRAGM 1B004 1B001 1B002 1B003 SEE 63 & 64 2
16 VALVE BALL 1B010 1B056 1B052 1B055 1B053 4
16 VALVE BALL (WTD) 1B079 1B027 1B080 1B088 - 4
14 O-RING G415 G424 G419 G425 G417 2
ELASTOMER TABLE
ELASTOMER TABLE - cont’d
REF
No.
DESCRIPTION POLYESTER POLYURETHANE SANTOPRENE STAINLESS
STEEL
QTY
6 VALVE SEAT - - - 50-091 4
13 DIAPHRAGM 1B029 1B048 50-233 - 2
16 VALVE BALL - - - 1B109 4
TECHNICAL NOTES :-

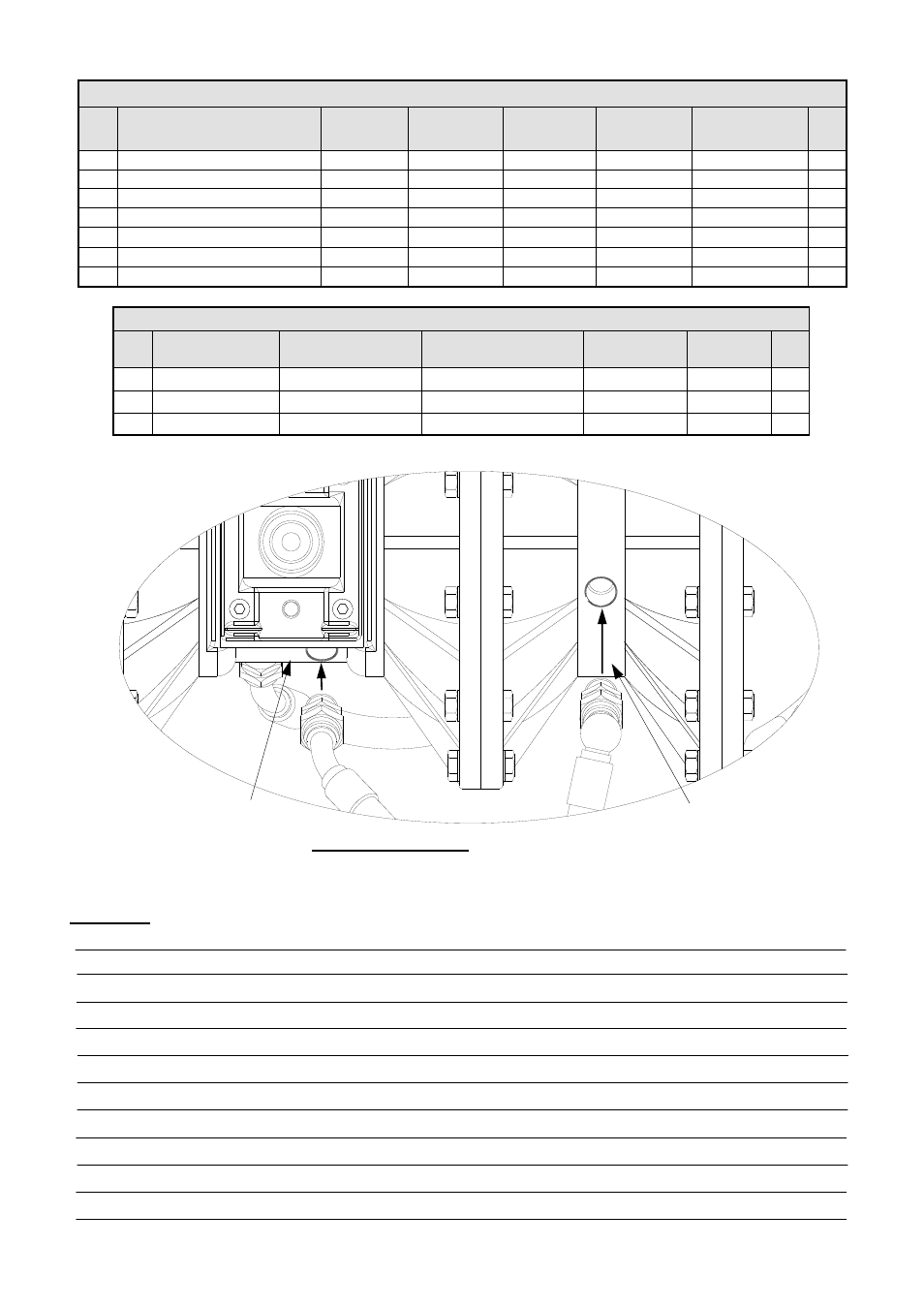

Air Hose connections :-
When assembling Air Hoses (item 39) ensure that inlet &
outlet connections on Air Dist. Man. (item 41) and spacer
(item 49) are on same side of pump.
Manifold (41) Spacer (49)
NOTES :-
