APS-600

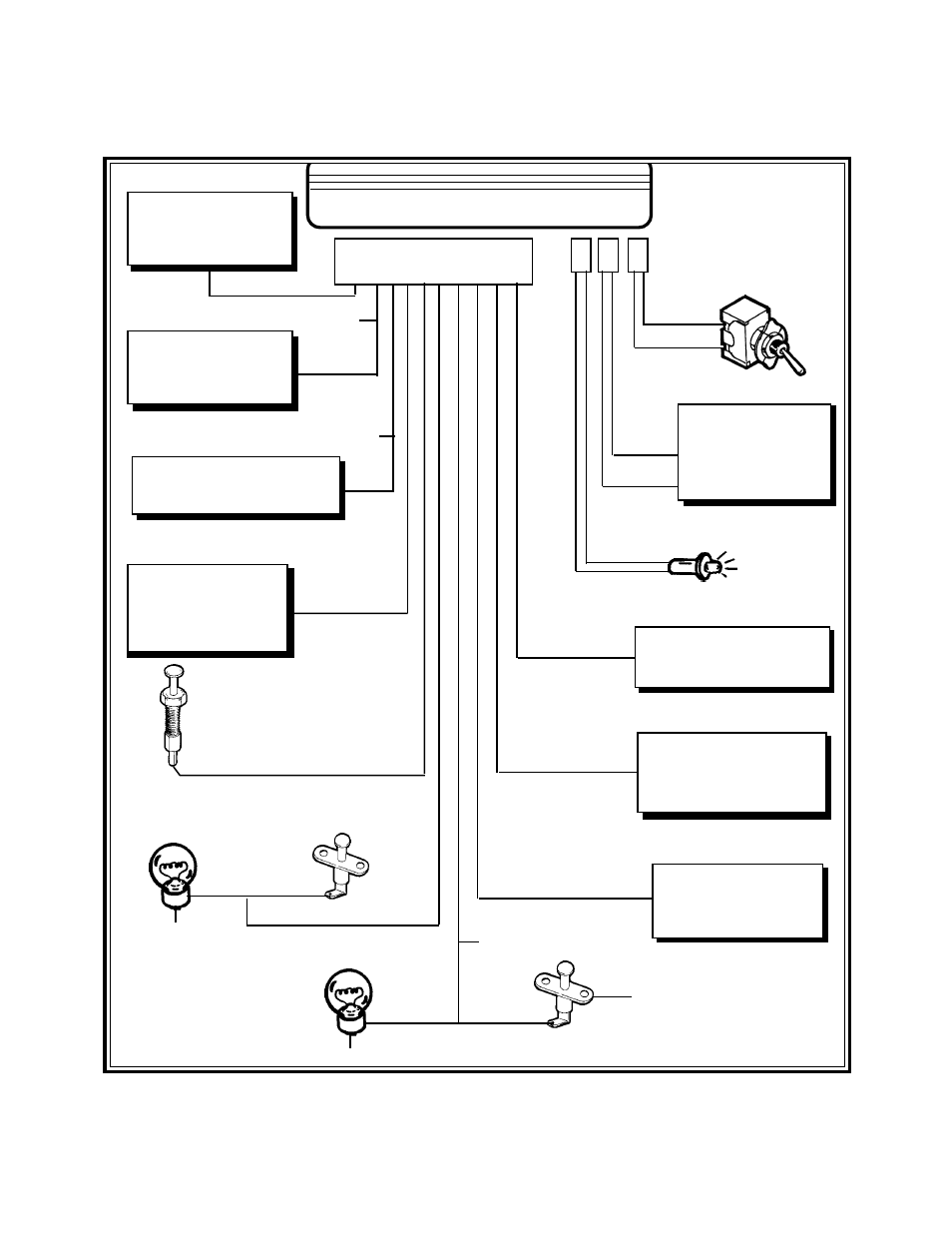

CONTROL MODULE
Page 9
BLACK
+
2 STEP UNLOCK
RELAY OUTPUTS
To Relay Terminal #85
To Relay Terminal #86
LT. BLUE
L.E.D.
ZONE 1
Optional Negative Triggering
Alarm Accessories
LT. GREEN
HEADLIGHT OUTPUT
30 Second Ground Output
During Arm & Disarm
(Optional Relay Required)
WHITE w/BLUE
IGNITION SOURCE
To +12 Volts
Ignition / Crank
YELLOW
-
PURPLE
+
EXISTING DOME LIGHT
BROWN
CHANNEL 4
Negative Latching Output
for Optional Remote Start
or Window Roll-Up
LT. BLUE
CHANNEL 3
Negative Latching Output
for Optional Remote Start
or Window Roll-Up
EXISTING
DOME LIGHT
EXISTING
NEGATIVE SWITCHING
DOOR PIN SWITCH (GM TYPE)
DARK GREEN
HORN OUTPUT
Connect to Low Current Negative
Wire from Horn Switch
GROUND OUTPUT
when DISARMED
Connect To Relay For
Normally Opened Starter-
Cut Fearture
ORANGE w/WHITE
HOOD OR TRUNK
PIN SWITCH
BLACK w/WHITE
GREEN w/BLACK
GREY
VALET SWITCH
GREEN w/
BLACK
RED w/
BLACK
RED
