Chapter 3: System Description

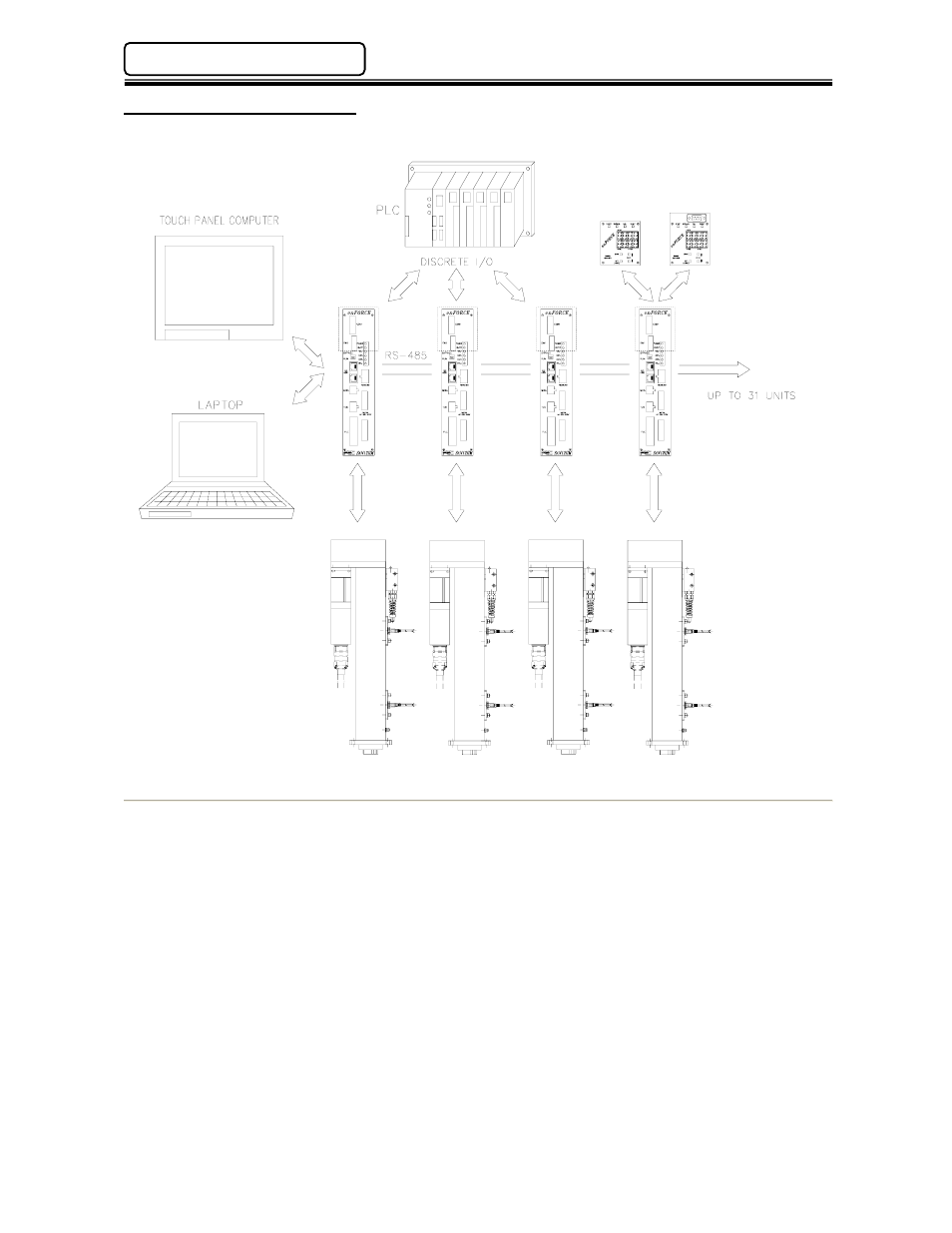

3.1 System Block Diagram
♦
The enFORCE system can consist of a stand alone unit or combined in a multiple press
configuration. Discrete 24VDC (Sinking) I/O on the SAN unit provides direct communication with the
PLC for individual or multiple press control.
♦
Press programming / monitoring can be accomplished using the “hot-swap” detachable keypad – for
individual controllers, or by a PC running the DSP User Console software package – for
simultaneous upload / download and monitoring of up to 31 SAN controllers via an RS485 series
connection on the front of each SAN unit..
