Elite Screens WhiteBoardScreen User Manual
Page 6
Rev. 060809‐JA
5
Unit: mm
Model
Number
Overall
Width
(W)
Overall
Height
(H)
Installation
Height (A)
Suggested
Projection
Distance (B)
Sit ting
View
Distance
(C1)
Standing
View
Distance
(C2)
Suggested
Projection
Height (D)
Viewer
Distance
(E)
Sit ting
View
Height
(F1)
Standing
View
Height
(F2)
Sitting
View
Angle
(01)
View
Angle
(02)
WB80V
1630.0
1230.0
1000 ‐ 1200
2750 ‐ 3750
228
145
800 ‐ 1000
1200
1200
1700
10°
6°
Unit: inches
Model
Number
Overall
Width
(W)
Overall
Height
(H)
Installation
Height (A)
Suggested
Projection
Distance (B)
Sit ting
View
Distance
(C1)
Standing
View
Distance
(C2)
Suggested
Projection
Height (D)
Viewer
Distance
(E)
Sit ting
View
Height
(F1)
Standing
View
Height
(F2)
Sit ting
View
Angle
(01)
Standing
View
Angle
(02)
WB80V
64.2
48.4
39.4 ‐ 47.2
108.3 ‐ 147.6
9.0
5.7
31.5 ‐ 39.4
47.2
47.2
66.9
10°
6°

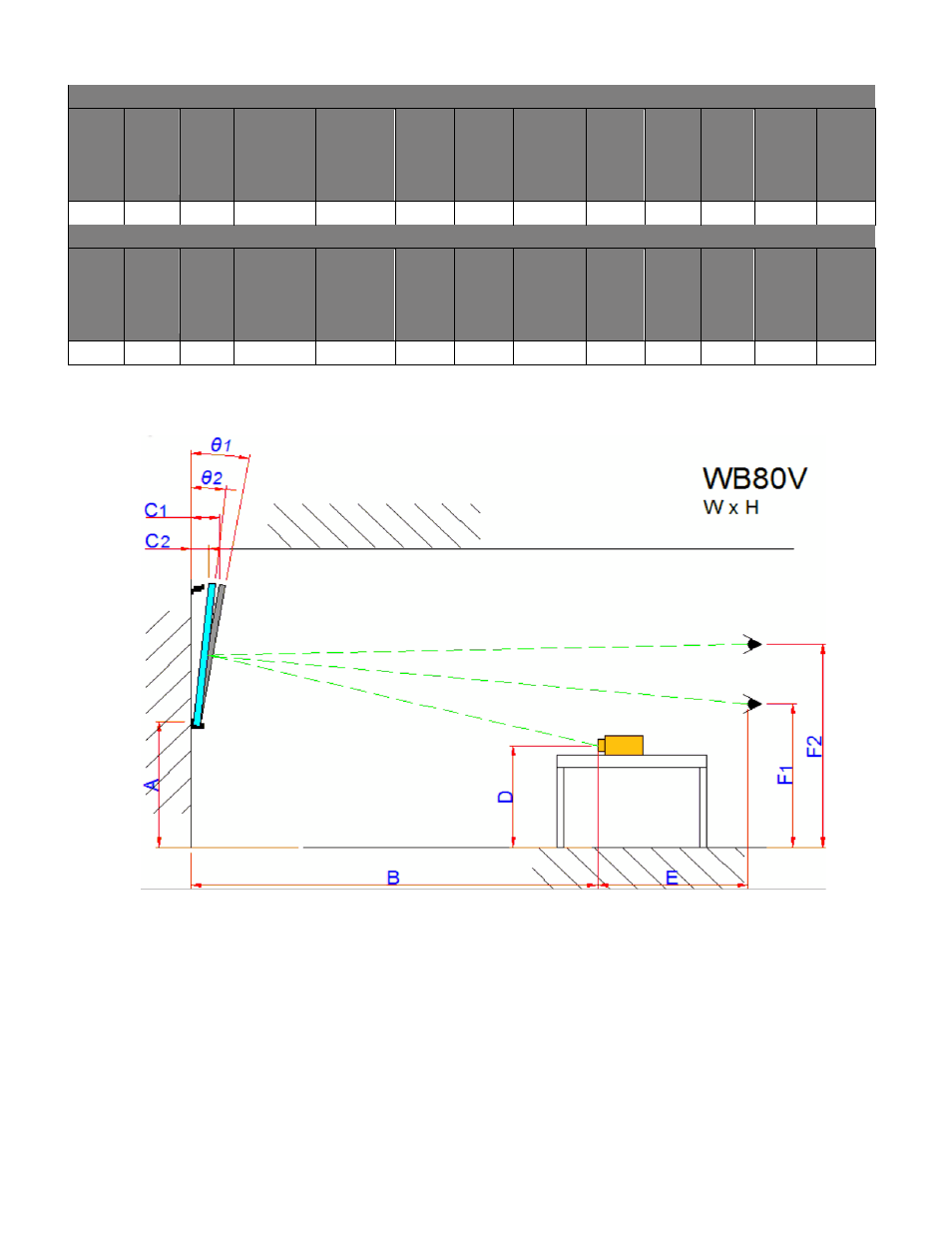

Standing View
Sitting View
