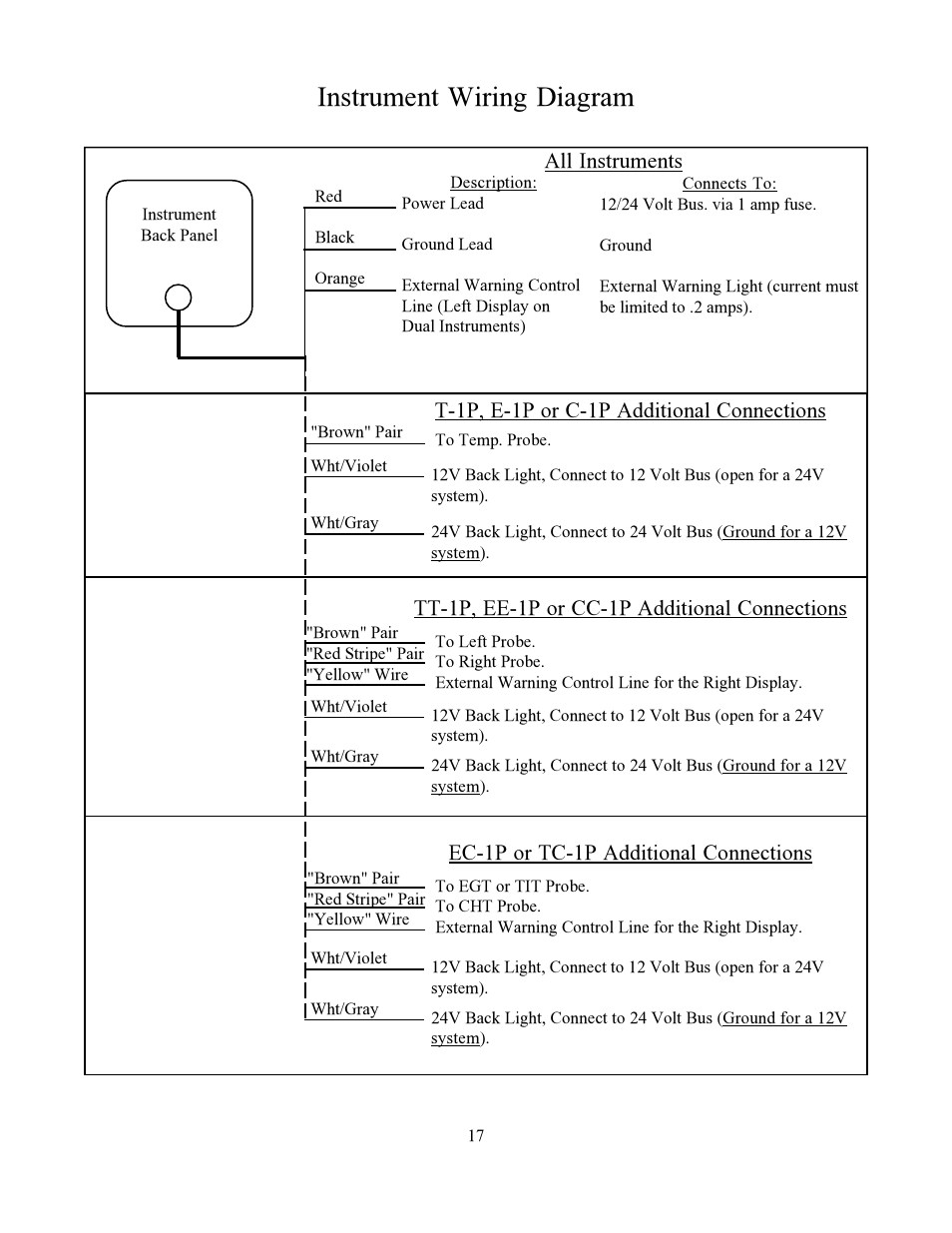

Instrument wiring diagram, All instruments, T-1p, e-1p or c-1p additional connections – Electronics International TC-1P User Manual

Page 20: Tt-1p, ee-1p or cc-1p additional connections, Ec-1p or tc-1p additional connections

Text mode
Original mode

Instrument wiring diagram, All instruments, T-1p, e-1p or c-1p additional connections | Tt-1p, ee-1p or cc-1p additional connections, Ec-1p or tc-1p additional connections | Electronics International TC-1P User Manual | Page 20 / 22

This manual is related to the following products:

EC-1 P E-1 P
