Electro Cam PS-6000 Series - Manual (Page 9)

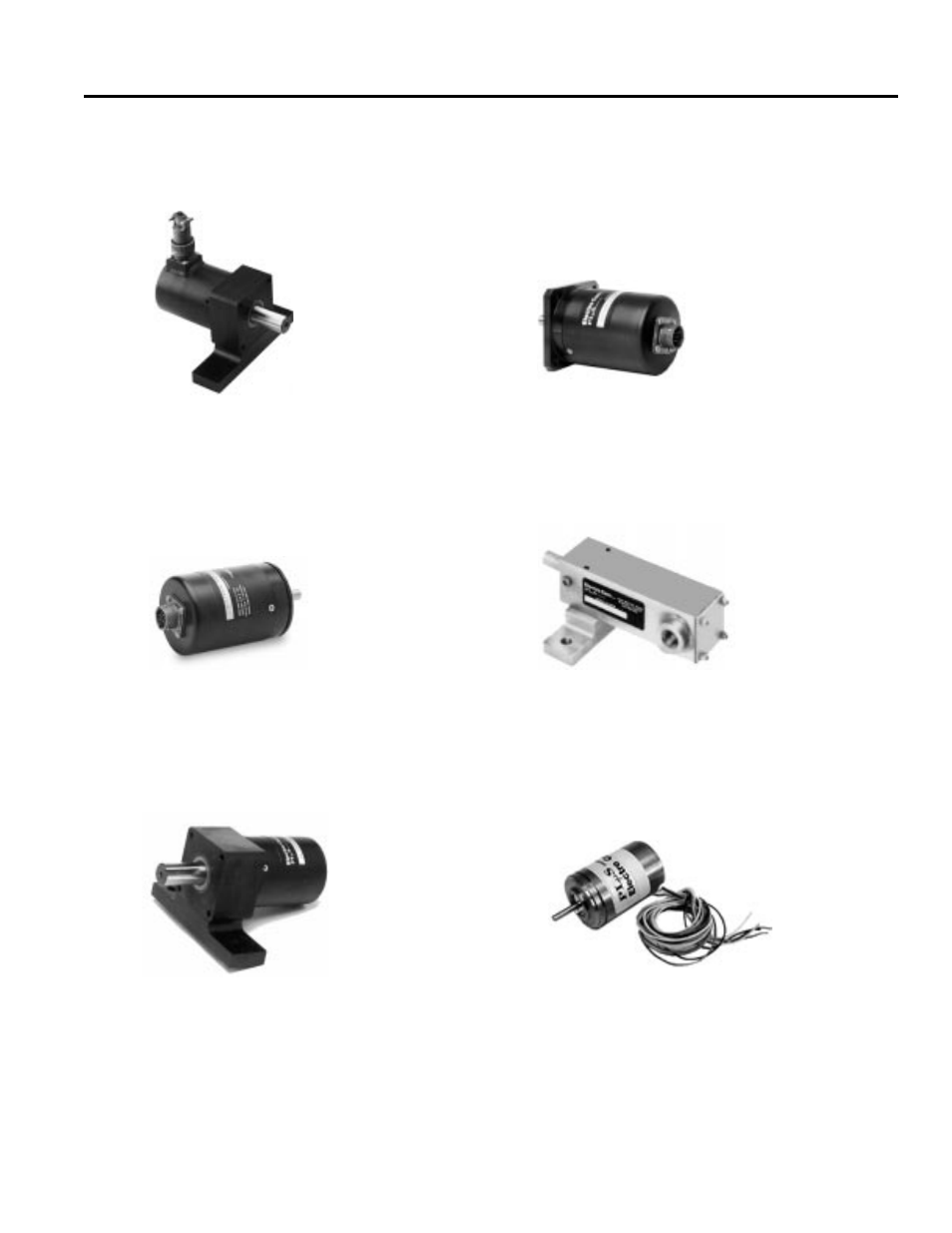

Resolvers
PS-5275-11-ADS
Foot Mount
• 3/4" Shaft
• Top side, Right side, Left side or Rear connection
PS-5238-11-ADR
Flange Mount
• 3/8" or 5/8" Shaft
• Top side, Right side, Left side or Rear connection
PS-5262-11-CTG
Stainless Steel
• 5/8" Shaft
• Left side or Right side connection
PS-5212-11-SVW
Unhoused Servo Mount
• .120" Shaft
• Standard Size 11
PS-5275-051-ADL*
Foot Mount Geared
• 3/4" Shaft
• 5:1 Gear Ratio
• Top side, Right side or Left side connection
PS-5238-11-SDR
Servo Mount
• 3/8" Shaft
• Top side, Right side, Left side or Rear connection
*Also available in 10:1 and 36:1 Ratio
The 7-pin resolver connector is supplied as part of the PL
µ
S Programmable Limit Switch Controllers effective with date
code 9723. Prior to that date code, connectors were supplied on the resolver cables. Spare 7-pin resolver connectors
that plug into controllers may be purchased under part number PS-5300-01-TER. Some resolver configurations are
shown below. See Price List (Literature #202) for complete listing.
9
