PS-6X44 Controllers & PS-6400 Keypad/Display Dimensions
8

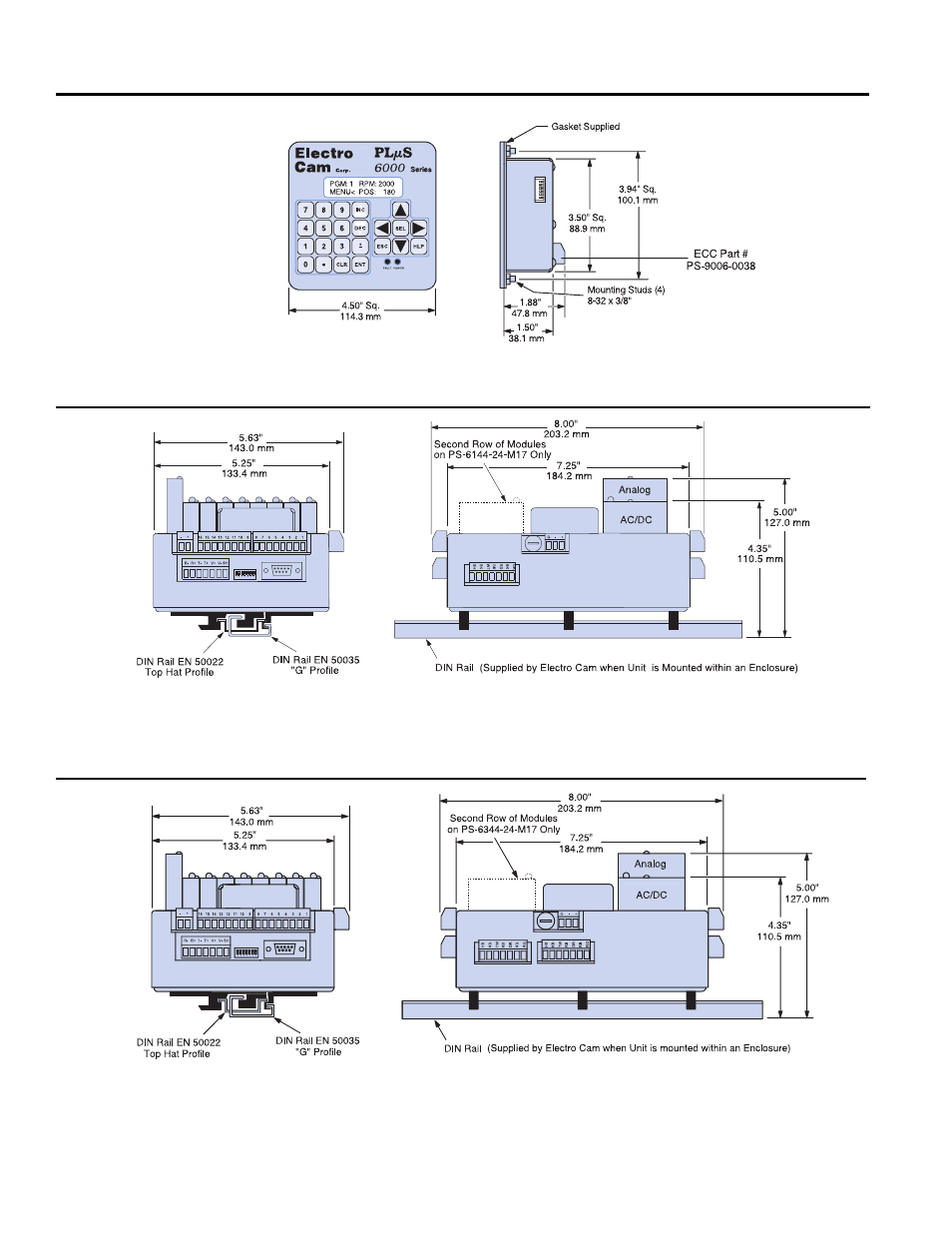

Figure 3
PS-6400-24-001 Keypad/Display
Figure 4
PS-6144-24-M17
PS-6144-24-P16M09 (Sourcing
†
)
PS-6144-24-N16M09 (Sinking
†
)
Figure 5
PS-6344-24-M17
PS-6344-24-P16M09 (Sourcing
†
)
PS-6344-24-N16M09 (Sinking
†
)
†
See page 12 for sinking/sourcing definitions.
