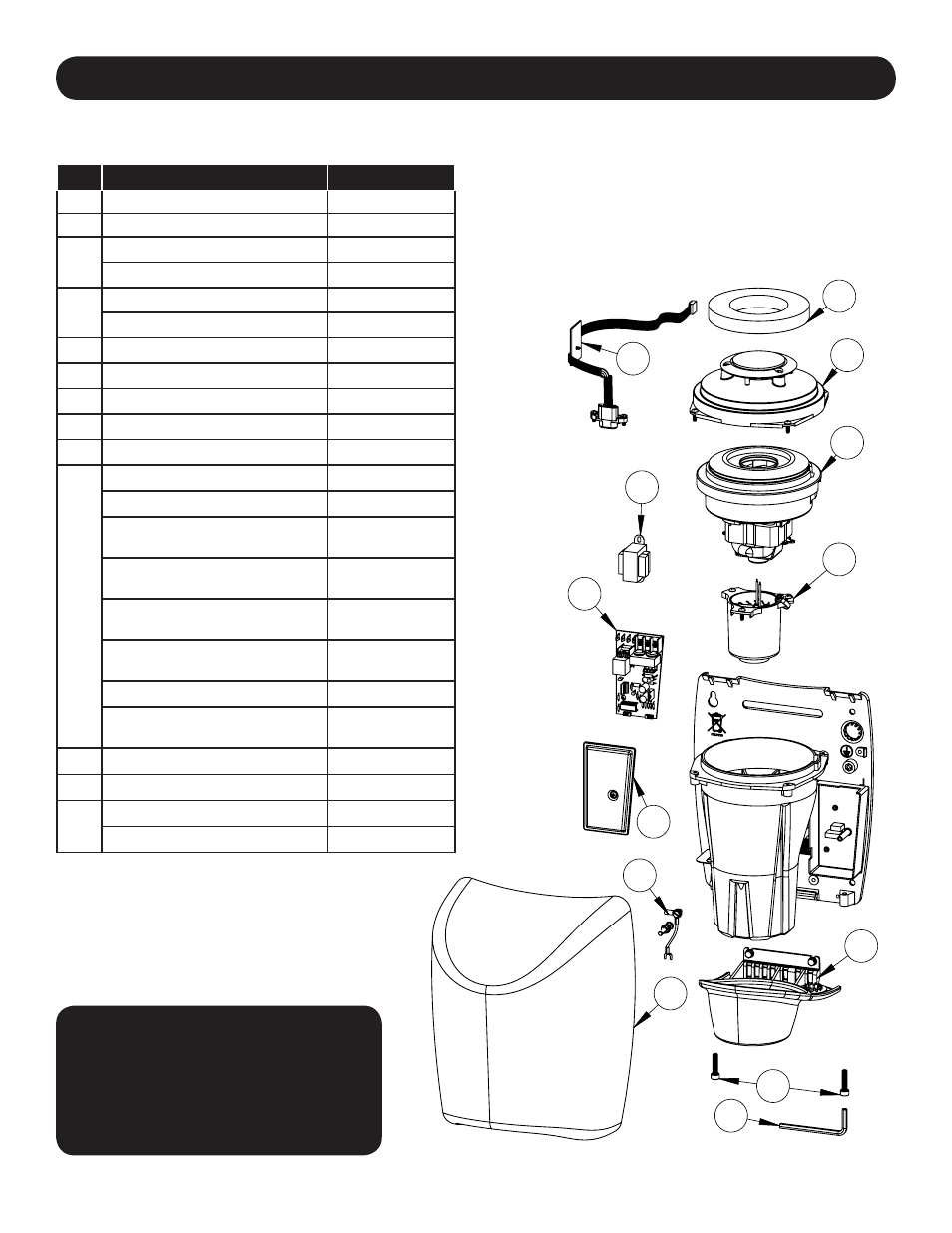

Repair Parts List For SMARTdri™ and SMARTdri Plus Hand Dryers
All kits include fasteners needed for
installation.Part Number for Cover Assy.
(Reference Number 10) varies with model
number for hand dryer.
Parts List
For Repair Parts, visit www.WorldDryer.com
Please provide following information:
- Model number
- Serial number
- Part description and number shown in
parts list
# Description Part Number
1 Kit, Sensor 49-10108K
2 Kit, Dryer Controls 16-KK
3
Kit, Motor- 120V 32-K120K
Kit, Motor - 240V 32-K240K
4
Kit, Heating Element - 120V 21-1120K
Kit, Heating Element - 240V 21-1240K
5 Kit, Plenum Cap Assy 47-0818092AK
6 Air Filter 93-120309
7 Kit, Controls Cover 20-0815093K
8 Kit, Nozzle 30-K10109K
9 Kit, Grounding - Model K 23-120609
10
Cover Assy - Alum - White 20-K974
Cover Assy - Alum - Black 20-K162
Cover Assy - Alum - Polished/
Bright Chrome
20-K970
Cover Assy - Alum - Brushed/
Satin Chrome
20-K971
Cover Assy - Stainless Steel -
Polished/ Bright
20-K972
Cover Assy - Stainless Steel -
Brushed/ Satin
20-K973
Cover Assy - Steel - White 20-K975
Cover Assy - Cast Iron - Porce-
lain Enamel
20-K976
11 Kit, Security Screws 46-040222K
12 Wrench, Security 56-40189
13
Transformer - 120V 50-K120K
Transformer - 240V 50-K277K
