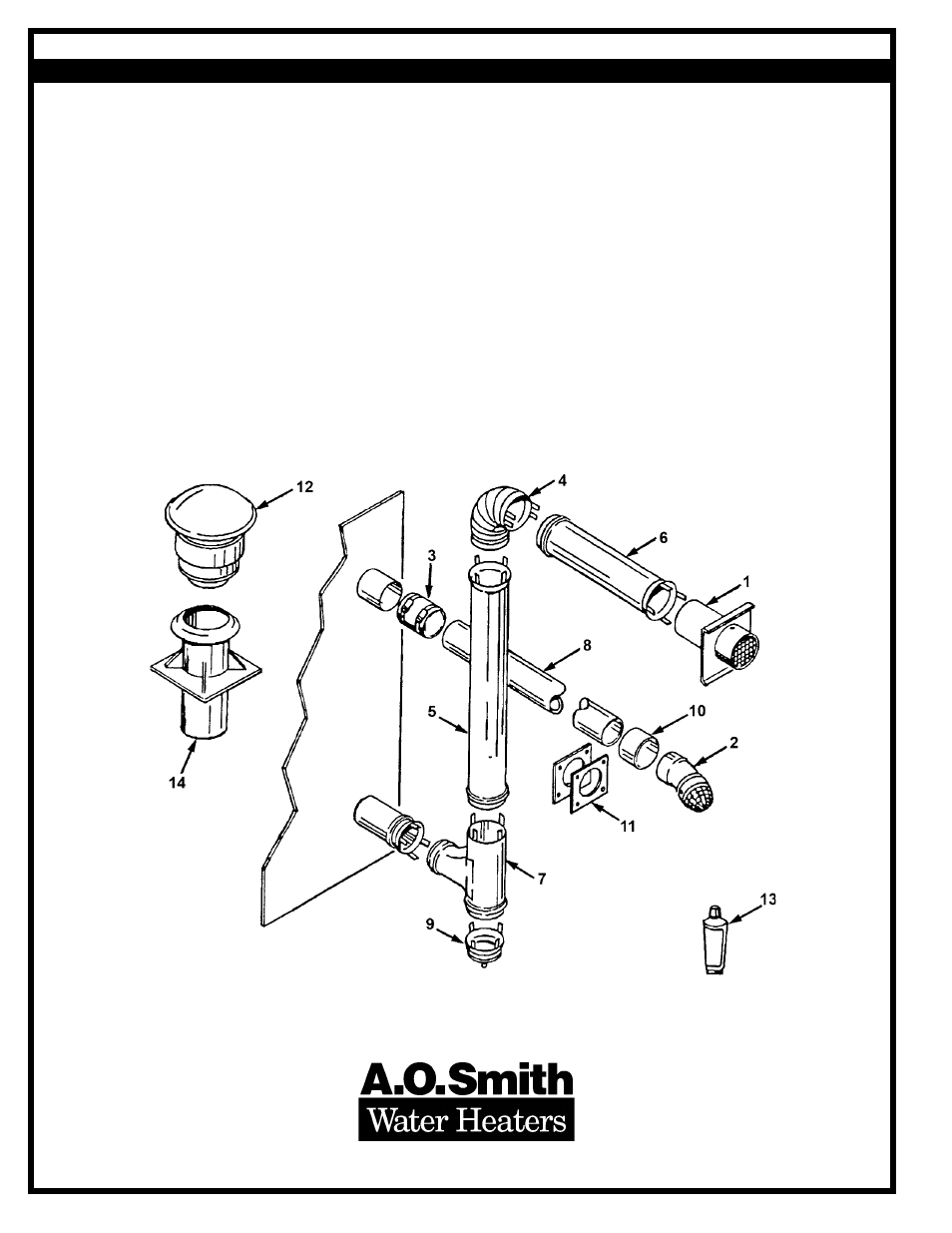

Vent Kit Parts List
Item Description VB/VW 500/750/1000
1 ............. Vent Terminal (Horizontal) ......................................................................................................................... 191960
2 .............. Vent Terminal Inlet Assembly .................................................................................................................... 191965
3 .............. Coupling - Flex Adapter ............................................................................................................................. 191967
4 .............. Elbow - 90° ................................................................................................................................................. 192032
5 .............. Pipe - SAF - T 48" ..................................................................................................................................... 192039(1)
6 .............. Pipe - SAF - T 36" ...................................................................................................................................... 192039-1
7 .............. Boot - Tee ................................................................................................................................................... 192034
8 .............. Pipe - Vent PVC ......................................................................................................................................... 192035-1
9 .............. Condensate Drain Cover ........................................................................................................................... 192036
10 ............. Coupling - PVC .......................................................................................................................................... 191988
11 ............. Wall Cover Plate ....................................................................................................................................... 192111(2)
12 ............. Vent Terminal (Vertical) ............................................................................................................................. 191777
13 ............. Cauking - Silicone ..................................................................................................................................... 191482-1
14 ............. Support System - Roof Jack ...................................................................................................................... 192076
