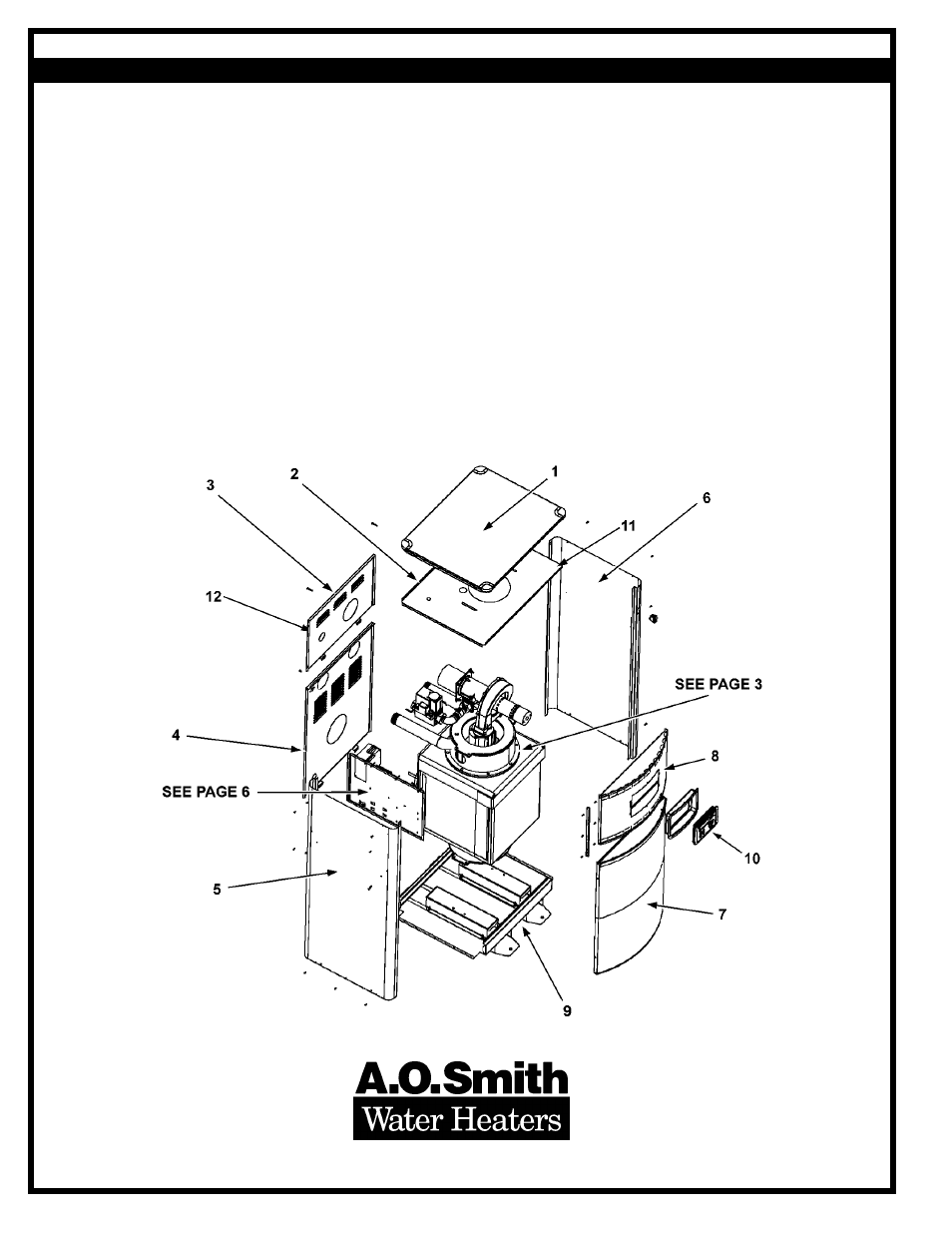

JACKET/ FRAME ASSEMBLY
Item Description VB/VW 500 VB/VW 750 VB/VW 1000
1 .............. Top/Corner Assembly .......................................... Call our Parts Fulfillment Department for replacement if neccessary.
2 .............. Plate ..................................................................... Call our Parts Fulfillment Department for replacement if neccessary.
3 .............. Upper Back Panel ................................................ Call our Parts Fulfillment Department for replacement if neccessary.
4 .............. Lower Back Panel ................................................ Call our Parts Fulfillment Department for replacement if neccessary.
5 .............. Left Side Panel ..................................................... Call our Parts Fulfillment Department for replacement if neccessary.
6 .............. Right Side Panel .................................................. Call our Parts Fulfillment Department for replacement if neccessary.
7 .............. Lower Curved Door Assembly ............................. Call our Parts Fulfillment Department for replacement if neccessary.
8 .............. Upper Curved Door Assembly ............................. Call our Parts Fulfillment Department for replacement if neccessary.
9 .............. Base Assembly .................................................... Call our Parts Fulfillment Department for replacement if neccessary.
10 ............. UIM (User Interface Module) ............................................ 211762-000 .................. 211762-000 ................ 211762-000
11 ............. 100VA Transformer .......................................................... 210449-000 .................. 210449-000 ................ 210449-000
12 ............. Alarm Bell (Optional Not Shown) ..................................... 211472-000 .................. 211472-000 ................ 211472-000
