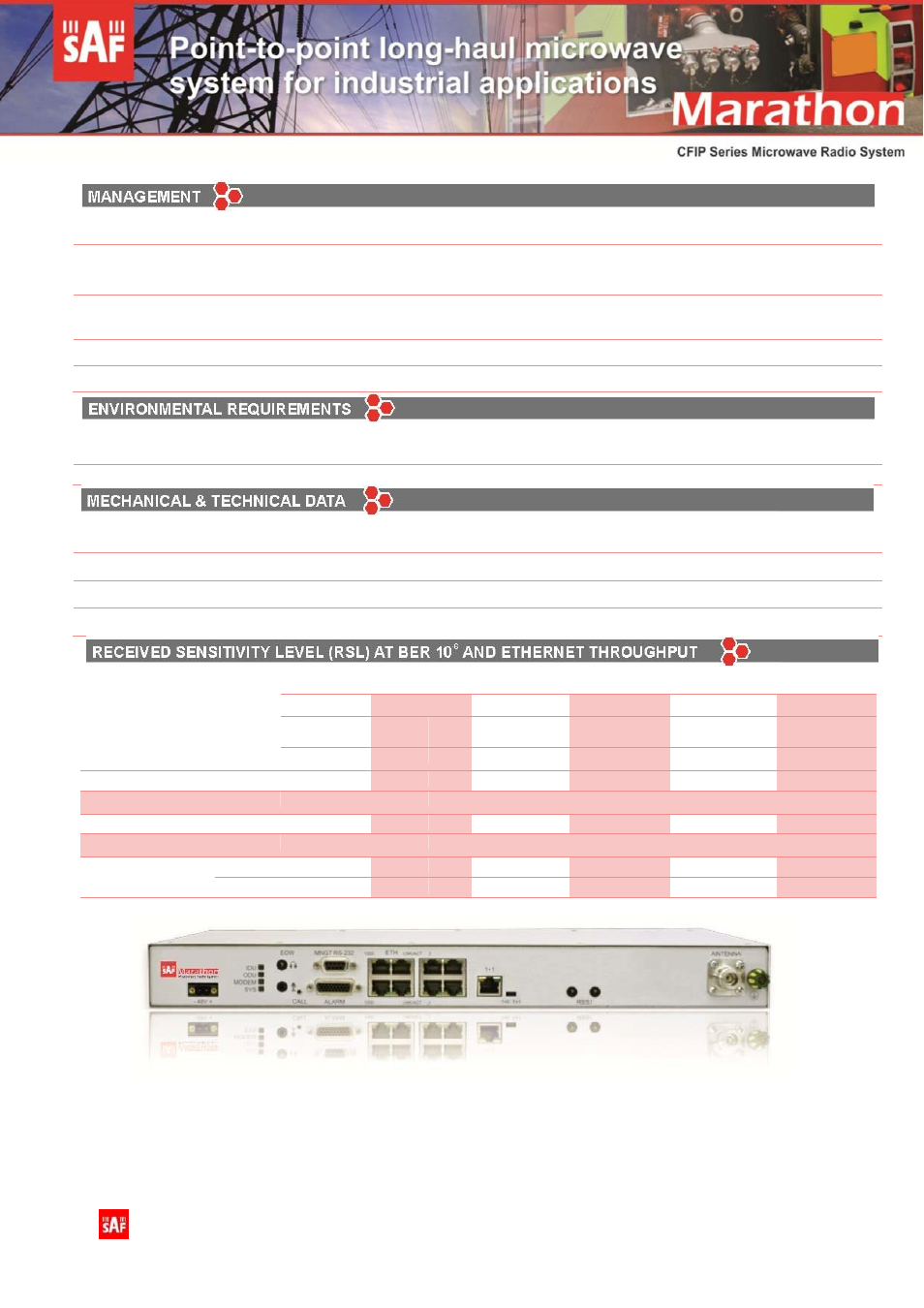

SAF Tehnika CFIP Marathon User Manual
Page 2
Management ports
Ethernet VLAN or Separate Ethernet (RJ45)
SNMP
Yes, SNMP traps, MIB, SNMP v1/v2c
Element Management System
Web based HTTP, Telnet, FTP, Serial ASCII
Performance graphs
Uptime, Rx level, Tx level, System temperature, Radial MSE, LDPC
decoder stress, constellation diagram, equalizer graph
Ethernet performance
Per port Ethernet counters, Enhanced radio Ethernet statistics
Loopbacks
E1, modem, RF loopback
Stationary use
Climatic Class 3.1E compliant (ETSI ETS 300 019-1-3); weather
protected locations
Temperature range
-5
o
to +55
o
C
Dimensions: HxWxD, mm / weight, kg
88x482x230 / 3.8
DC port
-40.5V to -57V DC (conforms to ETSI EN 300 132-2)
Built-in DC and antenna port surge protection
Conforms to ETSI EN 301 489-1; EN 61000-4-5; IEC 61000-4-5
Max. Power consumption
Up to 30W
Channel Bandwidth
Modulation
FEC*
0.5 MHz
1 MHz
1.75 MHz
2 MHz
3.5 MHz
4 MHz (AU)
RSL
Bit
rate
RSL
Bit
rate
RSL
Bit
rate
RSL
Bit
rate
RSL
Bit
rate
RSL
Bit
rate
dBm
Kbps
dBm
Kbps
dBm
Kbps
dBm
Kbps
dBm
Kbps
dBm
Kbps
4QAM
Strong
-105
309
-104
802
-101
1635
-100
2220
-98
3808
-97
4139
16QAM
Strong
-100
827
-98
1790
-96
3430
-93
4595
-91
7848
-90
8510
32QAM
Strong
-96
1008
-94
2303
-91
4358
-90
5775
-88
9760
-87
10574
64 QAM
Strong
-93
1321
-90
3146
-88
5883
-87
7333
-84
13166
-84
14274
128 QAM
Strong
-90
1888
-87
3820
-84
7094
-84
8818
-81
15808
-80
17132
Weak
-87
2062
-83
4148
-80
7691
-80
9562
-78
17138
-78
18575
* Forward Error Correction (FEC) can be optimized either for sensitivity (Strong FEC) or capacity (Weak FEC)
CFIP Marathon is a trademark of SAF Tehnika JSC. All rights reserved. The content is subject to change without prior
notice.
© SAF Tehnika JSC
CFIP Marathon series
Ver. 1.4, 2013
Microwave Radio System
