Components

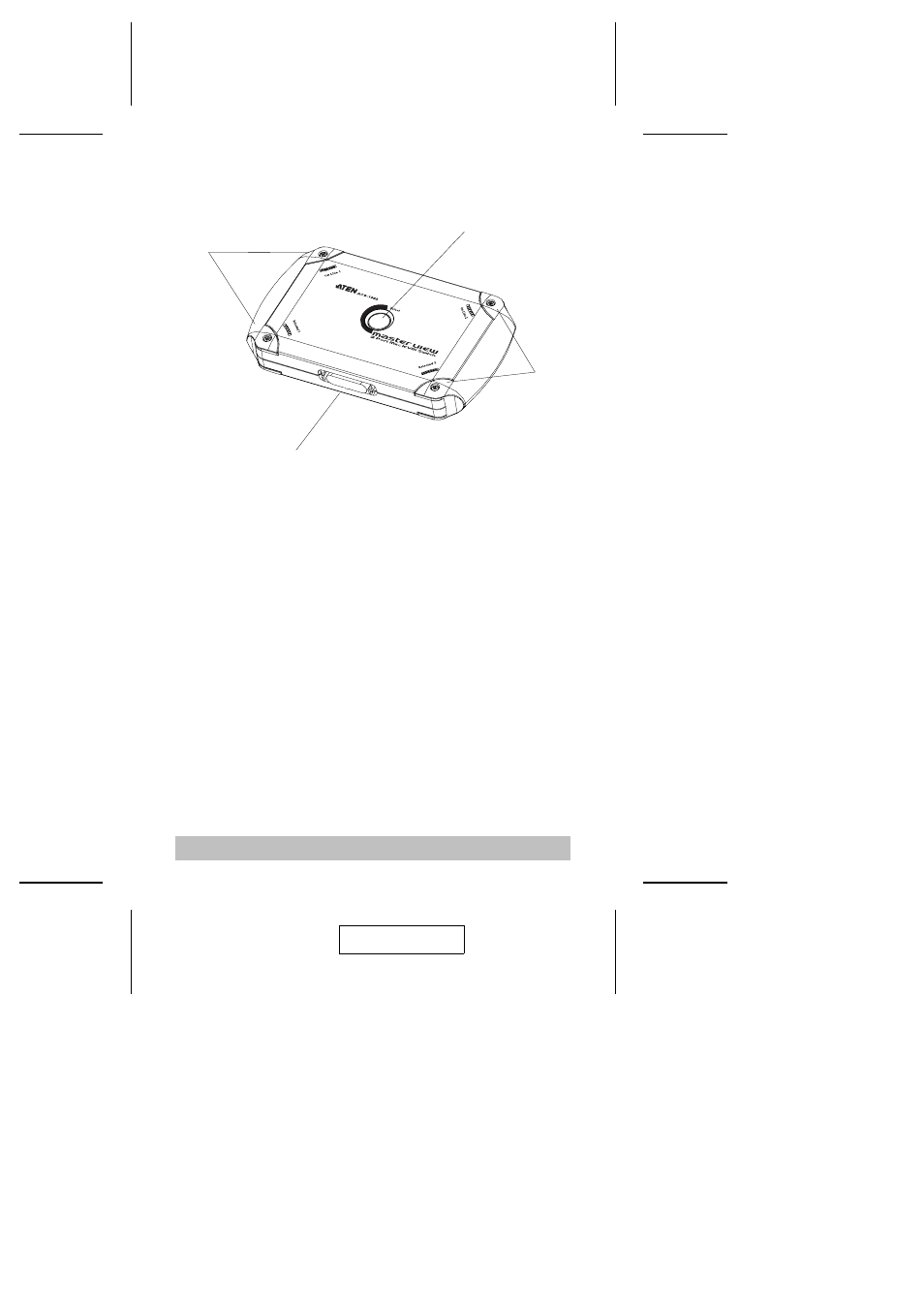

Front View:
1. Port Selection Switch
Press this switch to toggle the KVM focus between the two
ports.
2. Port LEDs
M The On Line LED lights ORANGE to indicate that the
computer connected to its corresponding port is up and
running.
M
The Selected LED lights GREEN to indicate that the
computer connected to its corresponding port is the one
that has the KVM focus.
3. ADC Console Port
The cable from your ADC display plugs in here.
