42
Actiontec 54 Mbps Wireless DSL Gateway User Manual
43
Chapter 4 Using Advanced Setup

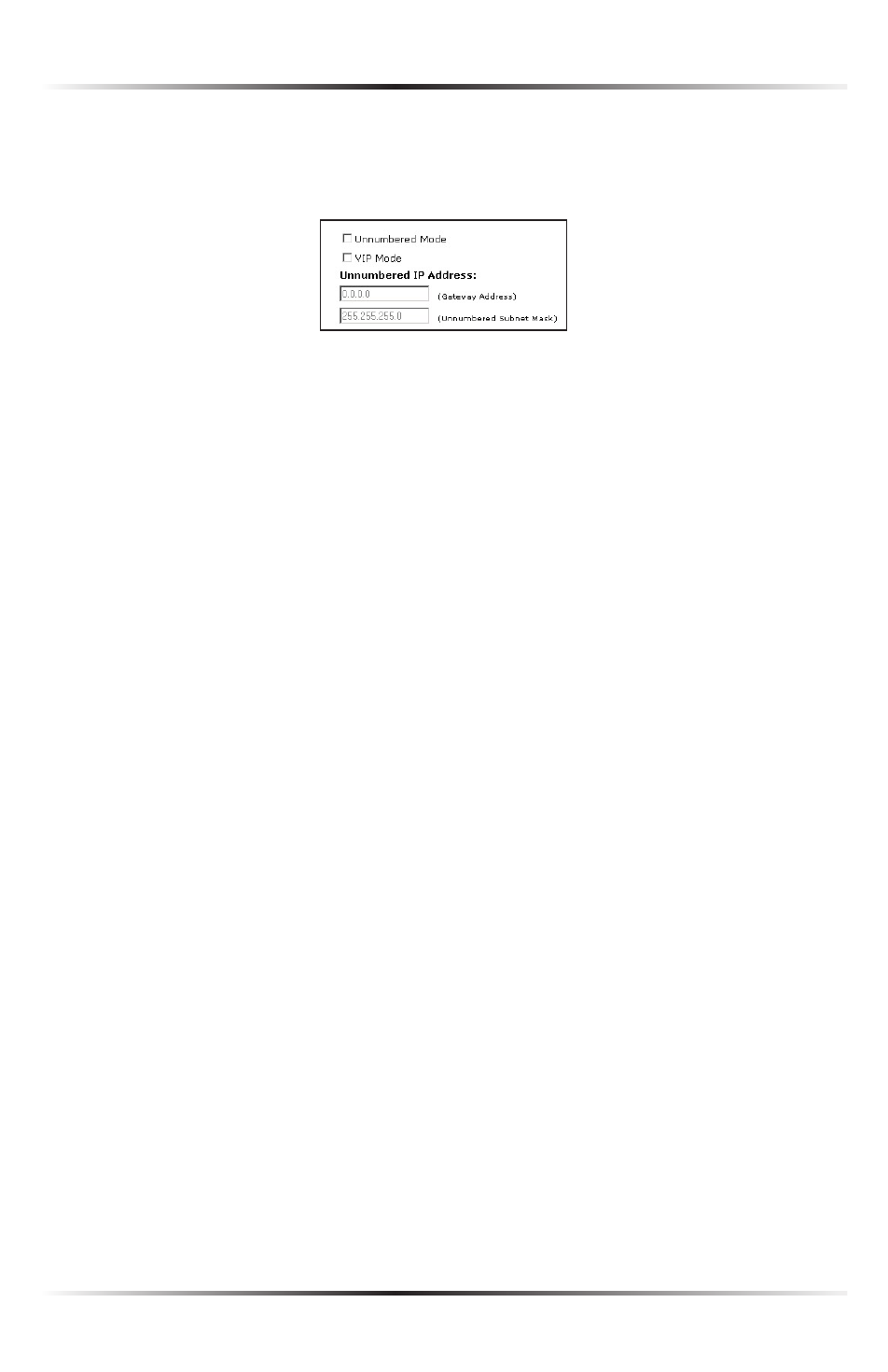

The Unnumbered Mode feature automatically configures the appropriate IP rout-
ing for the IP Address block. The IP route will bypass NAT , enabling the public IP s
to be routed WAN -to- LAN , as well as LAN -to- WAN .
☞
Note: The IP Address information should be obtained from the
ISP when purchasing a block of public static IP address. Contact
the ISP if this information was not received.
VIP Mode - This feature is used in conjunction with Unnumbered Mode. When
VIP Mode is activated, the Gateway uses NAT for private IP Addressing for the Local
Area Network ( LAN ), allowing both Public IP Addressing and Private IP Addressing to
be configured to the LAN simultaneously, while the DHCP server is reserved for Private
IP Addressing. All computers using Public IP Addresses with Unnumbered Mode must
have the Public IP Addresses statically assigned. Enter the static IP address in the text
boxes below “Unnumbered IP Address.”
After configuring your settings, click Next, then click Save and Restart to make all
changes permanent.
