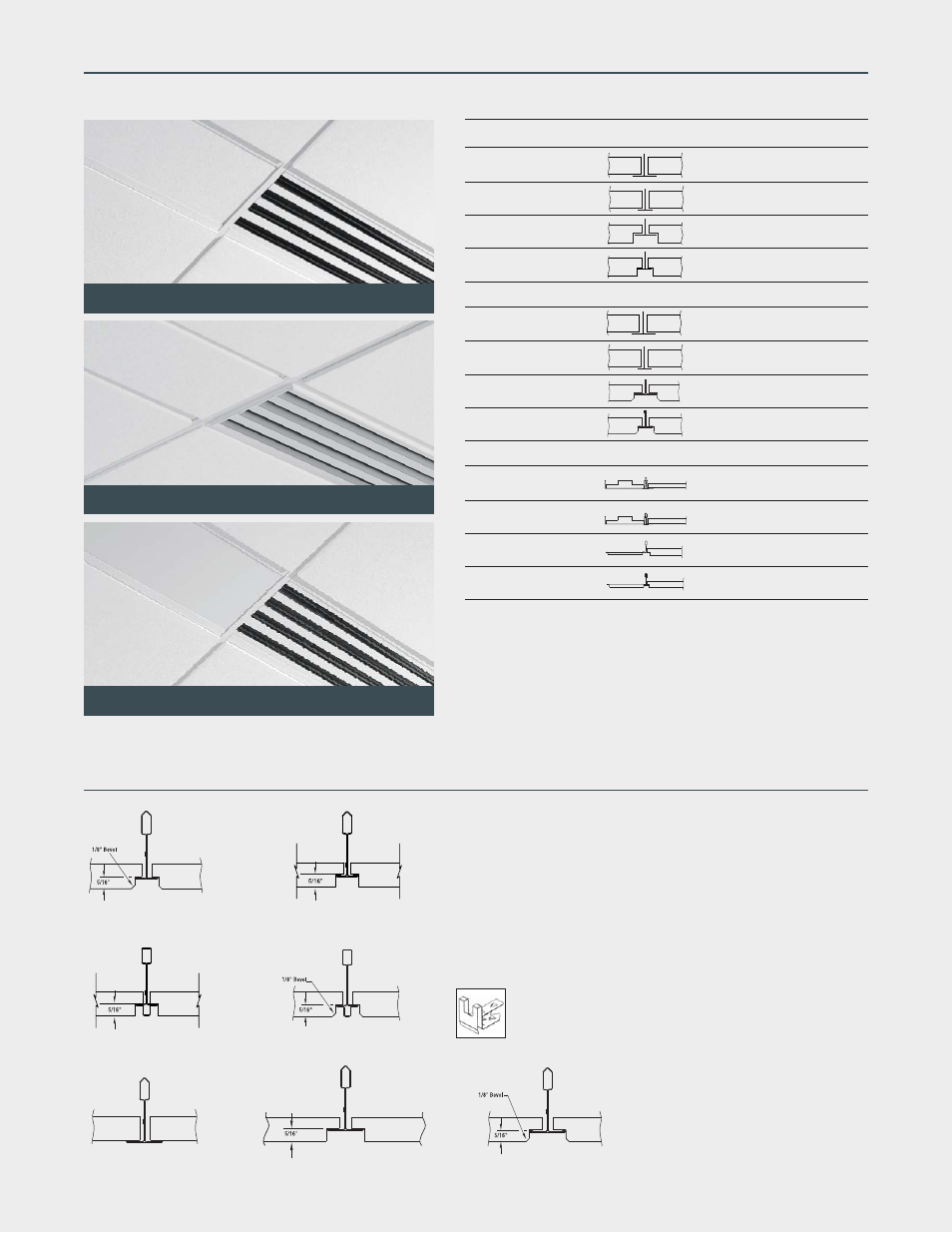

Armstrong World Industries Ceiling Systems TechZone - Manual (Page 17)

Stabilizer Clip for Optima, Item 435
Recommended for panels 5' and greater in length. Ordered separately.
Note: Panels 5' to 8' – One clip installed near the mid-point of each long edge.
Grid Edge Item
Face Profile Number Dimensions
OPTIMA Technical Panels
15/16" Square 1400 6" x 48" x 1"
Lay-In 1404 6" x 60" x 1"
9/16" Square 1401 6" x 48" x 1"
Lay-In 1405 6" x 60" x 1"
15/16" Square 1402 6" x 48" x 1"
Tegular 1406 6" x 60" x 1"
9/16" Square 1403 6" x 48" x 1"
Tegular 1407 6" x 60" x 1"
ULTIMA Technical Panels
15/16" Square 1420 6" x 48" x 3/4"
or 9/16" Lay-In
9/16" Square 1425 6" x 60" x 3/4"
Lay-In
15/16" Beveled 1422 6" x 48" x 3/4"
Tegular
9/16" Beveled 1423 6" x 48" x 3/4"
Tegular 1427 6" x 60" x 3/4"
METAL Technical Panels*
15/16" Square 1650 6" x 48" x 0.025"
Lay-In 1651 6" x 60" x 0.025"
9/16" Square 1652 6" x 48" x 0.025"
Lay-In 1653 6" x 60" x 0.025"
15/16" Square 1654 6" x 48" x 0.025"
Tegular 1655 6" x 60" x 0.025"
9/16" Square 1656 6" x 48" x 0.025"
Tegular 1657 6" x 60" x 0.025"
*MATERIAL: Galvanized Powder Coated Steel - nominal thickness .025"
SURFACE FINISH: Factory-applied powder-coated finish (post-coated)
COLOR: Armstrong has coordinated the finishes of light fixtures, diffusers and
metal technical panels and suspension systems
FIRE PERFORMANCE: Class A flame spread 25 or under per ASTM E 1264
WEIGHT; SQUARE FEET/CARTON: Visit the web for details
RECYCLED CONTENT: 25%
■ Hot-dipped galvanized coating inhibits red rusting better than
electrogalvanized or painted systems
■ Rotary-stitched during manufacture by a patented method
for additional torsional strength and extra stability during installation
■ 10-year limited warranty; 15-year with HumiGuard ® Plus products
■ Recycled Content: 25%
Prelude 15/16"
Square Lay-In
Prelude 15/16"
Square Tegular
Suprafine 9/16"
Square Tegular
Prelude 15/16"
Beveled Tegular
Interlude 9/16"
Beveled Tegular
Suprafine 9/16"
Beveled Tegular
Interlude 9/16"
Square Tegular
TechZone Technical Panels
Optima Tegular field panel with Optima
Lay-in technical panel
Optima Tegular field panel with Metal
Lay-In technical panel
Ultima Beveled Tegular field panel with Ultima
Beveled Tegular technical panel
TechZone Suspension Systems
