9

Section Two: Connect the Modem/Router

2.4.2 for more than Four PCs with RJ45 Cable

......

ADSL

RJ-11

HUB/Switch

2.5 LED Indicators

The ADSL Router modem features LED indicators on the front panel that
report modem status:
POWER

Red

Power Light / Steady when power is on.

LAN1

Green

Port1 Link / Blinking during LAN Activity.

LAN2

Green

Port2 Link / Blinking during LAN Activity.

LAN3

Green

Port3 Link / Blinking during LAN Activity.

LAN4

Green

Port4 Link / Blinking during LAN Activity.

WLAN Green Wireless Activity / Blinking during data transfer.
ADSL

Green

WAN Link / Steady during ADSL line status is
Showtime

ACT

Green

WAN Activity / Blinking during data transfer.

RJ-45

.
.
.

.
.
.

RJ-11

(with Wireless Card)

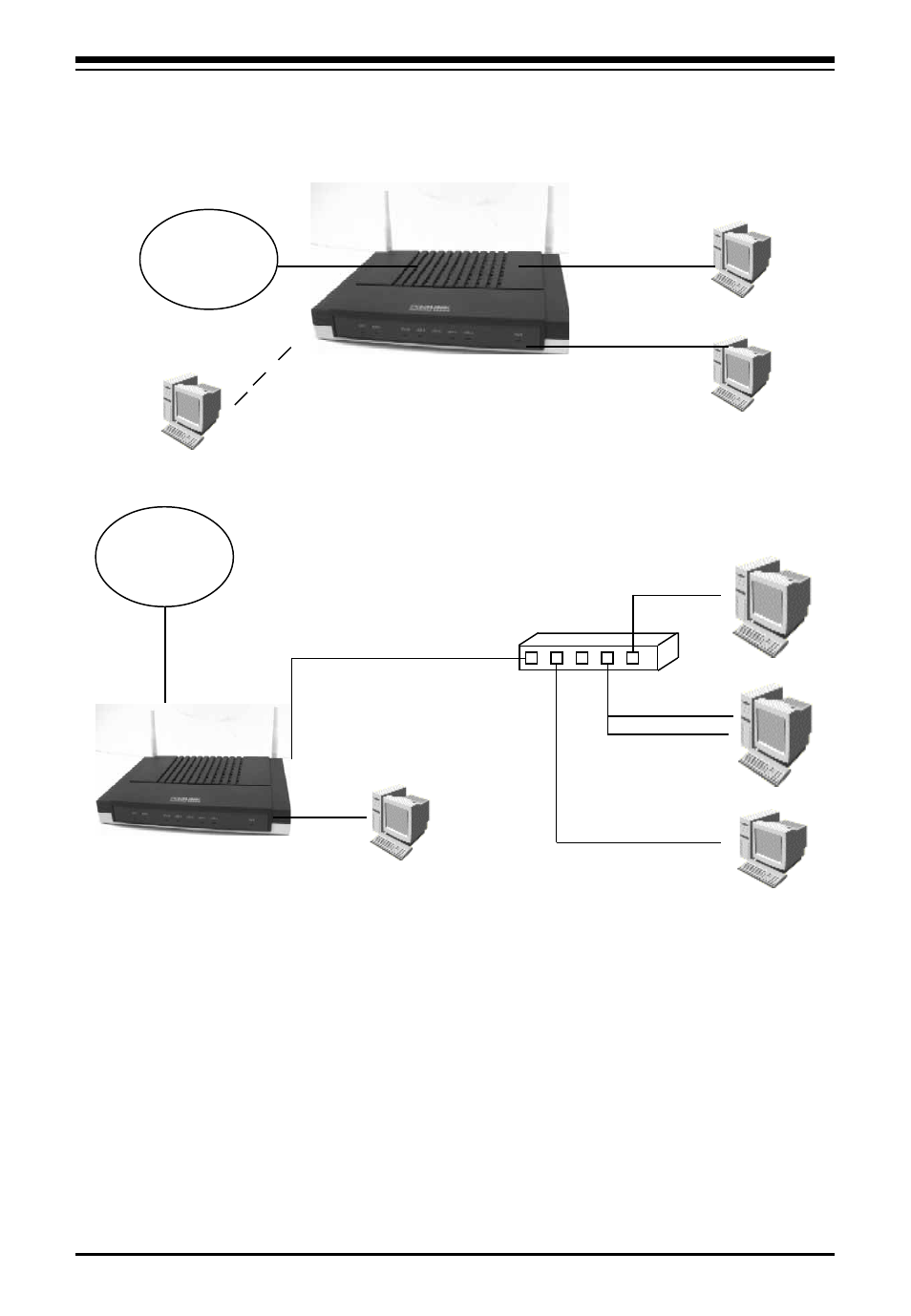

2.4 Network Connections

2.4.1 for Four PCs with RJ45 Cable

ADSL
