SPECIFICATIONS

Model Numbers

RT3300MC-VARI . . . . . . . . . . .NTSC Camera, 1/4-inch 3.0 - 6.0 mm

vari-focal lens, black housing

RT3300MC-VARIW . . . . . . . . .NTSC Camera, 1/4-inch 3.0 - 6.0 mm

vari-focal lens, white housing

Operational

Pan Travel . . . . . . . . . . . . . . . . . .355° with end stop
Tilt Travel . . . . . . . . . . . . . . . . . .15° to 90°
Internal Synchronization . . . .Built-in sync generator
Video Output Connector . . . .Female BNC

Camera

Imager . . . . . . . . . . . . . . . . . . . . .Interline transfer 1/4-inch CCD array
Scanning System . . . . . . . . . . .2:1 interlace
Video Output . . . . . . . . . . . . . .1.0 Vp-p, 75 Ω, composite
S/N Ratio . . . . . . . . . . . . . . . . . .>46 dB (AGC off)
Horizontal Resolution . . . . . .330 lines at center
Minimum Illumination . . . . .0.8 lux at 40 IRE
White Balance . . . . . . . . . . . . . .Automatic, 2500°K to 7500°K
AES . . . . . . . . . . . . . . . . . . . . . . . .1/60 to 1/100,000 sec
Effective Pixels . . . . . . . . . . . . . .510 (H) x 492 (V)
Horizontal . . . . . . . . . . . . . . . . .15.734 kHz
Vertical . . . . . . . . . . . . . . . . . . . .59.9 Hz

Lens

Design . . . . . . . . . . . . . . . . . . . . .Vari-focal, auto iris
Focal Length . . . . . . . . . . . . . . .3.0 - 6.0 mm
Aperture . . . . . . . . . . . . . . . . . . .f1.4
Viewing Angle

Horizontal . . . . . . . . . . . . . .105.1° - 53.2°
Vertical . . . . . . . . . . . . . . . . . .77.4° - 39.8°

Electrical

Input Voltage . . . . . . . . . . . . . . .12 VDC (±20%)
Power Consumption . . . . . . . .2.2 watts, maximum

Mechanical

Dimensions (D x H) . . . . . . . . .114 x 77.5 mm (4.49 x 3.05 in)
Unit Weight

(camera/lens/housing) . . .0.06 kg (0.13 lbs)

Shipping Weight . . . . . . . . . . . .0.82 kg (1.80 lbs)
Housing Material . . . . . . . . . . .ABS plastic
Housing Color . . . . . . . . . . . . . .Black or White

Environmental

Operating Environment . . . . .Indoor
Operating Temperature . . . . .-10˚ to 50˚C (14˚ to 122˚F)
Humidity . . . . . . . . . . . . . . . . . .85% RH (non-condensing)
Storage Temperature . . . . . . . .-20˚ to 70˚C (-4˚ to 158˚F)

Regulatory

Emissions . . . . . . . . . . . . . . . . . .FCC: Part 15, Class A
Safety . . . . . . . . . . . . . . . . . . . . . .UL: UL2044

cUL: C22-2, No. 1-98

AMERICAN DYNAMICS RT3300MC MINI-CAMERA PRE-PACK

Product specifications and availability subject to
change without notice.
Certain product names mentioned herein may be trade
names and/or registered trademarks of other companies.

VS315-02 04/03 L

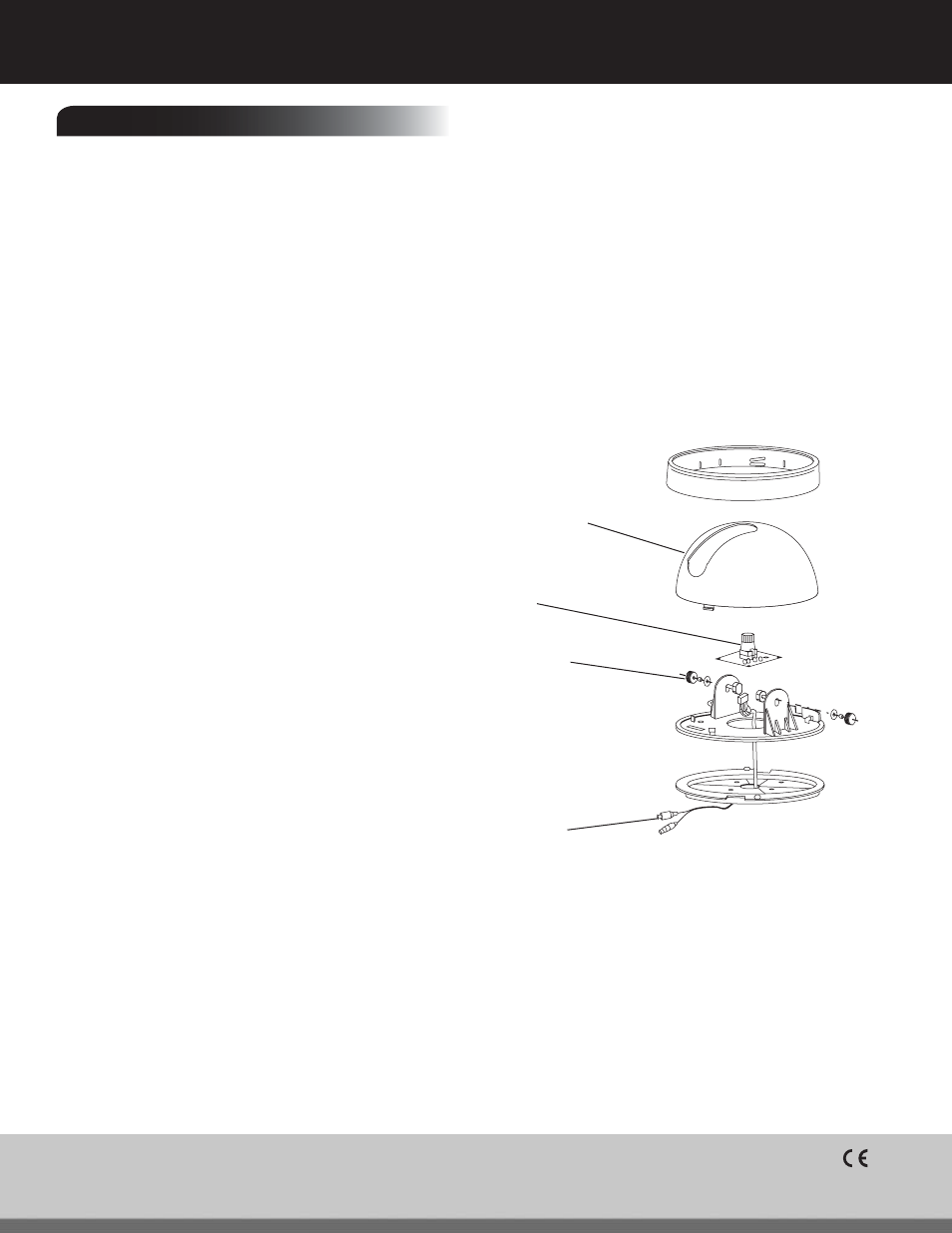

Camera Housing

Camera

Set Screws (2)

Power and
Video Cables
