ADJUSTMENTS
PowerHold Adjustments
The Operating range is not adjustable on a
PowerHold restraint.
Proximity switch Adjustment and replacement.
A. Locate and remove four screws and cover on
front of PowerHold assembly.
B. Adjust PRS 1. With the “Z’” bar rotated
directly over the prox switch. The prox switch
distance should between 1/16” and 1/8”.
C. Adjust PRS 2. The #2 prox switch must be
threaded in until flush with the latch block.
Turn prox switch out (CCW) until switch is no
longer flush with the latch block.
IMPORTANT: Make sure that the wire from the prox
switches are clear of all moving parts.

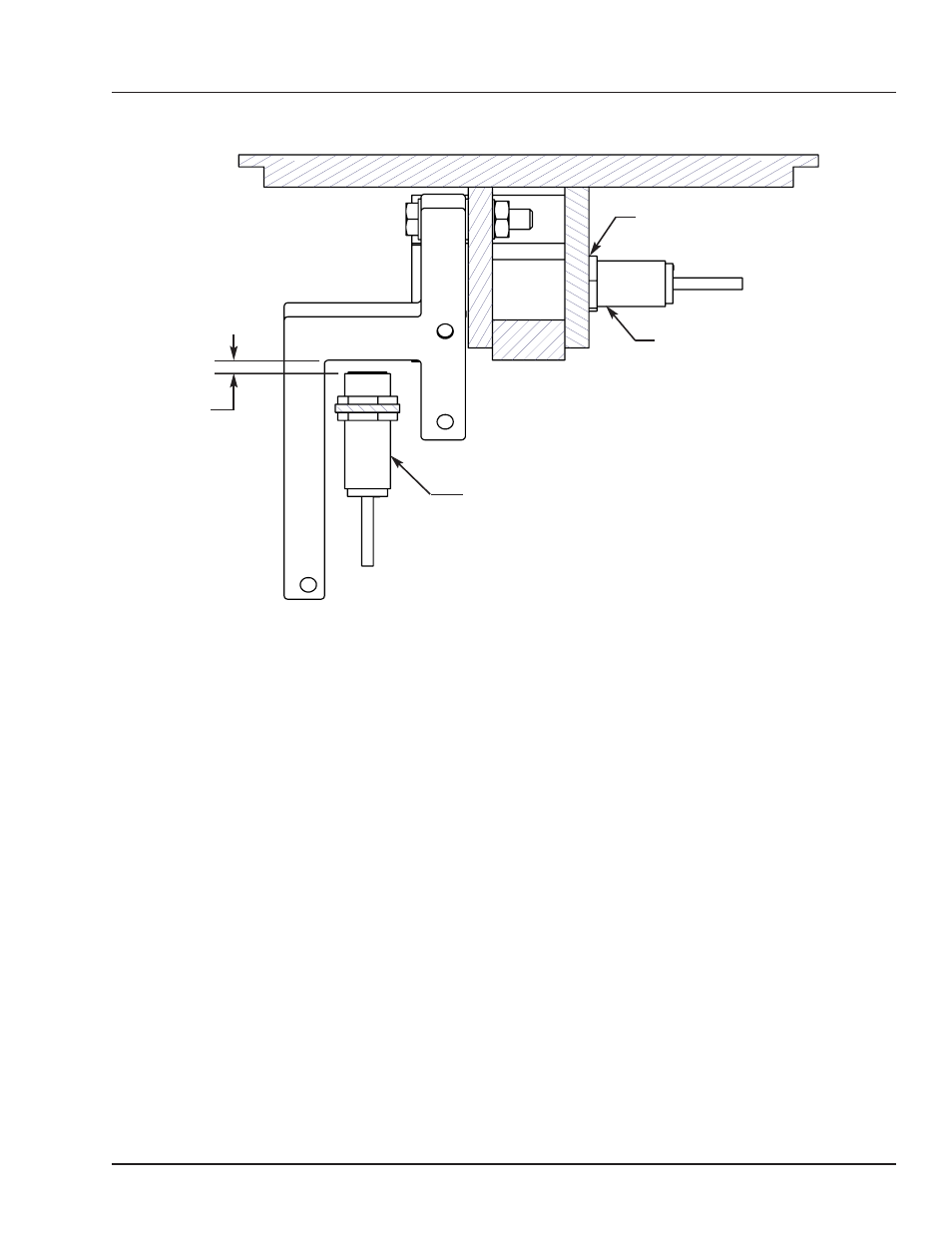

1/16 min
1/8 max
Install prox flush then back out
(CCW) just past flush.
Prox Switch PRS 1
INPUT #3
Prox Switch PRS 2
INPUT #4
