INSTALLATION

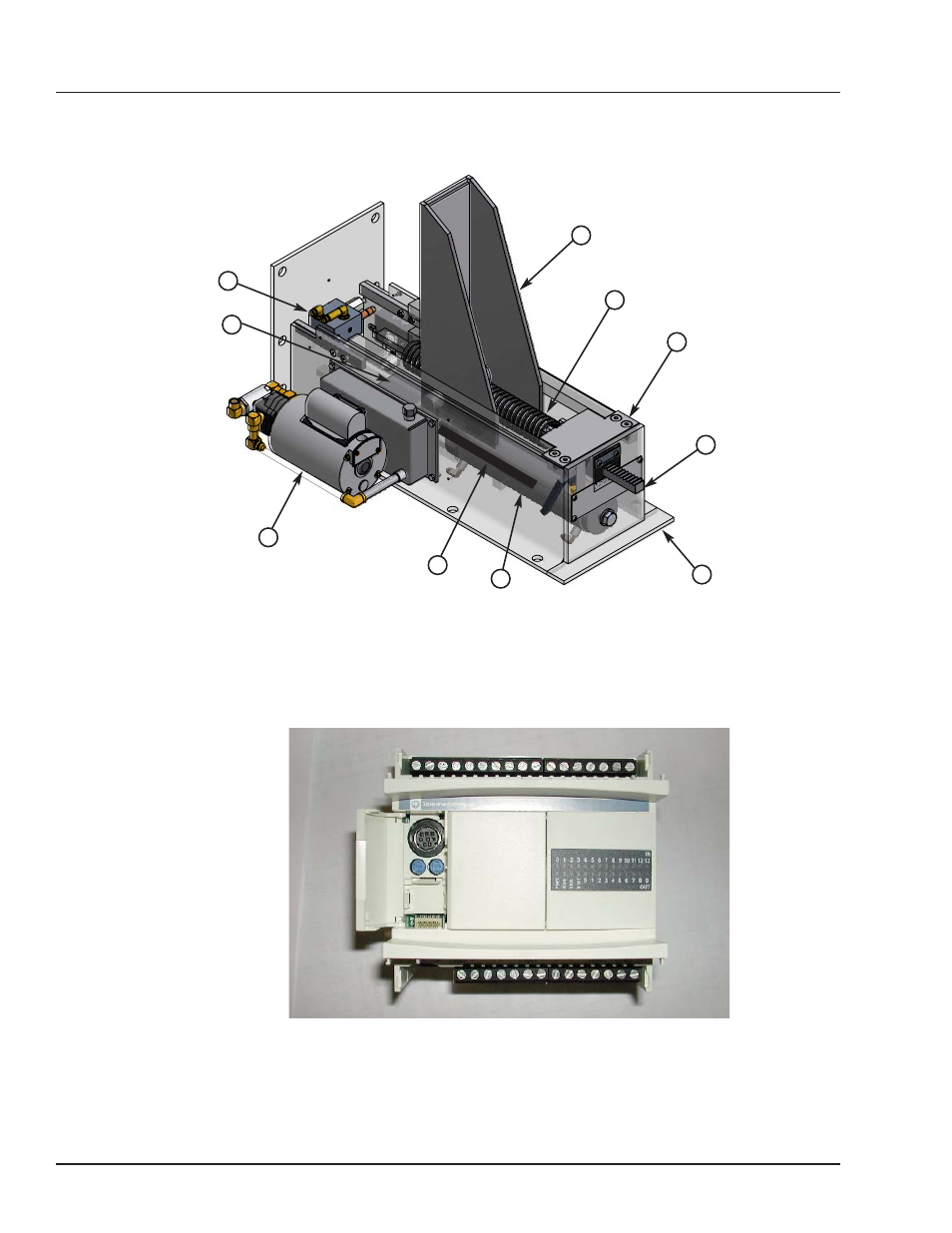

Component Identification.
A —Weldment
B —Latch Assembly
C —Hydraulic Cylinder
D — Power Pack SC Only
E — Valve Block
F — Shoe
G — Rack Weldment
H — Slide Block
I — Push Rod
J — Spring
“TWIDO” Programmable Logic Controller
I
H
A
D
F
E
G
B
C
J
4111-0016 — November,2008
