INTRODUCTION
8 4111-0013 — Aug. 2007
Dec. 2008

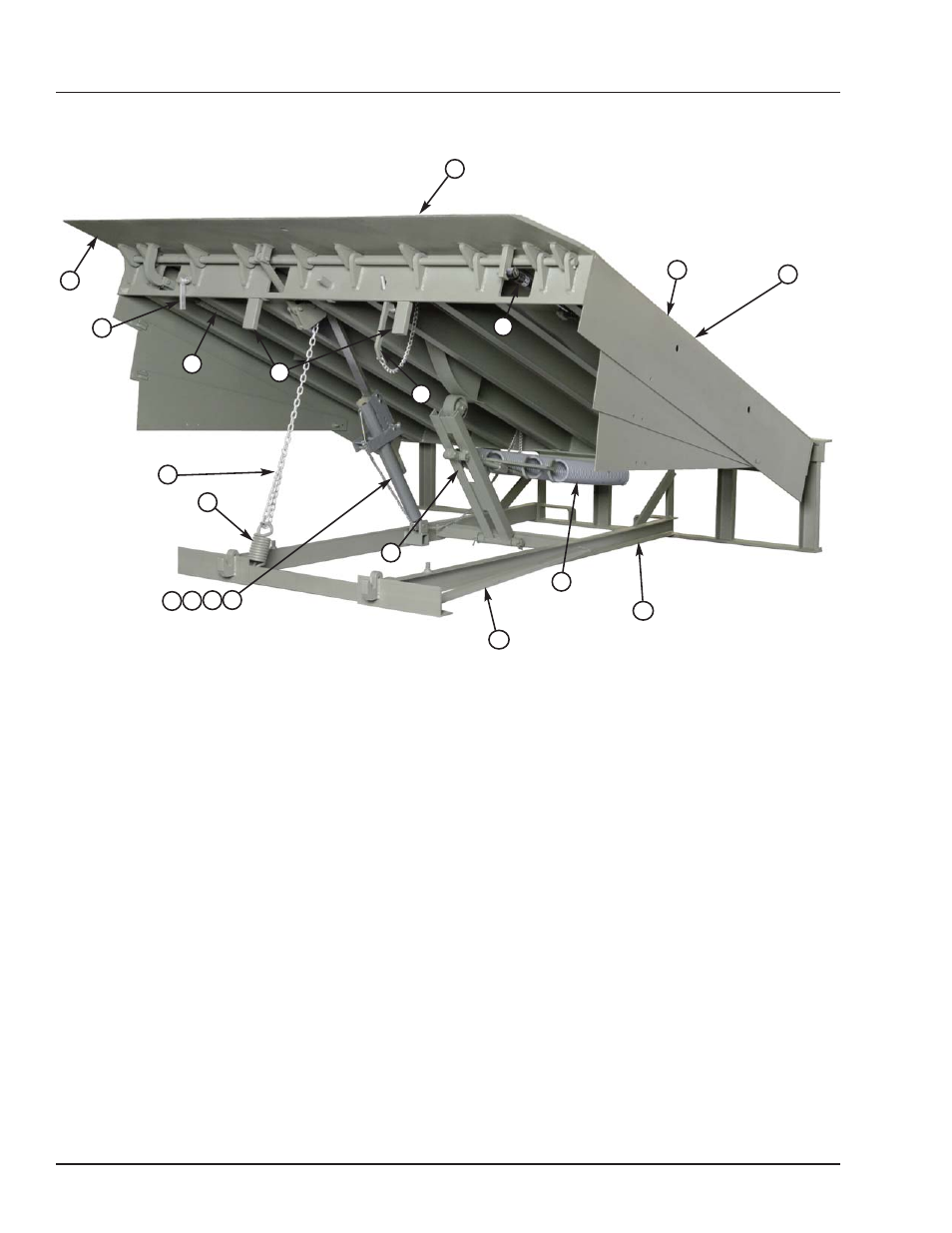

Component Identification
A — Lip
B — Lip Maintenance Prop
C — Platform
D — Lip Link
E — Lip Assist Rod F — Platform Release Ring
G — Ratchet Pawl
H — Ratchet Bar
J — Pawl Spring
K — Main Frame L — Platform Maintenance Prop
M— Hold-Down Mechanism
N — Safety Leg
P — Lip (Snubber) Spring
Q — Lip Shock Absorber R— Safety Leg Linkage
S — Safety Leg Pull Ring
T — Lift Arm Assembly
U — Lift (Main) Spring
Assembly
A
E
C
B
F
D
U
T
S
Q
R
N
M G H J
P
K
L
