NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

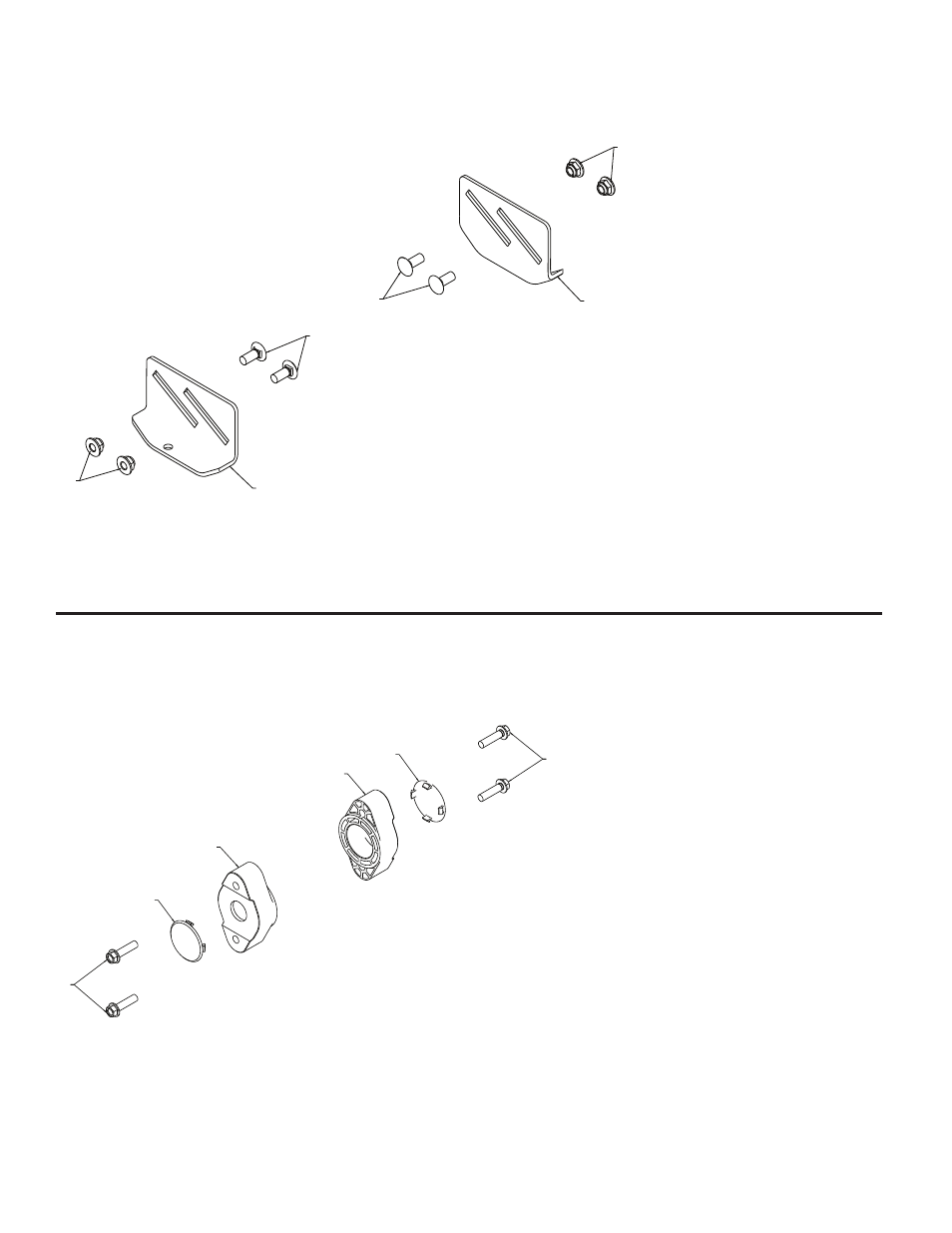

REPAIR PARTS SNOW THROWER - MODEL 961940009 (96194000906)
AUGER HOUSING / IMPELLER ASSEMBLY
1
1
2
3
2 3
01.07.024-B
1 532 42 04-78 AUGER BEARING
2 532 41 19-39 BEARING PLUG
3 532 17 95-82 SCREW 5/16−18 X 1.00
1
2
3
3
4
4
01.11.001-C
1 532 18 40-93 SKID PLATE LH
2 532 18 40-94 SKID PLATE RH
3 872 27 05-06 CARRIAGE BOLT 5/16−18 X .75
4 532 42 79-42 NUT 5/16−18
