NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
3 (5x)
4 (5x)
01.07.003-A
KEY PART
NO. NO. DESCRIPTION

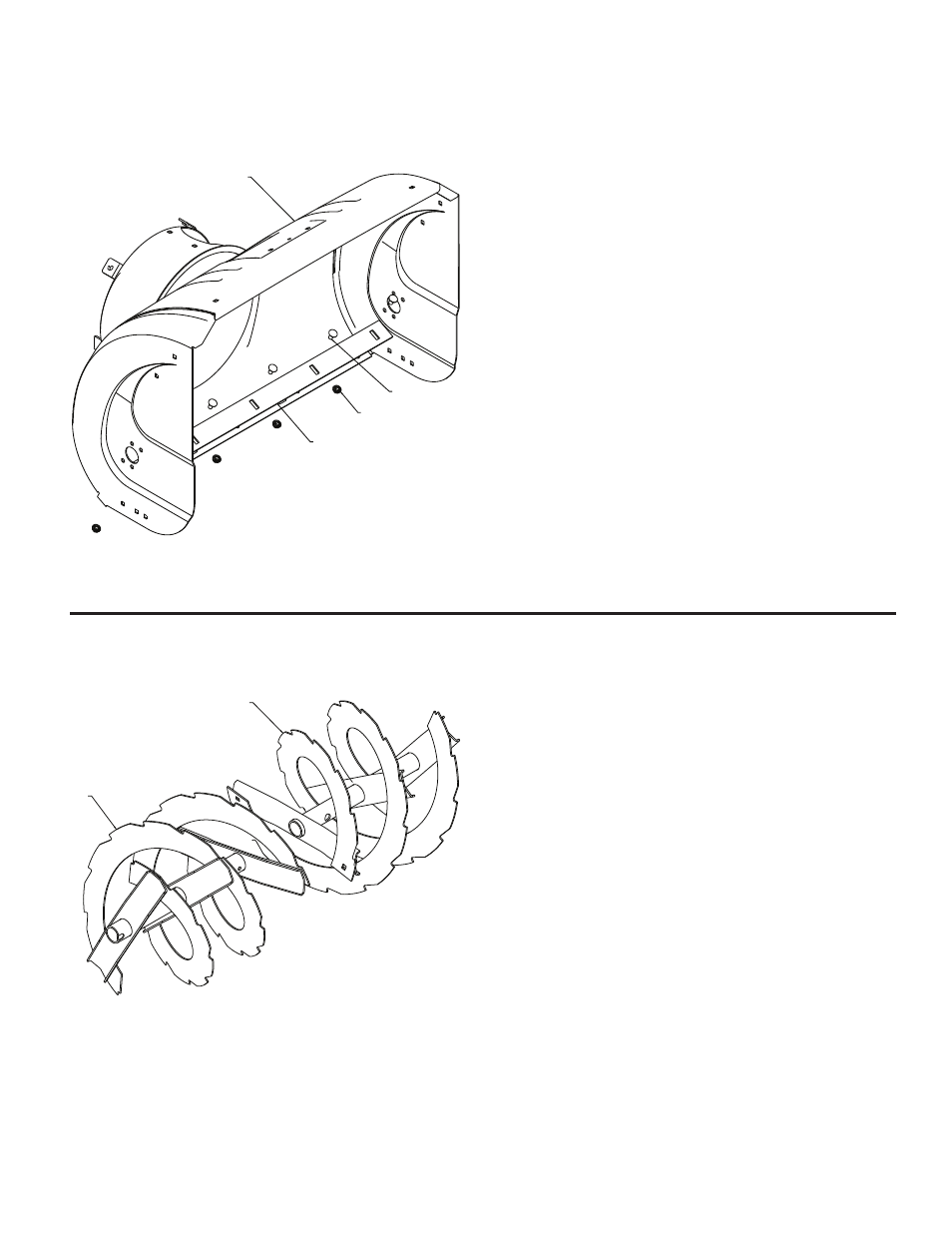

REPAIR PARTS SNOW THROWER - MODEL 961940009 (96194000906)AUGER
HOUSING / IMPELLER ASSEMBLY
1
2
01.07.019-A
KEY PART
NO. NO. DESCRIPTION
1 532 44 47-62 AUGER HOUSING
2 532 40 76-45 SCRAPPER BAR
3 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
4 532 15 53-77 NUT 5/16−18
1 532 42 11-24 AUGER ASSEMBLY 30 LH
2 532 42 11-25 AUGER ASSEMBLY 30 RH
