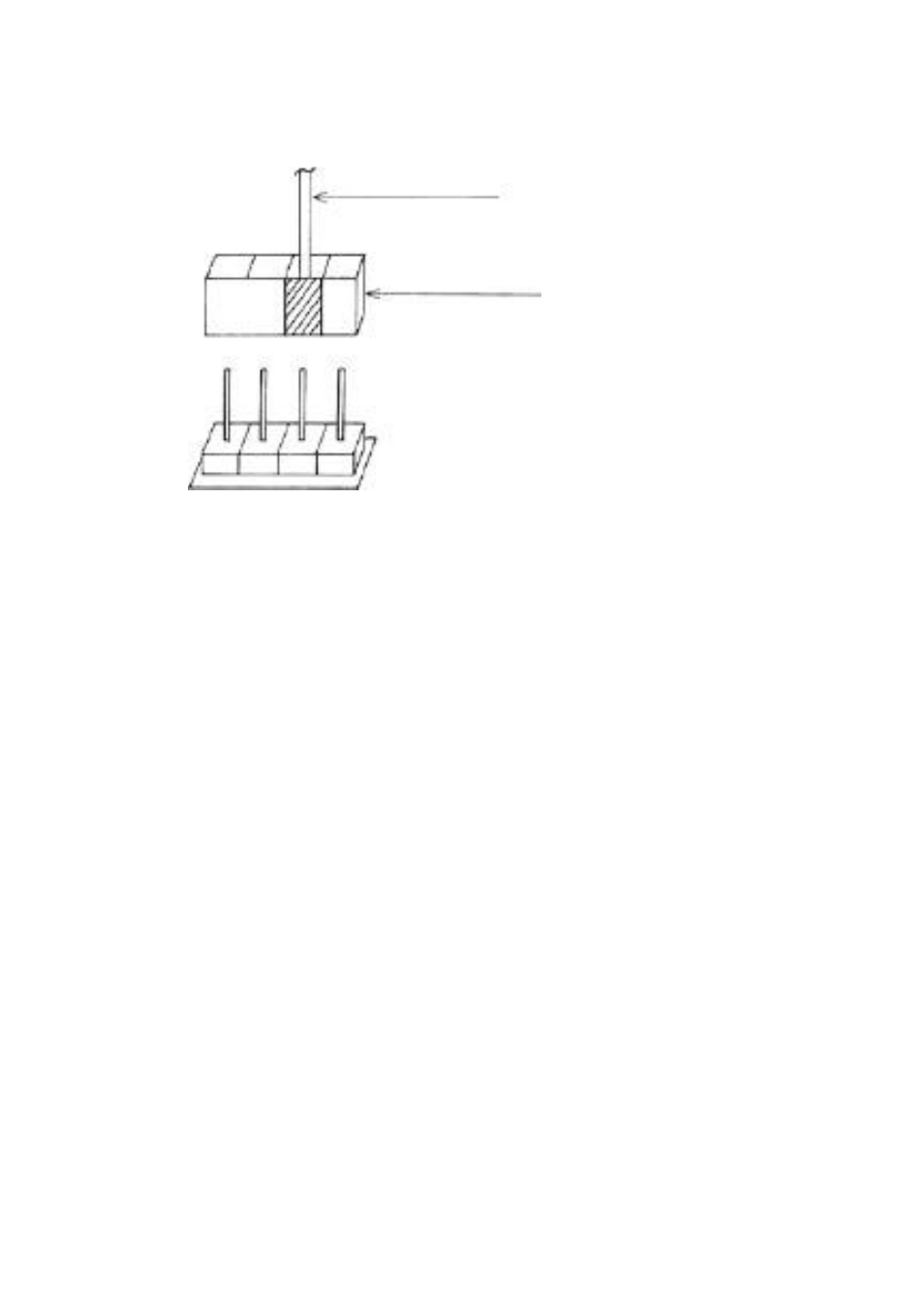

FIG. 4
5
Plug the end of the connecting cable with the six pin plug into
the mating six pin socket on the RGB-IIB module.
6
Route the connecting through a convenient opening in the rear
‘
of the computer cabinet close to the module, and plug the eight
pin end of the cable into the mating connector on the RGB-
vision monitor.
7
Set the monitor mode selector-switch to the “II” position.
8
Recheck each installation operation (step 2 through 7) before
processing further.
9
Replace the computer cover and turn ON the A.C. power to
both the computer and the monitor.
10
Adjust the RGBvision monitor to obtain a satisfactory picture
(refer to OWNER’S GUIDE).
11
If there appears any abnormality in the quality of the video
display, recheck steps 2, 3, 4 & 9, particularly watching for cold
solder Joints and dirty contacts. If the display is still not satis-
factory, return the RGB-IIB module and the monitor to the
dealer from whom they were purchased.
VIDEO CORD
4P PLUG
CONNECT THE VIDEO CORD
TO THE VIDEO PIN
