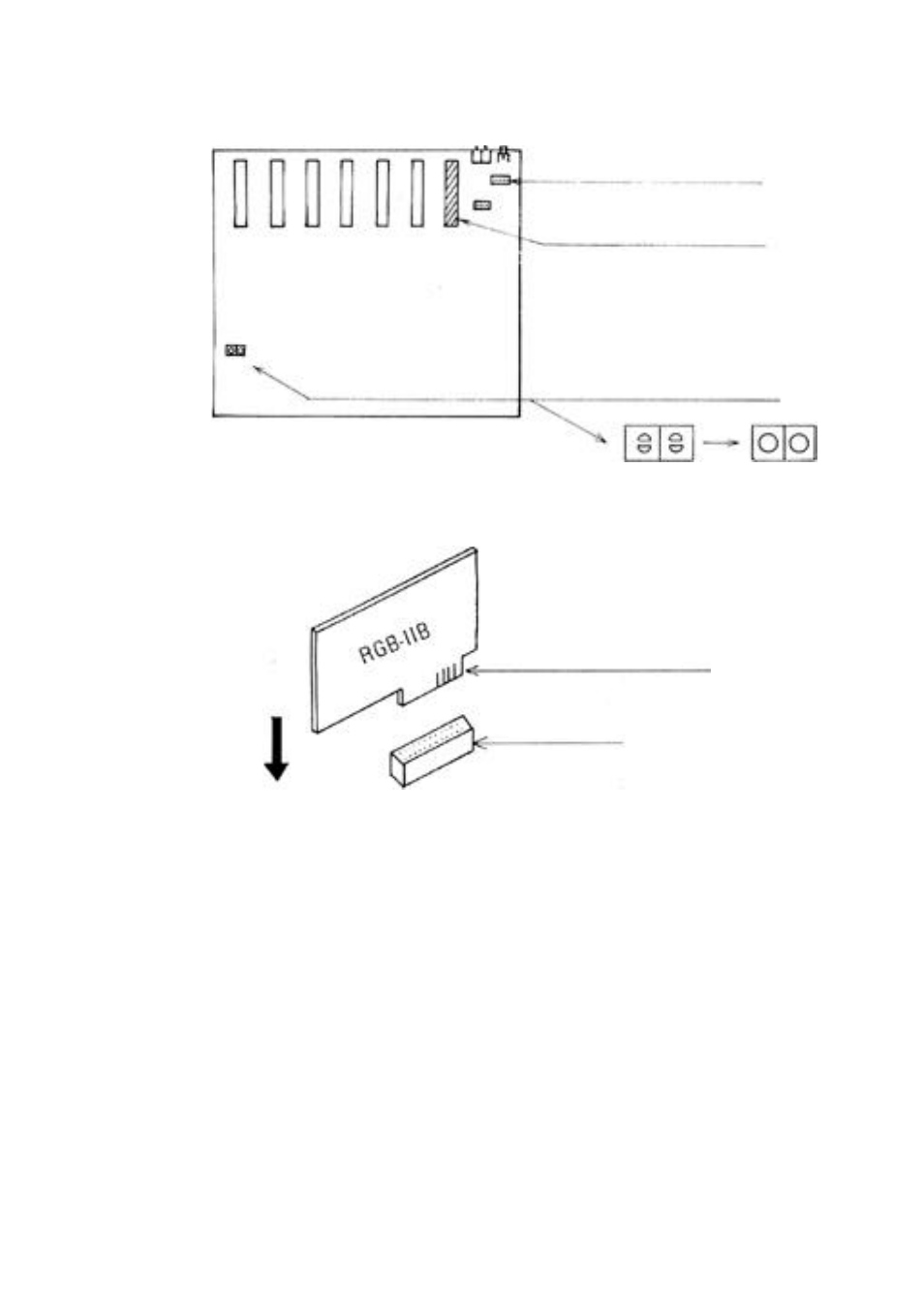

FIG. 2
FIG. 3
4
Locate the video output connector on the rear of t h e c o m p u t e r cabinet. D i r e c t l y i n
front of this connector is a short row of electrical components, and then a row of
four vertical pins which are located nearest to the video jack. Connect the video
cord from the RGB-IIB module to the second pin from the right end of this row, as
shown in Fig. 4. Connect the end of video cord with the four pin plug of RGB-IIB
to the video pin of the APPLE-IIPLUS computer.
WARNING
It is very important that step 4 be followed exactly. Connecting the RGB-IIB video
cord to any other pin in this row may damage the computer, the RGB-IIB or both.
VIDEO PIN (SEE FIG. 4)
SLOT 7 (SEE FIG. 3)
7.8 JUMPER SOLDERED
APPLE-II MOTHER BOARD
THE PCB TYPE
CONNECTOR
SLOT 7
